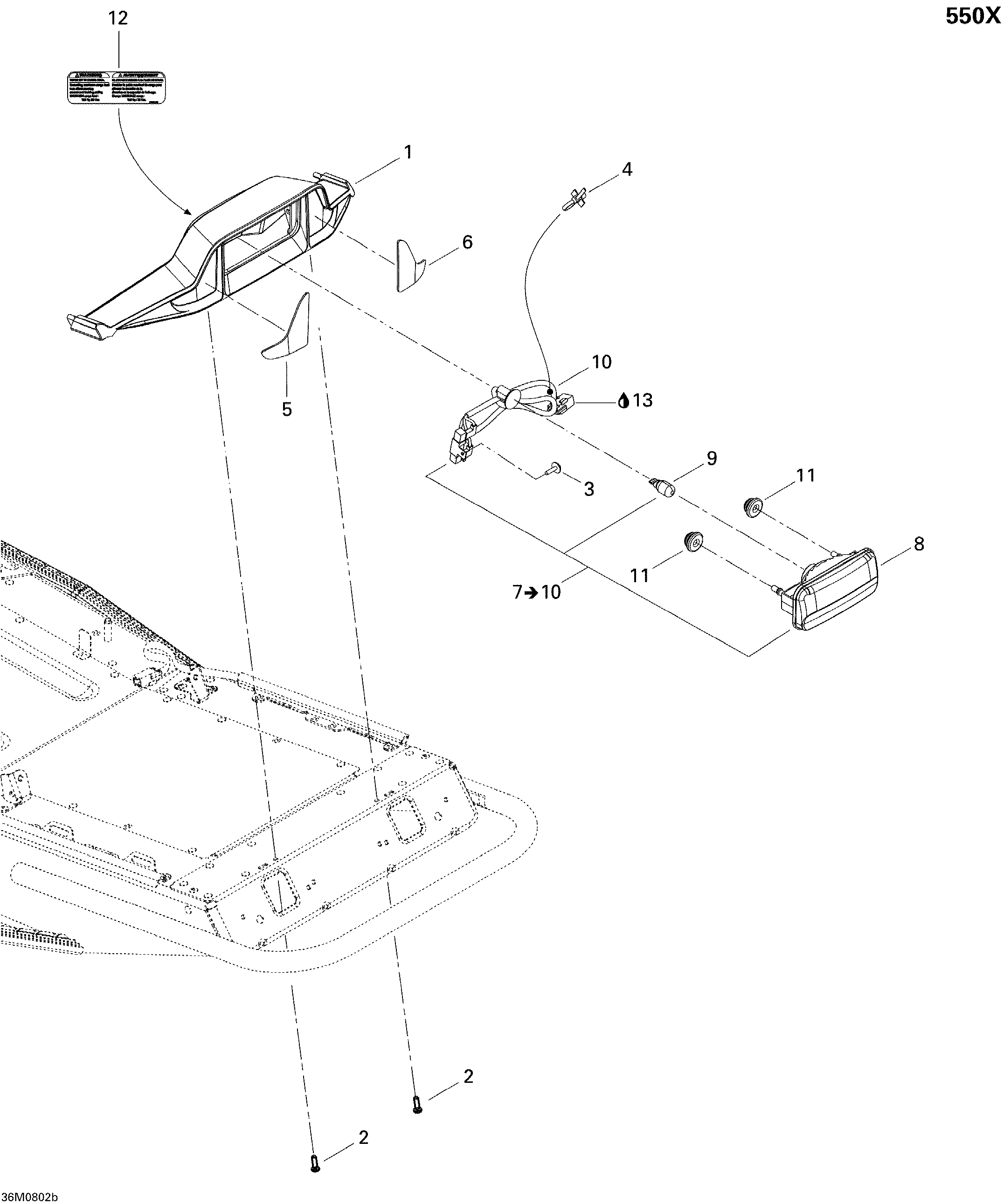

09- Luggage Rack 550X для BRP Ski-Doo MX Z 550X - 2008
-
№АртикулНазвание
-
1511000511 Light SupportLight Support
-
2250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
3250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
4293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
5511000459 Rear ReflectorRear Reflector
-
6511000460 Rear ReflectorRear Reflector
-
7511000507 Rear light Ass'y. Includes 7 to 10Rear light Ass'y. Includes 7 to 10
-
8710000652 Rear Lens BoxRear Lens Box
-
9710000653 BulbBulb
-
10511000508 Wiring HarnessWiring Harness
-
11705001119 WasherWasher
-
12516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
