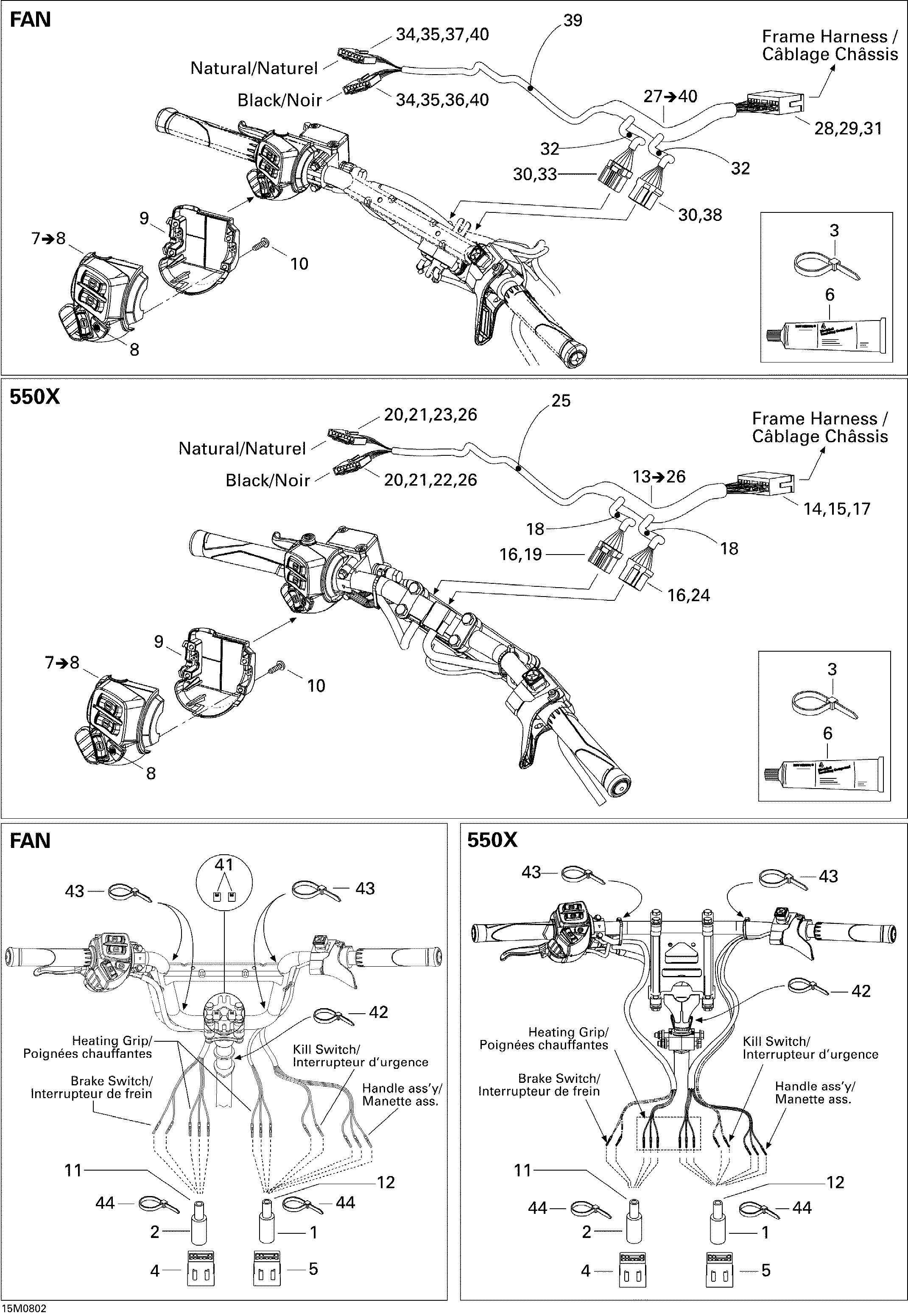

10- Steering Wiring Harness X для BRP Ski-Doo MX Z 550X - 2008
-
№АртикулНазвание
-
1515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
5515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7515176187 LH Switch Housing. Includes 7 to 8LH Switch Housing. Includes 7 to 8
-
8515176088 Start/RER ButtonStart/RER Button
-
9515175926 Housing Switch PlateHousing Switch Plate
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11409902200 Tubing 25 mmTubing 25 mm
-
12409902200 Tubing 25 mmTubing 25 mm
-
13515176310 Steering Wiring Harness. 550X, Includes 13 to 26Steering Wiring Harness. 550X, Includes 13 to 26
-
14515175232 Male Terminal. 550XMale Terminal. 550X
-
15515175273 Male Terminal. 550XMale Terminal. 550X
-
16515175231 Female Terminal. 550XFemale Terminal. 550X
-
17515175352 Male Terminal Housing, 13 Circuits. 550XMale Terminal Housing, 13 Circuits. 550X
-
18415079900 Tubing 10 mm. 550XTubing 10 mm. 550X
-
19515175543 Female Terminal Housing, 6 Circuits. 550XFemale Terminal Housing, 6 Circuits. 550X
-
20515175808 Female Terminal. 550XFemale Terminal. 550X
-
21515175809 Femelle Lock, 8 Circuits. 550XFemelle Lock, 8 Circuits. 550X
-
22515175807 Female Terminal Housing, 8 Circuits. 550XFemale Terminal Housing, 8 Circuits. 550X
-
23515175810 Female Terminal Housing, 8 Circuits. 550XFemale Terminal Housing, 8 Circuits. 550X
-
24515175819 Female Terminal Housing, 8 Circuits. 550XFemale Terminal Housing, 8 Circuits. 550X
-
25515175830 Low Temperature Tubing 1/2''. 550XLow Temperature Tubing 1/2''. 550X
-
26515175941 Female Terminal. 550XFemale Terminal. 550X
-
42293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
