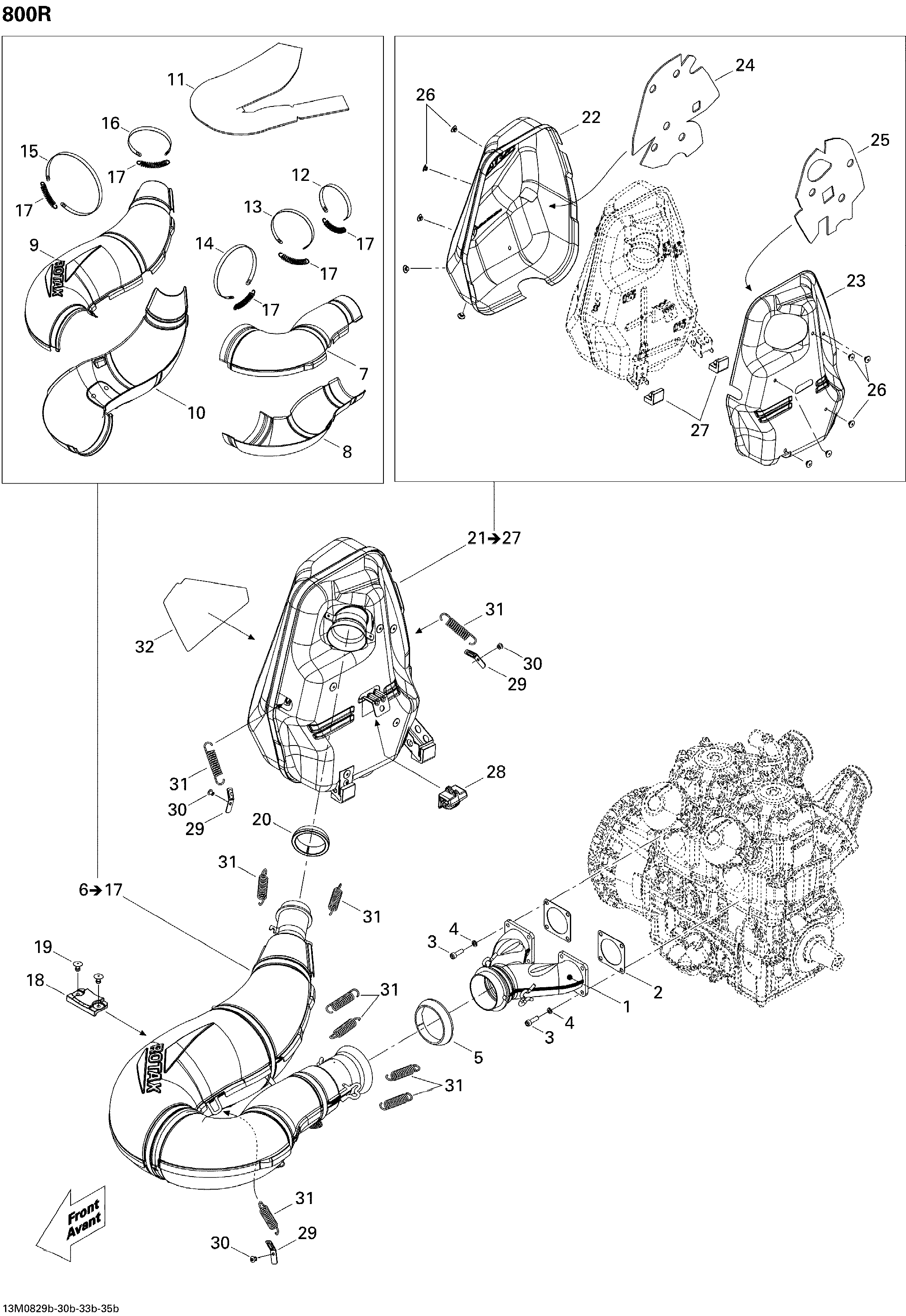

01- Exhaust System 800R для BRP Ski-Doo MX Z ADRENALINE 800R - 2008
-
№АртикулНазвание
-
1420673370 Exhaust ManifoldExhaust Manifold
-
2420430480 GasketGasket
-
3514054047 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
4514053953 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054438 Tuned Pipe Ass'y. Includes 6 to 17Tuned Pipe Ass'y. Includes 6 to 17
-
7514054219 Front Upper Half EnvelopeFront Upper Half Envelope
-
8514054220 Front Lower Half EnvelopeFront Lower Half Envelope
-
9514054435 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054273 Insulating WoolInsulating Wool
-
12514053536 Retaining StrapRetaining Strap
-
13514054408 Retaining StrapRetaining Strap
-
14514054409 Retaining StrapRetaining Strap
-
15514054410 Retaining StrapRetaining Strap
-
16514053499 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514054275 BumperBumper
-
19293150103 Pop RivetPop Rivet
-
20514054174 Exhaust GasketExhaust Gasket
-
21514054441 Muffler Ass'y. Includes 21 to 27Muffler Ass'y. Includes 21 to 27
-
22514054433 RH DeflectorRH Deflector
-
23514054202 LH DeflectorLH Deflector
-
24514054298 RH Insulating WoolRH Insulating Wool
-
25514054299 LH Insulating WoolLH Insulating Wool
-
26390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
27514054274 Lower StopperLower Stopper
-
28514054282 Upper StopperUpper Stopper
-
29514054391 Spring BracketSpring Bracket
-
30390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
31514054226 SpringSpring
-
32514054488 Reflective SheetReflective Sheet
