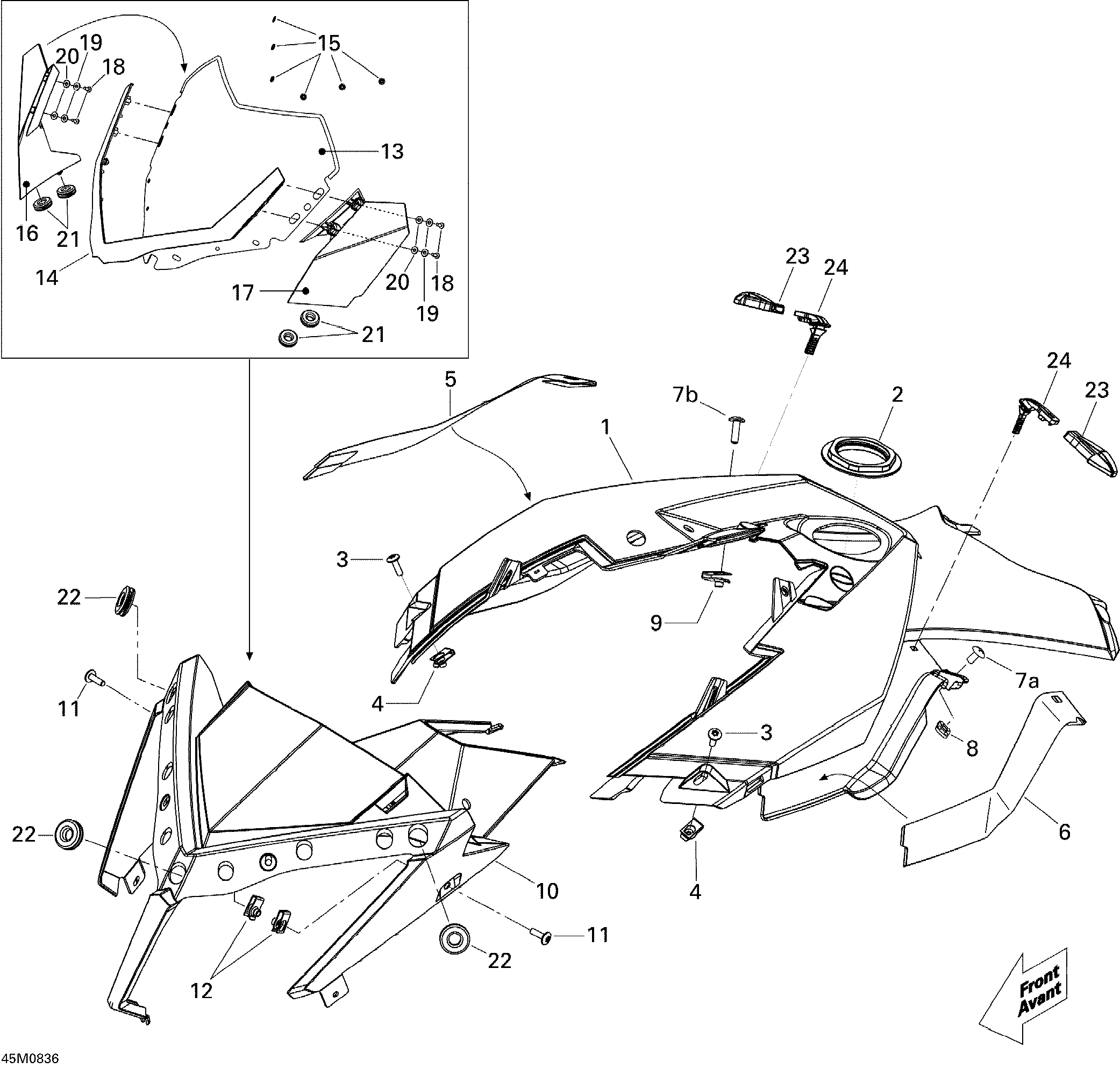

09- Windshield And Console 800R для BRP Ski-Doo MX Z ADRENALINE 800R - 2008
![](/wa-data/public/shop/sheme/bombardier/ski-doo/462e42ab-bcd2-423a-8982-27b6d7723ab3.png)
-
№АртикулНазвание
-
1517303602 Console, Yellow. 800R, Yellow/ Lava Grey ModelConsole, Yellow. 800R, Yellow/ Lava Grey Model
-
1517303923 Console, Black. 800R, Black/ Lava Grey ModelConsole, Black. 800R, Black/ Lava Grey Model
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5517304103 RH DecalRH Decal
-
6517304104 LH DecalLH Decal
-
7A250000353 Phillips Screw M8 X 12Phillips Screw M8 X 12
-
7b250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8250100106 Weld Nut M6Weld Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13517303608 Medium WindshieldMedium Windshield
-
14517303607 Windshield SupportWindshield Support
-
15732610072 Push NutPush Nut
-
16517303604 RH Air DeflectorRH Air Deflector
-
17517303605 LH Air DeflectorLH Air Deflector
-
18250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
19250200025 Washer M5Washer M5
-
20250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
21517303756 GrommetGrommet
-
22517303756 GrommetGrommet
-
23517303980 End Piece, Grey VolcanoEnd Piece, Grey Volcano
-
24517303981 Panel LatchPanel Latch
