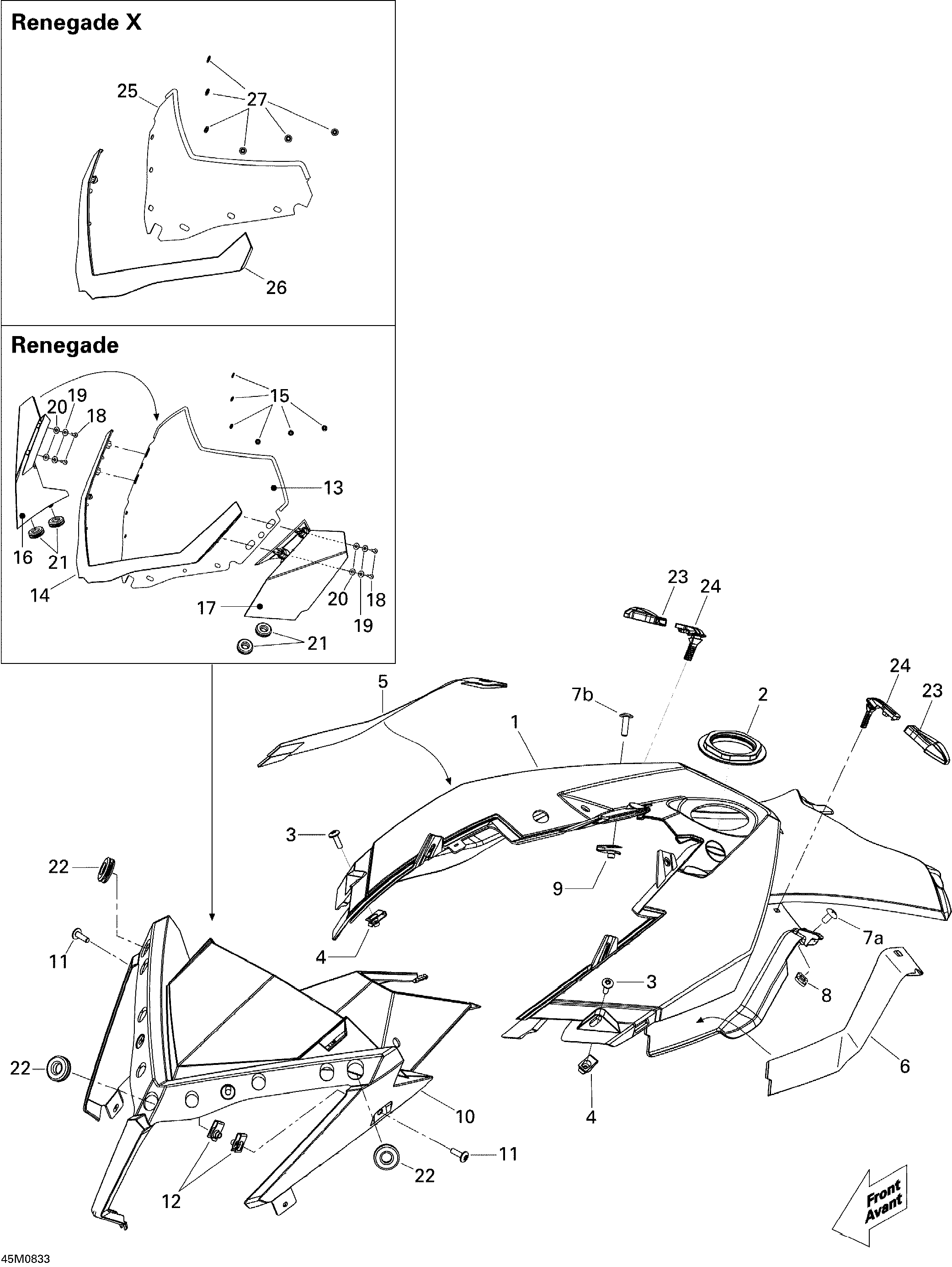

09- Windshield And Console 600HO REN X для BRP Ski-Doo MX Z RENEGADE X 600 HO SDI - 2008
-
№АртикулНазвание
-
1517303778 Console, Yellow. 600HO SDI, Renegade XConsole, Yellow. 600HO SDI, Renegade X
-
1517303922 Console, Black. 600HO SDI, Renegade XConsole, Black. 600HO SDI, Renegade X
-
2517302575 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5517304103 RH DecalRH Decal
-
6517304104 LH DecalLH Decal
-
7A250000353 Phillips Screw M8 X 12Phillips Screw M8 X 12
-
7b250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8250100106 Weld Nut M6Weld Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22517303756 GrommetGrommet
-
23517303980 End Piece, Grey VolcanoEnd Piece, Grey Volcano
-
23517303978 End Piece, YellowEnd Piece, Yellow
-
24517303981 Panel LatchPanel Latch
-
25517303621 Windshield. Renegade XWindshield. Renegade X
-
26517303757 Windshield Support. Renegade XWindshield Support. Renegade X
-
27732610072 Push Nut. Renegade XPush Nut. Renegade X
