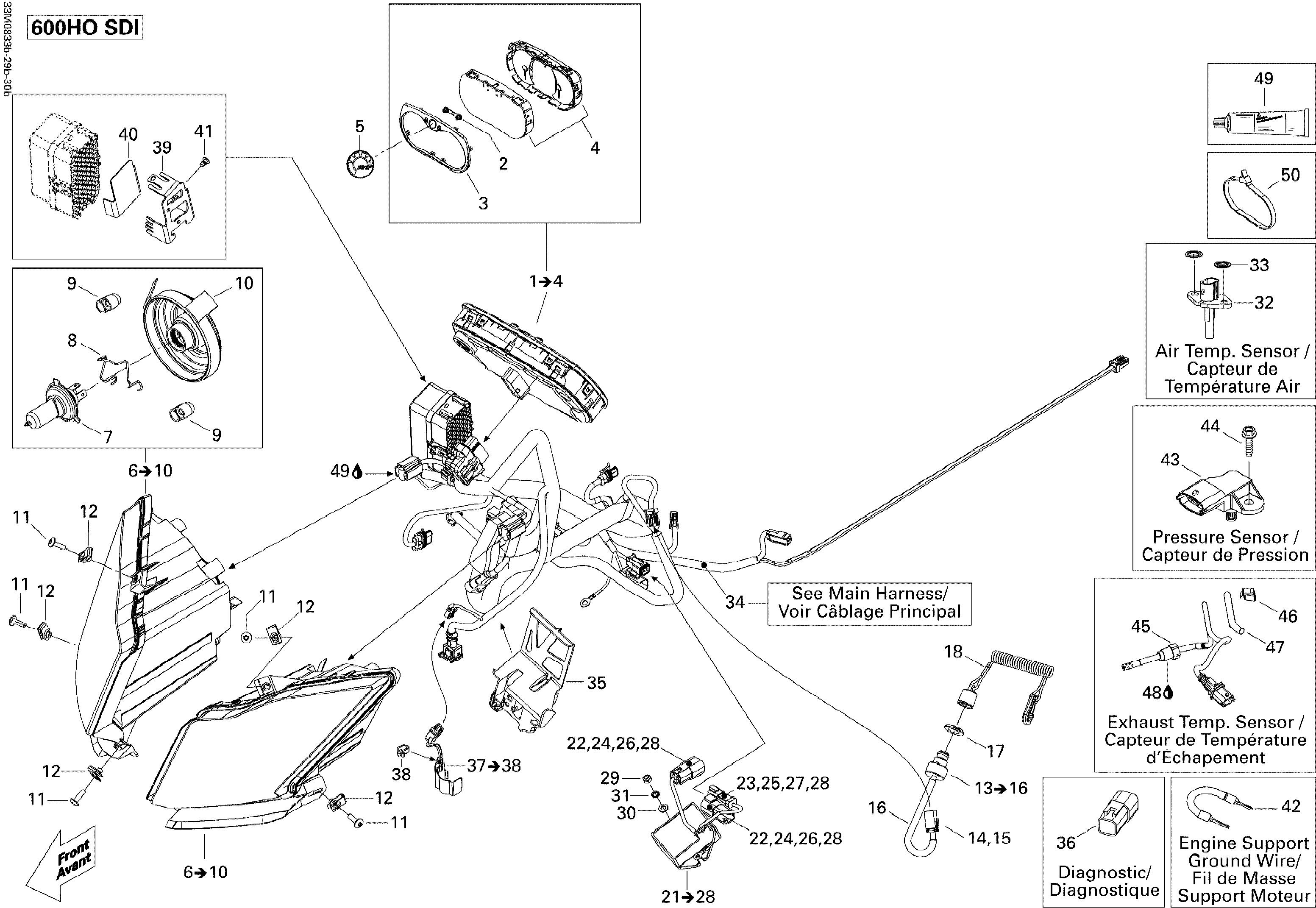

10- Electrical System 600HO REN X для BRP Ski-Doo MX Z RENEGADE X 600 HO SDI - 2008
-
№АртикулНазвание
-
1515176706 Speedometer Ass'y. Renegade X, Includes 1 to 4Speedometer Ass'y. Renegade X, Includes 1 to 4
-
2415129347 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6515176362 RH Headlamp. Includes 6 to 10RH Headlamp. Includes 6 to 10
-
6515176363 LH Headlamp. Includes 6 to 10LH Headlamp. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515175797 Dess Switch. Includes 13 to 16Dess Switch. Includes 13 to 16
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176461 DESS CapDESS Cap
-
21515176243 Voltage Regulator. Includes 21 to 28Voltage Regulator. Includes 21 to 28
-
22278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
23278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
24515175568 Male TerminalMale Terminal
-
25278000631 Male TerminalMale Terminal
-
26278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
27278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
28293000052 Sealing CapSealing Cap
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30234061410 Flat Washer 6 mmFlat Washer 6 mm
-
31234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
32515176366 Air Temperature SensorAir Temperature Sensor
-
33389804300 Push NutPush Nut
-
34515176603 Main Harness Ass'yMain Harness Ass'y
-
35515176513 SupportSupport
-
36278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
37515176653 Heater Element Support Ass'y. Includes 37 to 38Heater Element Support Ass'y. Includes 37 to 38
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
39515176514 Fuse HolderFuse Holder
-
40515176637 ProtectorProtector
-
41390909200 Avex RivetAvex Rivet
-
42515176358 Ground WireGround Wire
-
43420874650 Pressure/Temp. SensorPressure/Temp. Sensor
-
44250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
45515176490 Temperature SensorTemperature Sensor
-
46414227300 ClipClip
-
47515175442 Tubing 6 mmTubing 6 mm
-
48293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
49293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
50293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
50293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
50293750008 Tie-Rap 350 mmTie-Rap 350 mm
