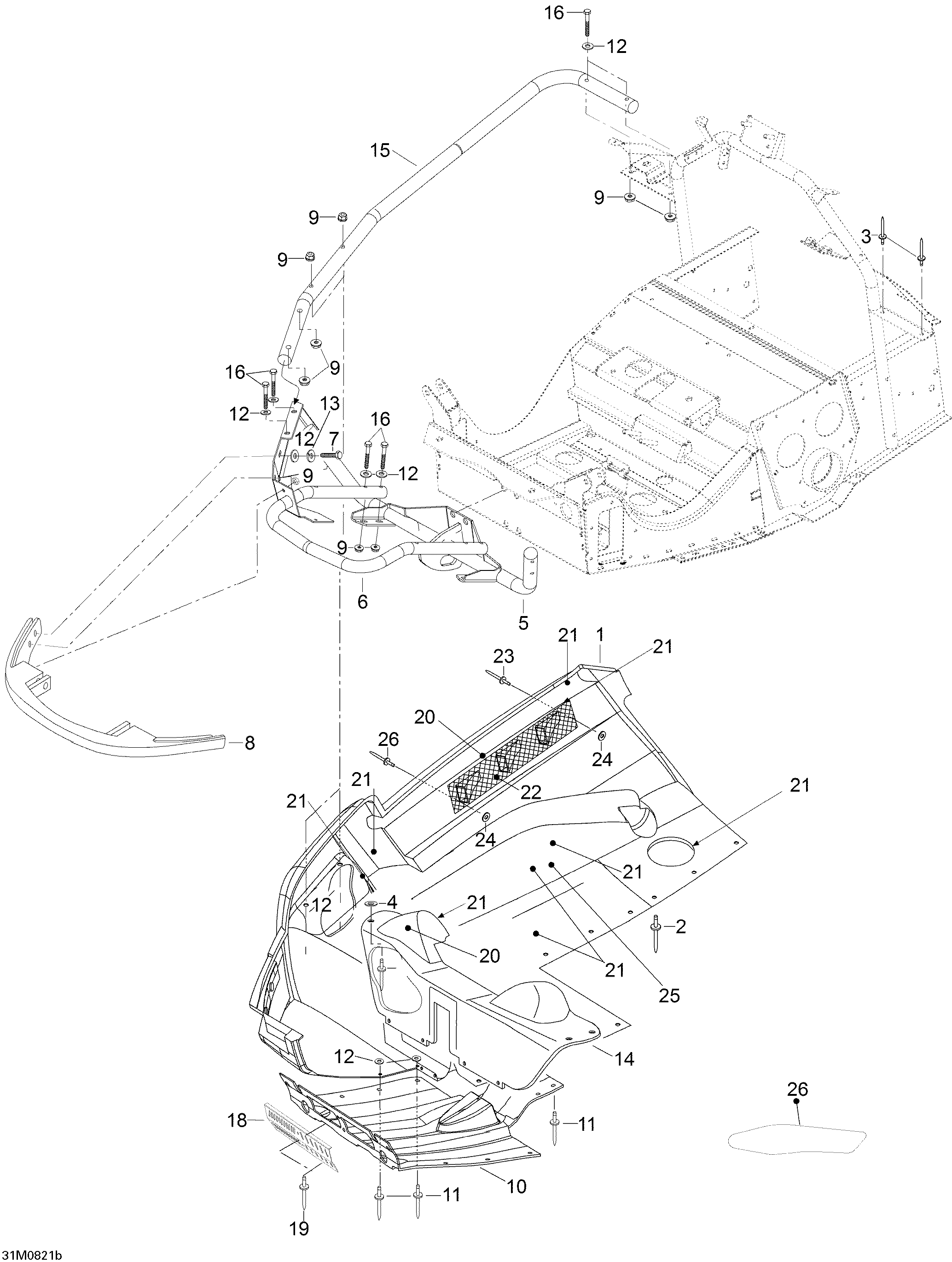

09- Bottom Pan 600HO SDI для BRP Ski-Doo Skandic SUV 600HO SDI - 2008
-
№АртикулНазвание
-
1605155339 Bottom Pan Ass'y, RHBottom Pan Ass'y, RH
-
1605155679 Bottom Pan Ass'y, LHBottom Pan Ass'y, LH
-
2M36037 RivetRivet
-
3M36108 RivetRivet
-
4M20008 Washer 5 mmWasher 5 mm
-
5605255398 Welded Front Bumper SupportWelded Front Bumper Support
-
6605351509 Bumper FrontBumper Front
-
7207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
8502006719 Bumper, BlackBumper, Black
-
9M33200 Nut M6Nut M6
-
10605154930 Central Front Pottom PanCentral Front Pottom Pan
-
11M36072 RivetRivet
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13234161471 Lock Washer M6, BlackLock Washer M6, Black
-
14605355607 Bottom Cover ShockBottom Cover Shock
-
15605255395 Side BumperSide Bumper
-
16207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
18605255513 Front GrillFront Grill
-
19M36071 RivetRivet
-
20M44001 Reflective SheetReflective Sheet
-
21619690002 Isolation SheetIsolation Sheet
-
22605354968 RH Side GrillRH Side Grill
-
22605354969 LH Side GrillLH Side Grill
-
23M36009 RivetRivet
-
24M20008 Washer 5 mmWasher 5 mm
-
25605354904 Isolation Sheet 450x100Isolation Sheet 450x100
-
26605355681 Bottom Isolation LHBottom Isolation LH
