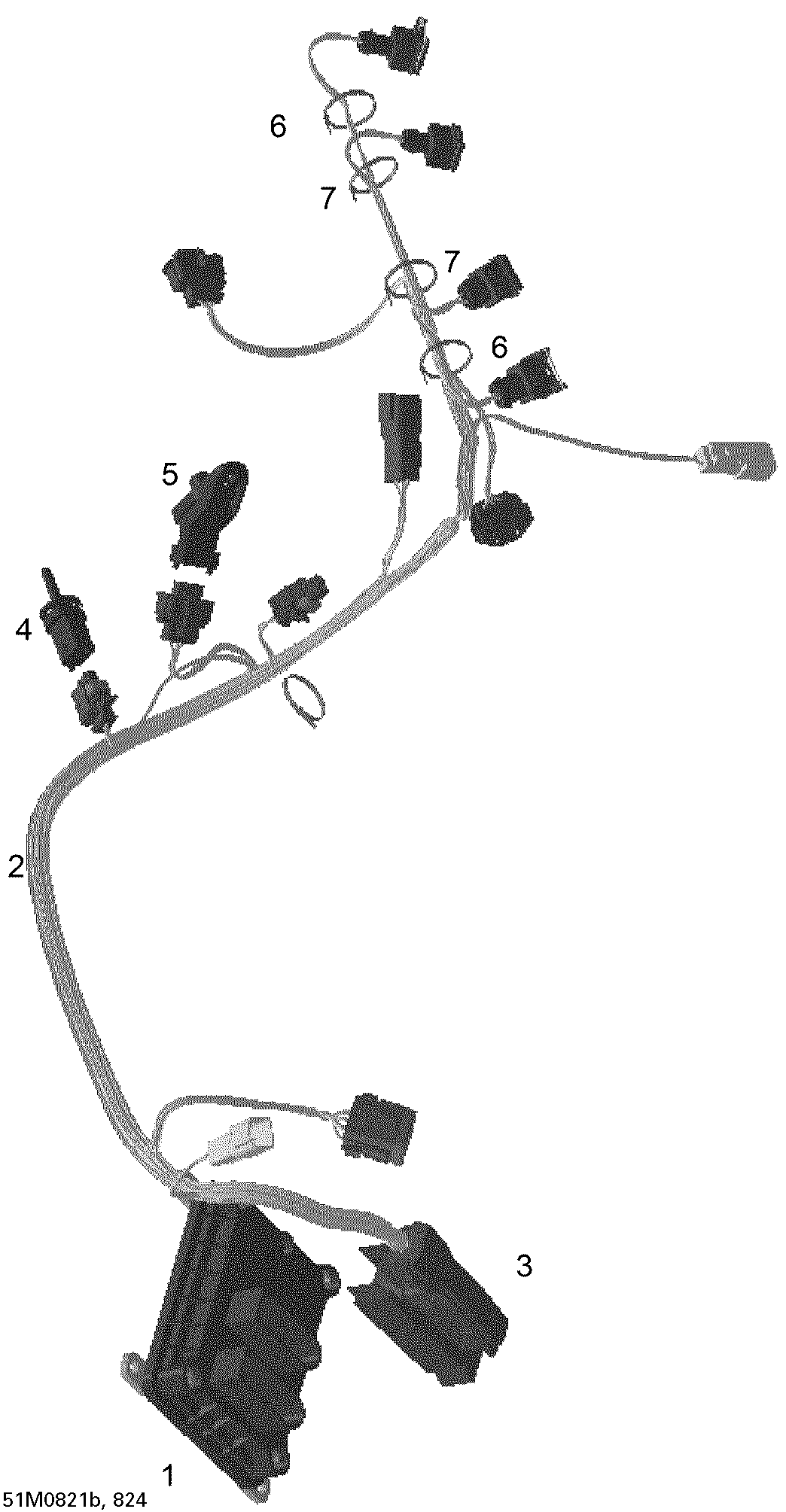

10- Engine Harness And Electronic Module 600HO SDI для BRP Ski-Doo Skandic SUV 600HO SDI - 2008
-
№АртикулНазвание
-
1420665820 Electronic BoxElectronic Box
-
2420664318 Wiring Harness Ass'yWiring Harness Ass'y
-
3420664450 ECM ConnectorECM Connector
-
4420966970 Temperature SensorTemperature Sensor
-
5420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
6420866714 Tie RapTie Rap
-
7420866716 Tie-RapTie-Rap
