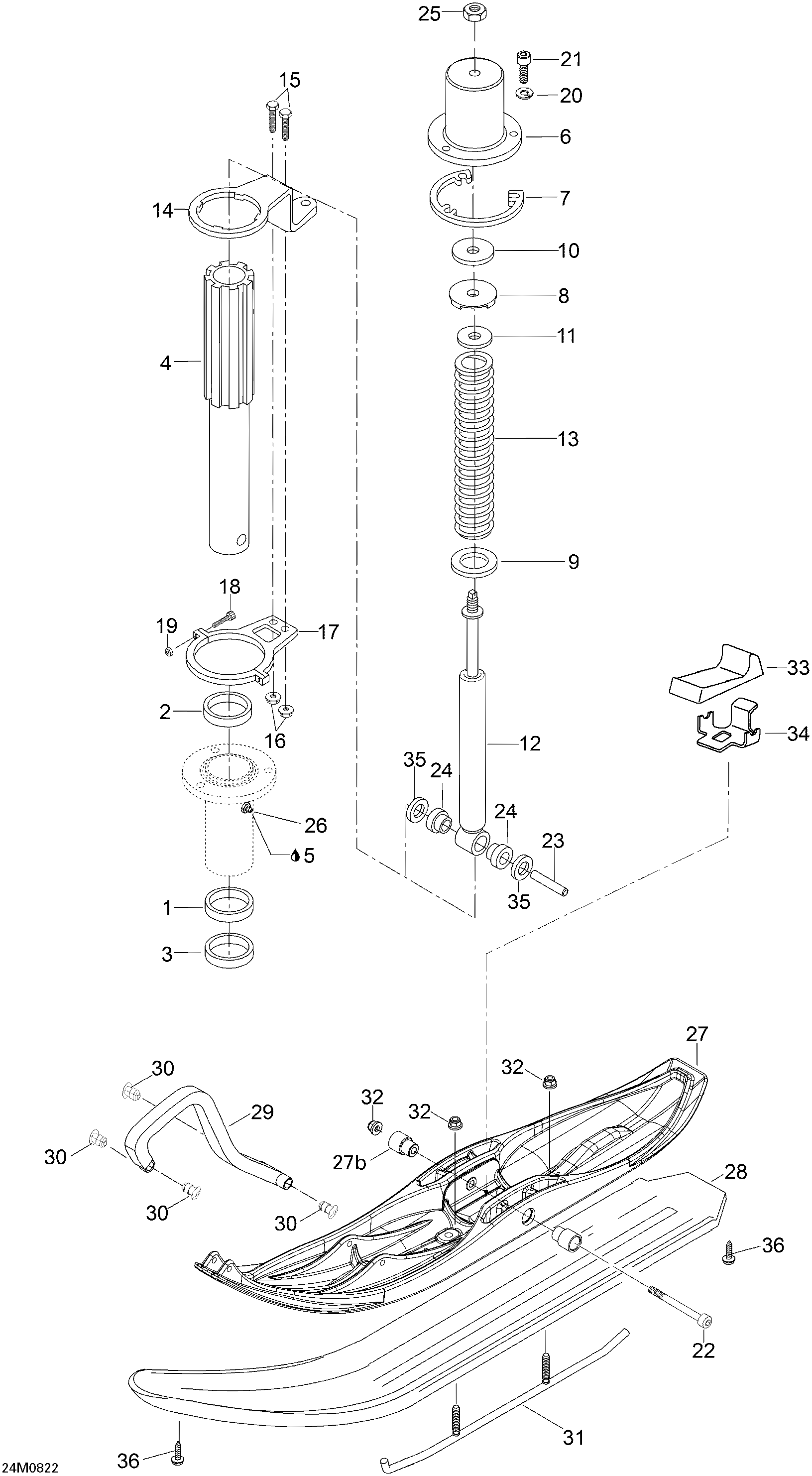

07- Front Suspension And Ski SWT 550F для BRP Ski-Doo Skandic SWT 550F - 2008
-
№АртикулНазвание
-
1414803200 Lower CushionLower Cushion
-
2414803100 Upper CushionUpper Cushion
-
3M316373 Oil SealOil Seal
-
4M5245362 Ski LegSki Leg
-
5219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
6605249284 Painted CoverPainted Cover
-
7503145600 SpacerSpacer
-
8605354835 Rubber BumberRubber Bumber
-
9M549493 WasherWasher
-
10M5440399 WasherWasher
-
11M549492 PlatePlate
-
12505070920 ShockShock
-
13M5241330 SpringSpring
-
14605353422 RH Ski LegRH Ski Leg
-
14605353423 LH Ski LegLH Ski Leg
-
15207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
16M33200 Nut M6Nut M6
-
17M5344180 Support Ass'ySupport Ass'y
-
18M40146 ScrewScrew
-
19232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
22M40225 Hex. Screw M10 X 140Hex. Screw M10 X 140
-
23605348921 SpacerSpacer
-
24572034500 CushionCushion
-
25233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
26M34019 Grease FittingGrease Fitting
-
27605153775 Plastic Ski Ass'y. Includes 27 to 28Plastic Ski Ass'y. Includes 27 to 28
-
28605153964 Ski LinerSki Liner
-
29505070963 Handle, BlackHandle, Black
-
30505071812 RetainerRetainer
-
31605352643 Carbide KitCarbide Kit
-
32M33074 NutNut
-
33605348439 Rubber StopperRubber Stopper
-
34605348437 Plate SupportPlate Support
-
35605448594 BushingBushing
-
36605640019 Plastofast Screw 6x18Plastofast Screw 6x18
