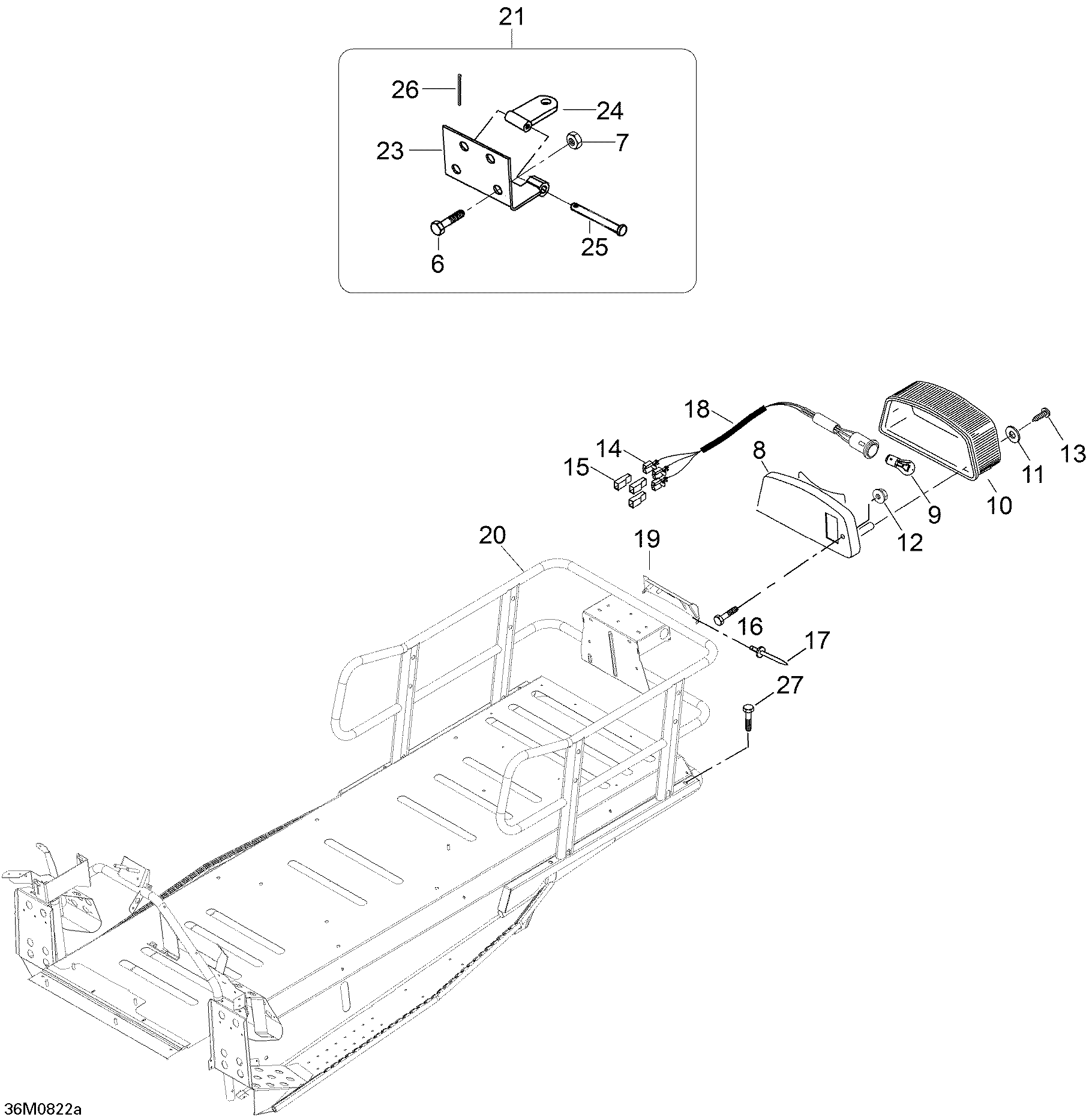

09- Luggage Rack SWT 550F для BRP Ski-Doo Skandic SWT 550F - 2008
-
№АртикулНазвание
-
6207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
7232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
8515175397 Lamp HousingLamp Housing
-
9410504100 Tail Light BulbTail Light Bulb
-
10414513700 LensLens
-
11414516400 WasherWasher
-
12M33200 Nut M6Nut M6
-
13209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
14M42178 Female TerminalFemale Terminal
-
15M42179 Female HousingFemale Housing
-
16207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
18605354685 Rear Lamp HarnessRear Lamp Harness
-
19605351510 SpacerSpacer
-
20605254575 Welded RackWelded Rack
-
23M5344151 PlatePlate
-
24M548745 Hitch PlateHitch Plate
-
25560309200 Pin-RetainerPin-Retainer
-
26M41031 PinPin
-
27M40316 ScrewScrew
