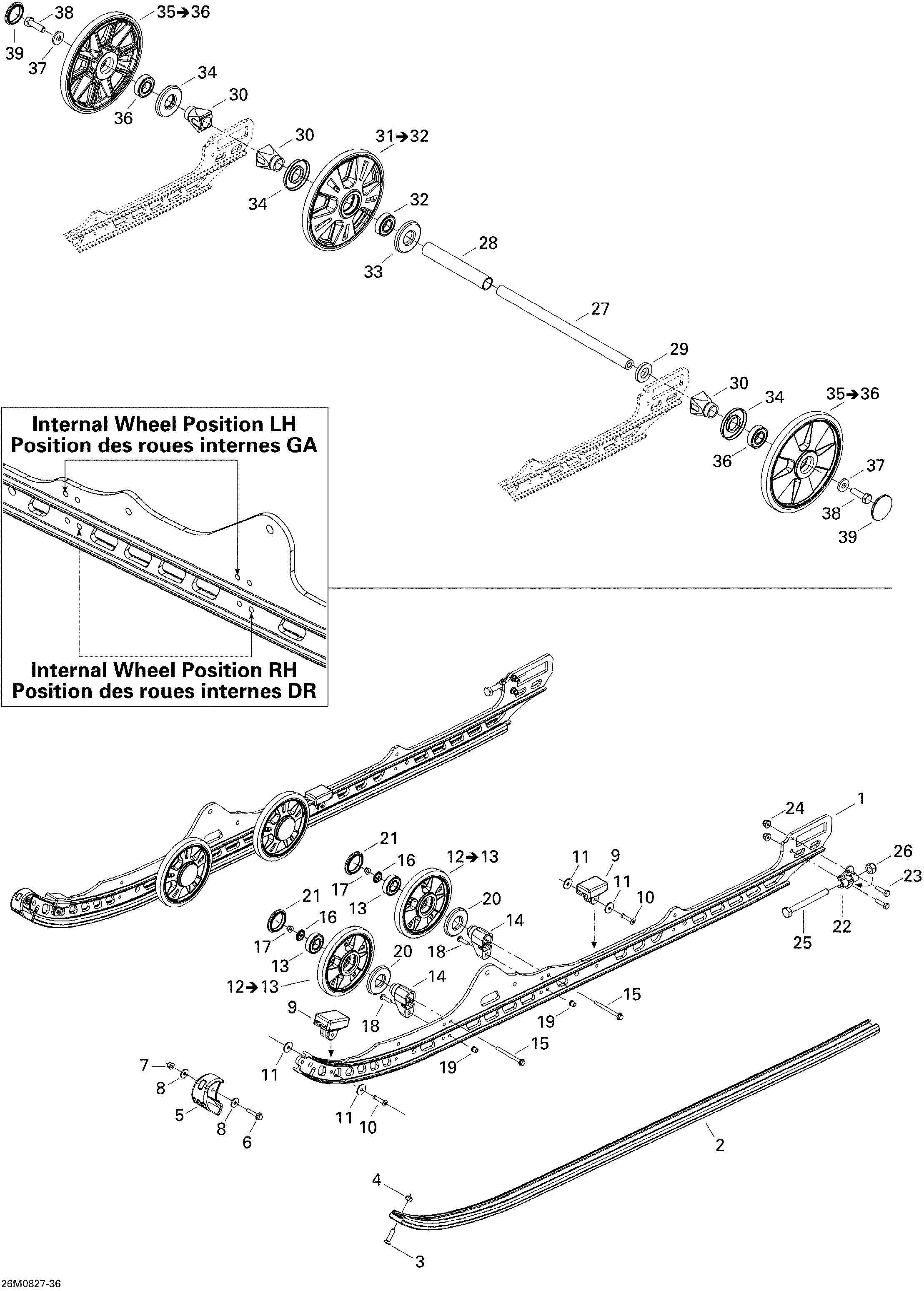

08- Rear Suspension для BRP Ski-Doo Summit EVEREST 800R - 2008
-
№АртикулНазвание
-
1503191196 Runner. Track 154''Runner. Track 154''
-
1503191495 Runner. Track 146''Runner. Track 146''
-
2503191198 Slider Shoe 154''. Track 154''Slider Shoe 154''. Track 154''
-
2503191499 Slider Shoe 146''. Track 146''Slider Shoe 146''. Track 146''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191755 Wheel 152. Includes 12 to 13Wheel 152. Includes 12 to 13
-
13503190396 Ball BearingBall Bearing
-
14503191833 SupportSupport
-
15207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
16503191820 Wheel Cup M6Wheel Cup M6
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20503190434 Labyrinth SealLabyrinth Seal
-
21570063600 Wheel CapWheel Cap
-
22503190380 TensionerTensioner
-
23207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
26233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
27503190429 Rear AxleRear Axle
-
28503190430 Rear Long SpacerRear Long Spacer
-
29503190432 WasherWasher
-
30503190428 Rear Wheel SpacerRear Wheel Spacer
-
31503191877 Wheel 200. Includes 31 to 32Wheel 200. Includes 31 to 32
-
32503190396 Ball BearingBall Bearing
-
33503190682 Labyrinth SealLabyrinth Seal
-
34503190434 Labyrinth SealLabyrinth Seal
-
35503191741 Wheel 200. Includes 35 to 36Wheel 200. Includes 35 to 36
-
36503190396 Ball BearingBall Bearing
-
37503190439 WasherWasher
-
38250000019 Hex. Screw With NylonHex. Screw With Nylon
-
39570063600 Wheel CapWheel Cap
