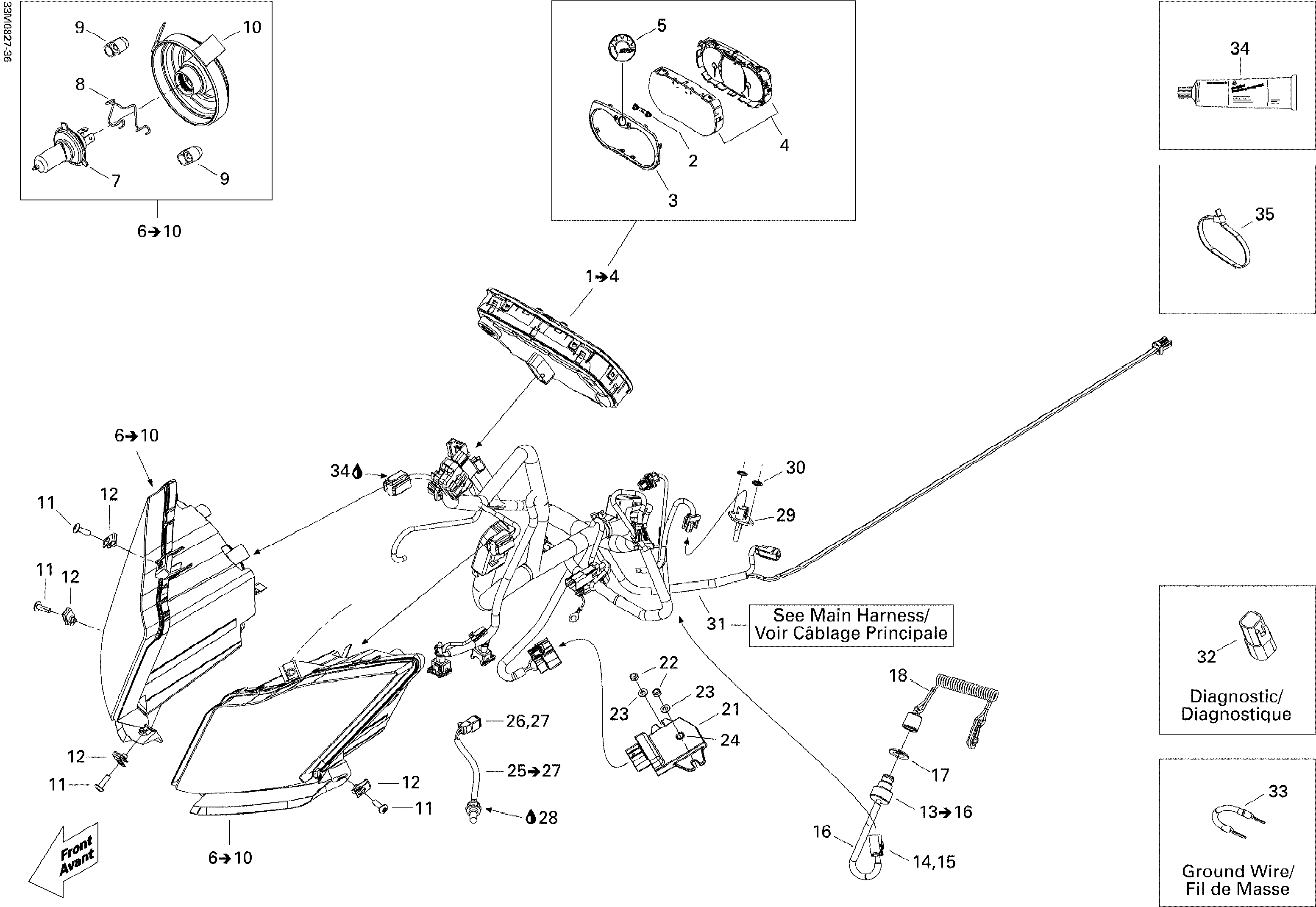

10- Electrical System для BRP Ski-Doo Summit EVEREST 800R - 2008
-
№АртикулНазвание
-
1515176665 Speedometer Ass'y. Includes 1 to 4Speedometer Ass'y. Includes 1 to 4
-
2415129347 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6515176362 RH HeadlampRH Headlamp
-
6515176363 LH HeadlampLH Headlamp
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515175797 Dess Switch. Includes 13 to 16Dess Switch. Includes 13 to 16
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing, 12 mmTubing, 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176461 DESS CapDESS Cap
-
21515176364 Voltage RegulatorVoltage Regulator
-
22232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23234061410 Flat Washer 6 mmFlat Washer 6 mm
-
24234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25515176398 Temperature Sensor. Includes 25 to 27Temperature Sensor. Includes 25 to 27
-
26515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
27278000632 Female TerminalFemale Terminal
-
28293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
29515176366 Temperature Air SensorTemperature Air Sensor
-
30389804300 Push NutPush Nut
-
31515176598 Main Harness Ass'yMain Harness Ass'y
-
32278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
33515176358 Ground WireGround Wire
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35293750002 Tie-Rap 130 mmTie-Rap 130 mm
