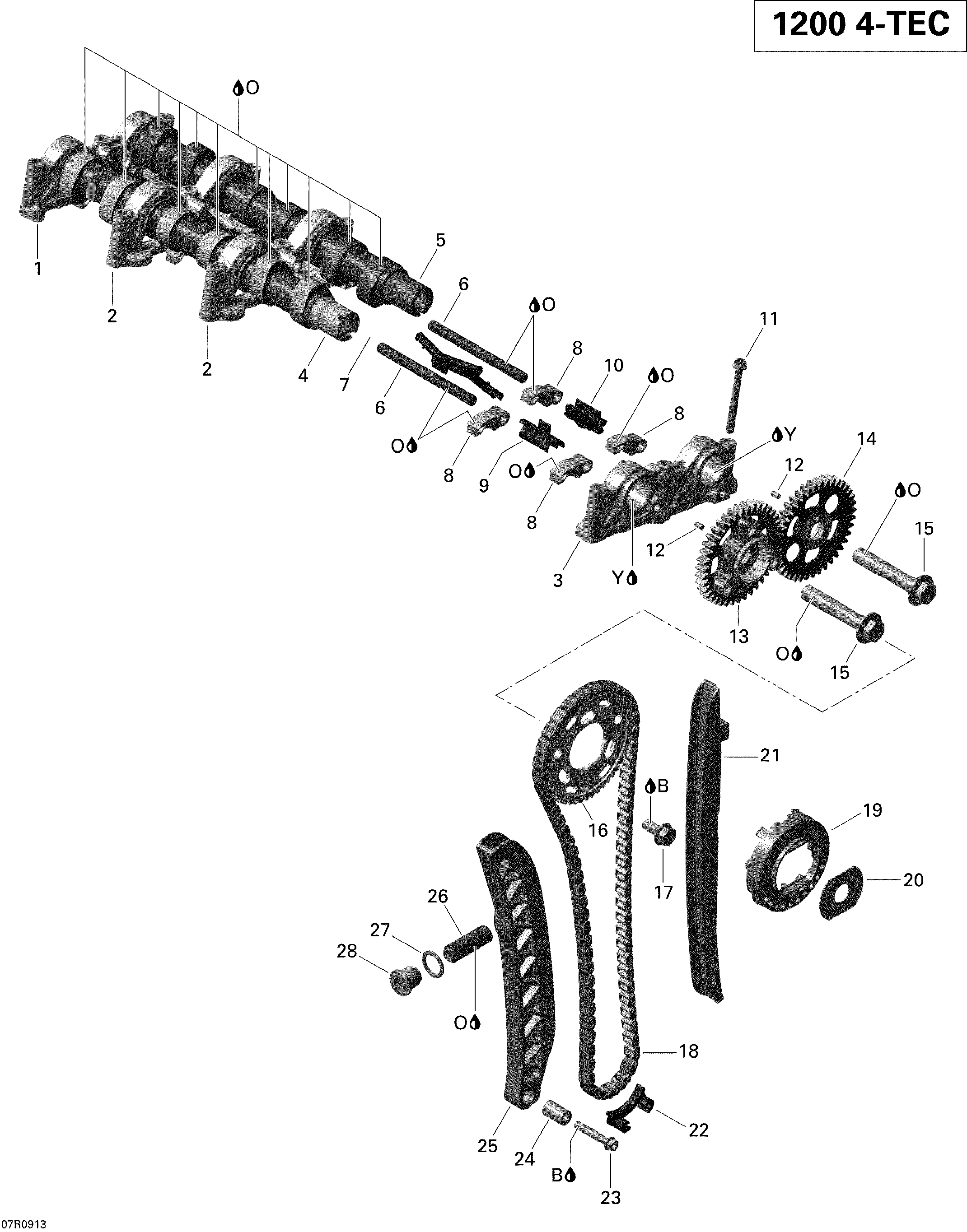

01- Camshaft And Timing Chain для BRP Ski-Doo GTX LE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1420910200 Camshaft SupportCamshaft Support
-
2420910202 Camshaft SupportCamshaft Support
-
3420910205 Camshaft SupportCamshaft Support
-
4420620850 Camshaft, IntakeCamshaft, Intake
-
5420620840 Camshaft, ExhaustCamshaft, Exhaust
-
6420254730 Swing Arm ShaftSwing Arm Shaft
-
7420956060 Oil Distribution DeviceOil Distribution Device
-
8420254722 Finger FollowerFinger Follower
-
9420460680 Spacer, InteriorSpacer, Interior
-
10420460685 Spacer, ExteriorSpacer, Exterior
-
11420440702 Torx Flanged Screw M6 X 55Torx Flanged Screw M6 X 55
-
12420929600 Grooved PinGrooved Pin
-
13420834930 Drive Gear, 39 TeethDrive Gear, 39 Teeth
-
14420834935 Mating Gear, 39 TeethMating Gear, 39 Teeth
-
15420240780 Hex. Collar Screw M12 X 65Hex. Collar Screw M12 X 65
-
16420855070 Camshaft Sprocket, 48 TeethCamshaft Sprocket, 48 Teeth
-
17420441400 Hex. Screw M8 X 18Hex. Screw M8 X 18
-
18420898530 Camshaft ChainCamshaft Chain
-
19420460710 CoverCover
-
20420627494 Thrust WasherThrust Washer
-
21420936430 Chain GuideChain Guide
-
22420236355 Chain GuideChain Guide
-
23420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
24420247101 Distance SleeveDistance Sleeve
-
25420936490 Chain Tension GuideChain Tension Guide
-
26415129408 Chain TensionerChain Tensioner
-
27420430622 O-RingO-Ring
-
28420640455 Plug ScrewPlug Screw
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
