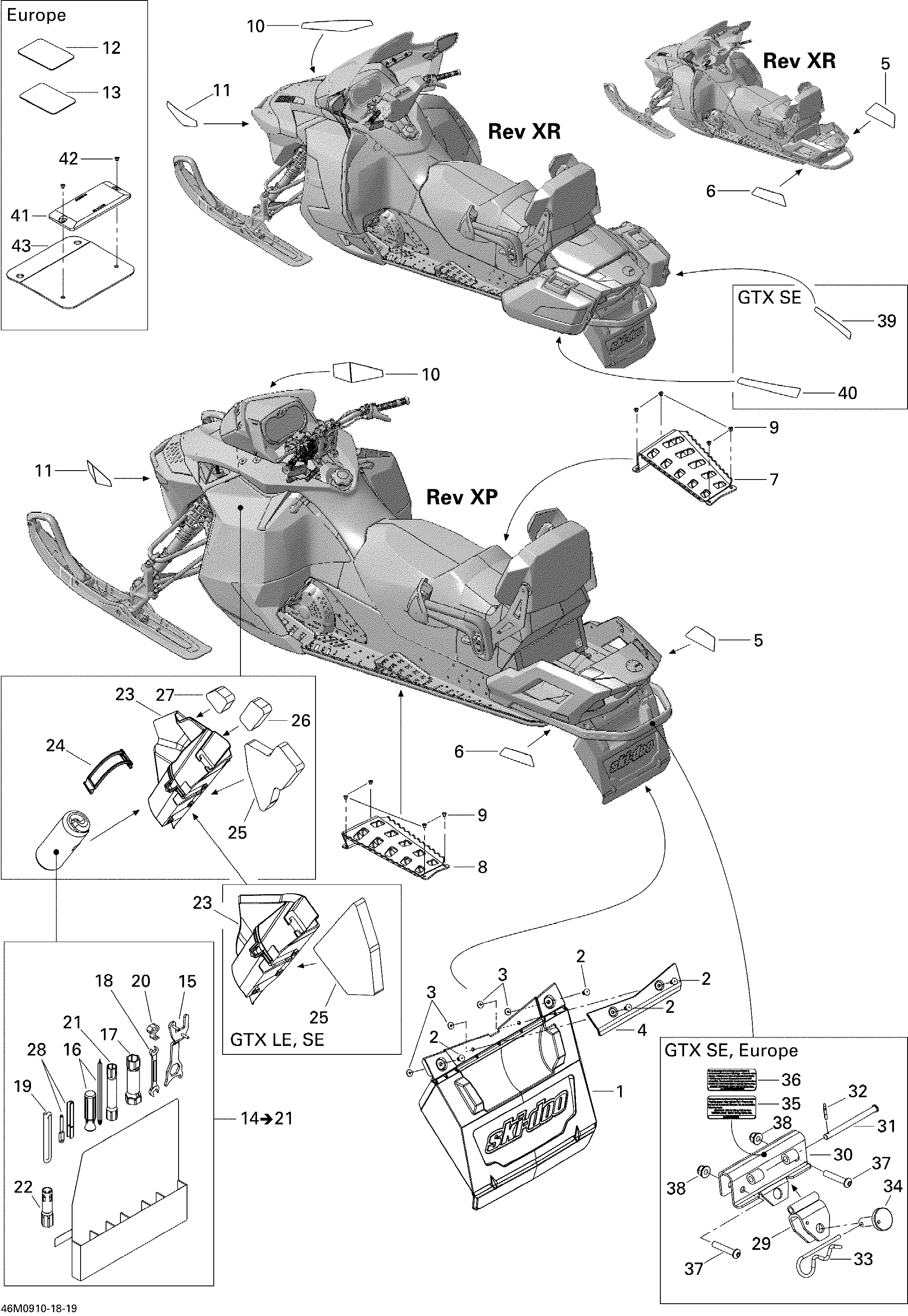

09- Utilities 1200 для BRP Ski-Doo GTX LE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4520000751 ReinforcementReinforcement
-
5520000729 RH Rear ReflectorRH Rear Reflector
-
6520000730 LH Rear ReflectorLH Rear Reflector
-
7520000887 RH FootrestRH Footrest
-
8520000888 LH FootrestLH Footrest
-
9390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
10520000759 RH Front Reflector. Rev XRRH Front Reflector. Rev XR
-
11520000760 LH Front Reflector. Rev XRLH Front Reflector. Rev XR
-
14520000841 Tool Kit. Includes 14 to 21Tool Kit. Includes 14 to 21
-
15520000721 WrenchWrench
-
16529000004 Driver ScrewDriver Screw
-
17529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
18529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
19412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
20529019400 Starter GripStarter Grip
-
21295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
23520000720 Tool Kit RackTool Kit Rack
-
24520000528 LatchLatch
-
28529035501 Spacing ToolSpacing Tool
