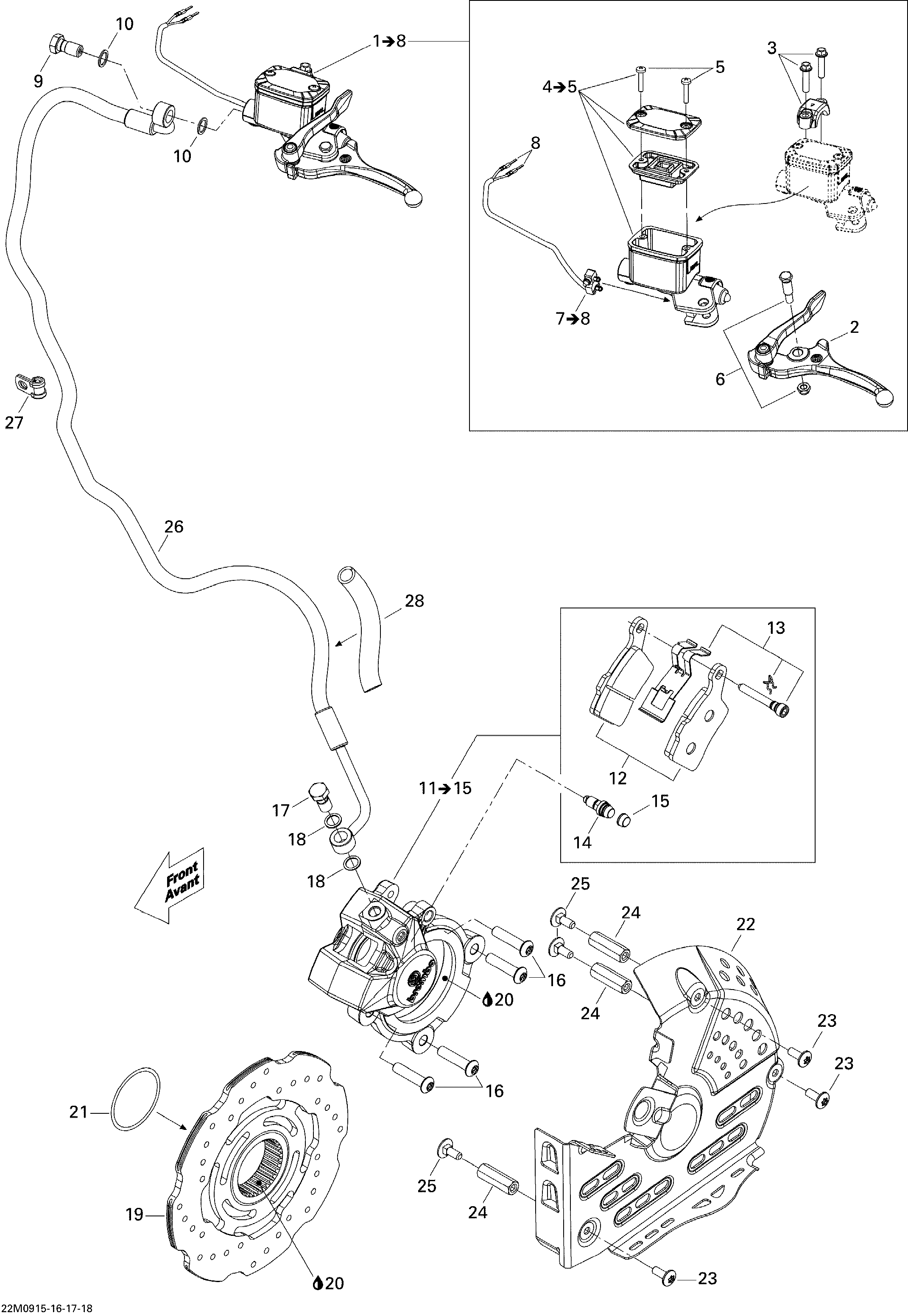

06- Hydraulic Brakes 600HO для BRP Ski-Doo GTX LE 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1507032432 Master Cylinder Ass'y. Includes 1 to 8Master Cylinder Ass'y. Includes 1 to 8
-
2507032476 LeverLever
-
3507032477 Clamp And Screw KitClamp And Screw Kit
-
4507032478 Reservoir Ass'y. Includes 4 to 5Reservoir Ass'y. Includes 4 to 5
-
5415129356 ScrewScrew
-
6415030000 Pin Ass'yPin Ass'y
-
7507032479 Microswitch. Includes 7 to 8Microswitch. Includes 7 to 8
-
8515175232 Male TerminalMale Terminal
-
9414920500 Banjo BoltBanjo Bolt
-
10414920600 WasherWasher
-
11507032498 Brake Caliper Ass'y. Includes 11 to 15Brake Caliper Ass'y. Includes 11 to 15
-
12507032473 Brake Pads KitBrake Pads Kit
-
13507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
14507032475 BleederBleeder
-
15414989700 BootBoot
-
16250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
17414920500 Banjo BoltBanjo Bolt
-
18414920600 WasherWasher
-
19507032487 DiskDisk
-
20293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
21293300134 O-RingO-Ring
-
22507032446 Disk ProtectorDisk Protector
-
23250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
24507032497 Threaded TubeThreaded Tube
-
25207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
26507032494 Brake HoseBrake Hose
-
27705600459 ClampClamp
-
28415079900 Tubing 10 mm. GTX LE 1200Tubing 10 mm. GTX LE 1200
