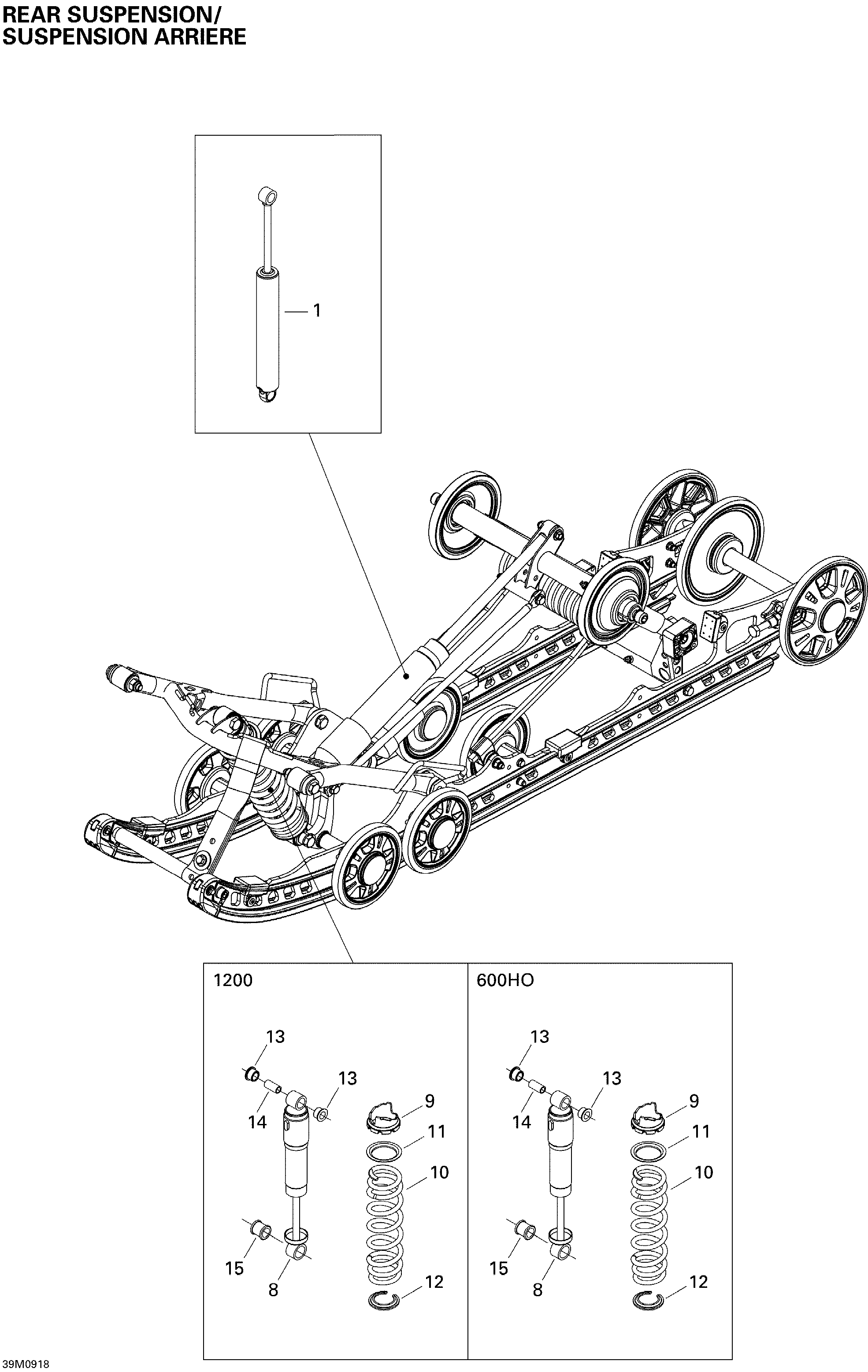

08- Rear Suspension Shocks 600HO для BRP Ski-Doo GTX LE 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1503191853 Rear ShockRear Shock
-
8503191758 Center Shock. 600HOCenter Shock. 600HO
-
9505070150 Adjustment CamAdjustment Cam
-
10503191329 Spring. 600HOSpring. 600HO
-
11503191872 Spring GuideSpring Guide
-
12503191535 Spring StopperSpring Stopper
-
13503189117 CushionCushion
-
14503189282 BushingBushing
-
15503189271 CushionCushion
