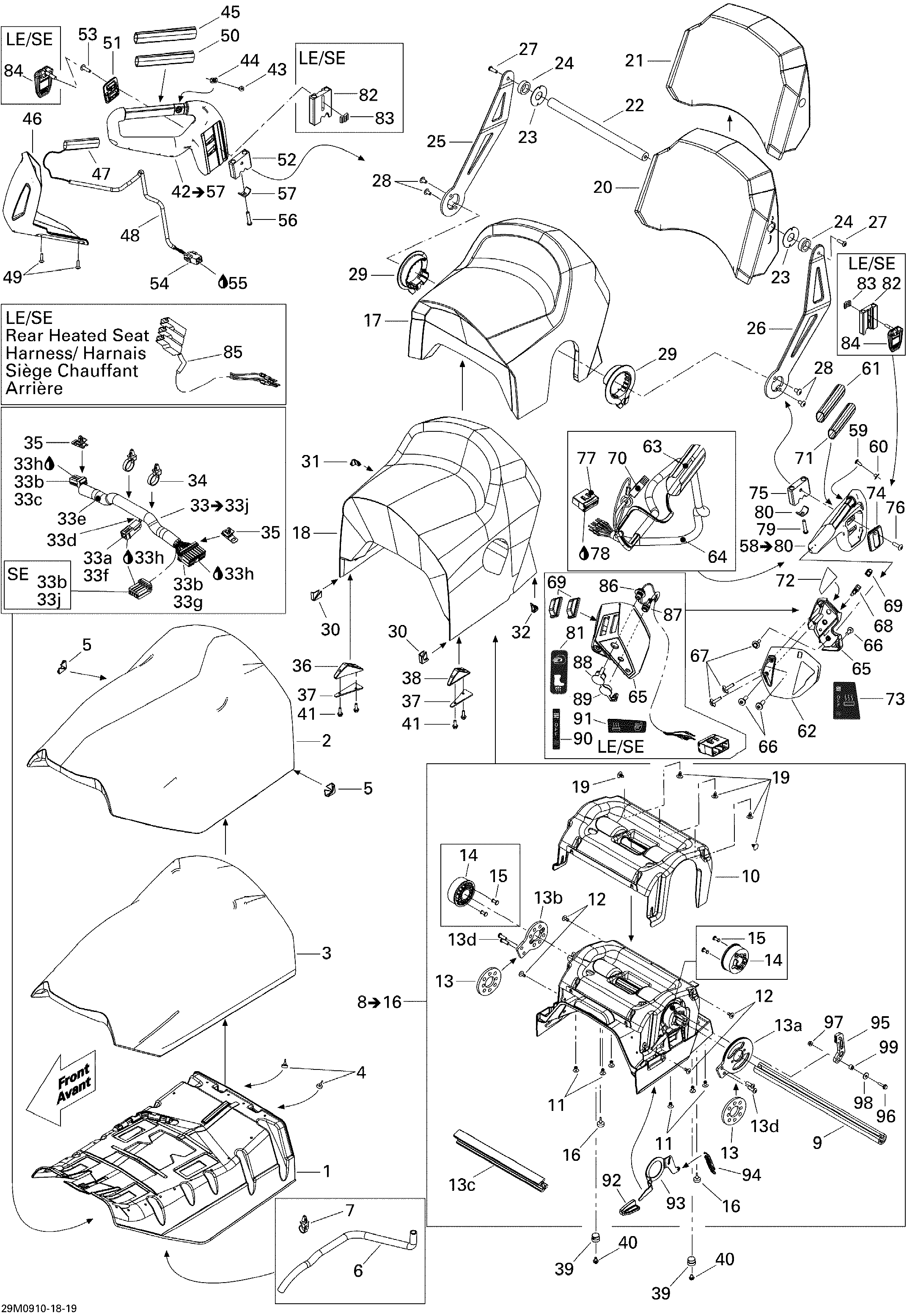

09- Seat для BRP Ski-Doo GTX Sport 500SS - 2009
-
№АртикулНазвание
-
1510004775 Front Seat BaseFront Seat Base
-
2510005064 Front Seat CoverFront Seat Cover
-
3510004777 Front Seat FoamFront Seat Foam
-
4708000125 Rubber StopperRubber Stopper
-
5510004963 Seat CornerSeat Corner
-
8510005060 Rear Seat Base Ass'y. Includes 8 to 16Rear Seat Base Ass'y. Includes 8 to 16
-
10510004423 Foam SupportFoam Support
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
13510004535 Link PlateLink Plate
-
14510004536 SpacerSpacer
-
15205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
16708000125 Rubber StopperRubber Stopper
-
17510005065 Rear Seat CoverRear Seat Cover
-
18510004791 Rear Seat FoamRear Seat Foam
-
19414644300 DartDart
-
20510004782 Backrest FoamBackrest Foam
-
21510005066 Backrest CoverBackrest Cover
-
22510004377 Upper Backrest AxleUpper Backrest Axle
-
23510004379 WasherWasher
-
24510004378 Rubber ShimRubber Shim
-
25510005067 RH Arm, BlackRH Arm, Black
-
26510005068 LH Arm, BlakLH Arm, Blak
-
27250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
28250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
29510004966 SpacerSpacer
-
30510004963 Seat CornerSeat Corner
-
31510004964 RH Rear Corner SeatRH Rear Corner Seat
-
32510004965 LH Rear Corner SeatLH Rear Corner Seat
-
33515176766 Seat Harness. Includes 33 to 33jSeat Harness. Includes 33 to 33j
-
33a515175232 Male TerminalMale Terminal
-
33b515175231 Female TerminalFemale Terminal
-
33c515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
33d515175442 Tubing 6 mmTubing 6 mm
-
33e415079900 Tubing 10 mmTubing 10 mm
-
33f515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
33g515176034 PT Female SocketPT Female Socket
-
33h293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
34515175220 Tie RapTie Rap
-
35515175283 Housing SupportHousing Support
-
36518325474 RH Seat AnchorRH Seat Anchor
-
37510005216 SpacerSpacer
-
38518325473 LH Seat AnchorLH Seat Anchor
-
39510005095 Seat StudSeat Stud
-
40207561044 Hex. Flanged Screw S.grip M6 X 10Hex. Flanged Screw S.grip M6 X 10
-
41207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
42510005092 RH Handle Ass'y. Includes 42 to 57RH Handle Ass'y. Includes 42 to 57
-
43250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
44293100003 Nut M6Nut M6
-
45510004449 Handle GripHandle Grip
-
46510005009 RH Air DeflectorRH Air Deflector
-
47515176768 Heated ElementHeated Element
-
48515175506 TubingTubing
-
49250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
50510005011 Reinforcement HandleReinforcement Handle
-
51510004405 MouldingMoulding
-
52510005111 Link HandleLink Handle
-
53250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
54515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
55293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
56250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
57510004565 Handle ClampHandle Clamp
-
58510005093 LH Handle Ass'y. Includes 58 to 80LH Handle Ass'y. Includes 58 to 80
-
59250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
60293100003 Nut M6Nut M6
-
61510004449 Handle GripHandle Grip
-
62510005010 LH Air DeflectorLH Air Deflector
-
63515176768 Heated ElementHeated Element
-
64515175506 TubingTubing
-
65510005036 Housing SwitchHousing Switch
-
66250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
67250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
68510004413 Rocker SwitchRocker Switch
-
69510004414 Protector SwitchProtector Switch
-
70515176697 Handle HarnessHandle Harness
-
71510005011 Reinforcement HandleReinforcement Handle
-
72516003937 Connector DecalConnector Decal
-
73516003816 Heated Handle DecalHeated Handle Decal
-
74510004405 MouldingMoulding
-
75510005111 Link HandleLink Handle
-
76250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
77515176033 PT Male ConnectorPT Male Connector
-
78293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
79250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
80510004565 Handle ClampHandle Clamp
