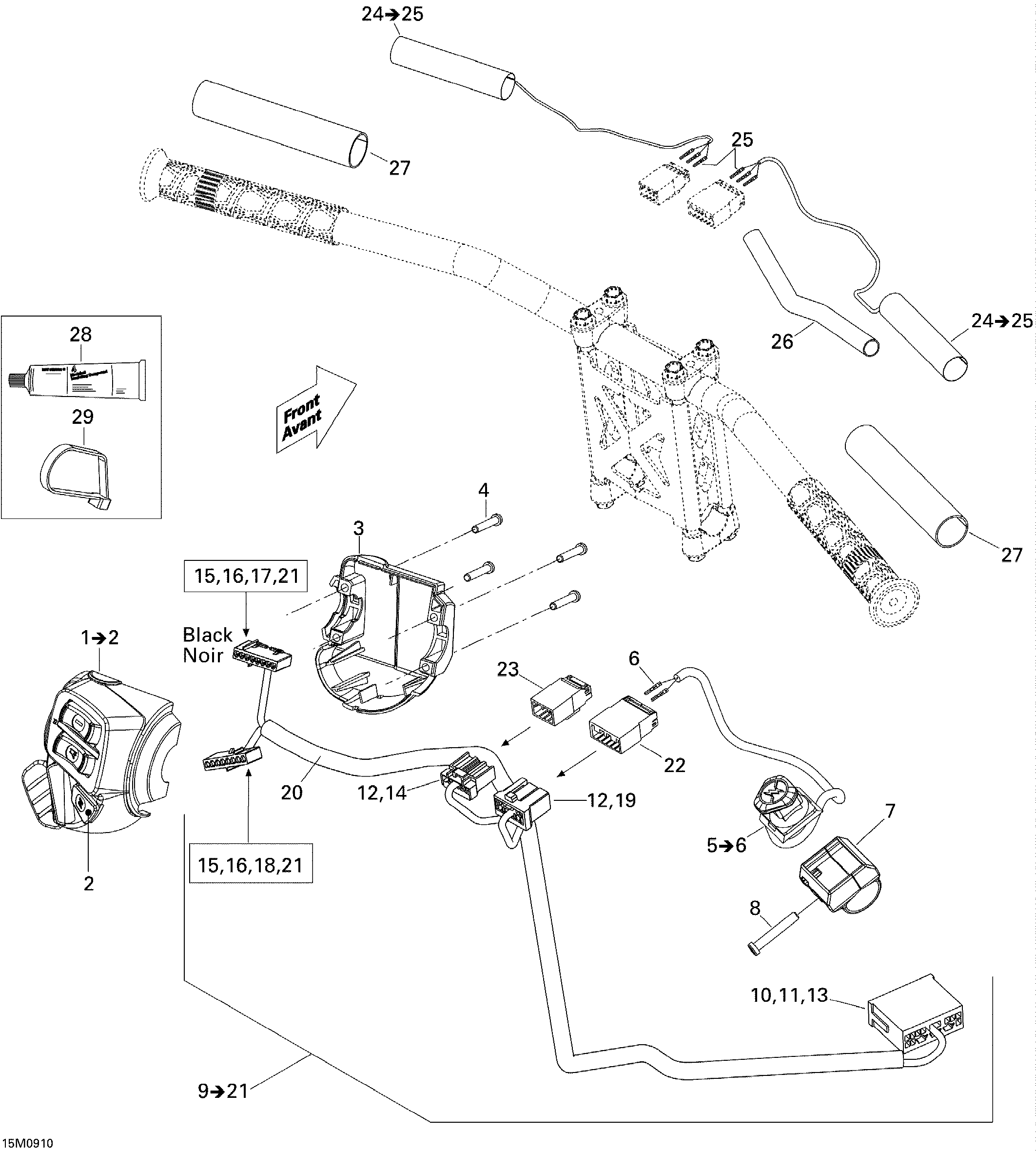

10- Steering Wiring Harness для BRP Ski-Doo GTX Sport 500SS - 2009
-
№АртикулНазвание
-
1515175479 LH Switch Housing. Includes 1 to 2LH Switch Housing. Includes 1 to 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176708 Kill Switch. Includes 5 to 6Kill Switch. Includes 5 to 6
-
6515175232 Male TerminalMale Terminal
-
7515176825 Kill Switch SupportKill Switch Support
-
8250000263 Torx Screw #8-18Torx Screw #8-18
-
9515176509 Wiring Harness. Includes 9 to 21Wiring Harness. Includes 9 to 21
-
10515175232 Male TerminalMale Terminal
-
11515175273 Male TerminalMale Terminal
-
12515175231 Female TerminalFemale Terminal
-
13515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
14515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
15515175808 Female TerminalFemale Terminal
-
16515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
17515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
18515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
19515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
20515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
21515175941 Female TerminalFemale Terminal
-
22515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
23515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
24506152422 Heating Element. Includes 24 to 25Heating Element. Includes 24 to 25
-
25515175232 Male TerminalMale Terminal
-
26515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
27506152423 InsulantInsulant
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
29293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
29293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
