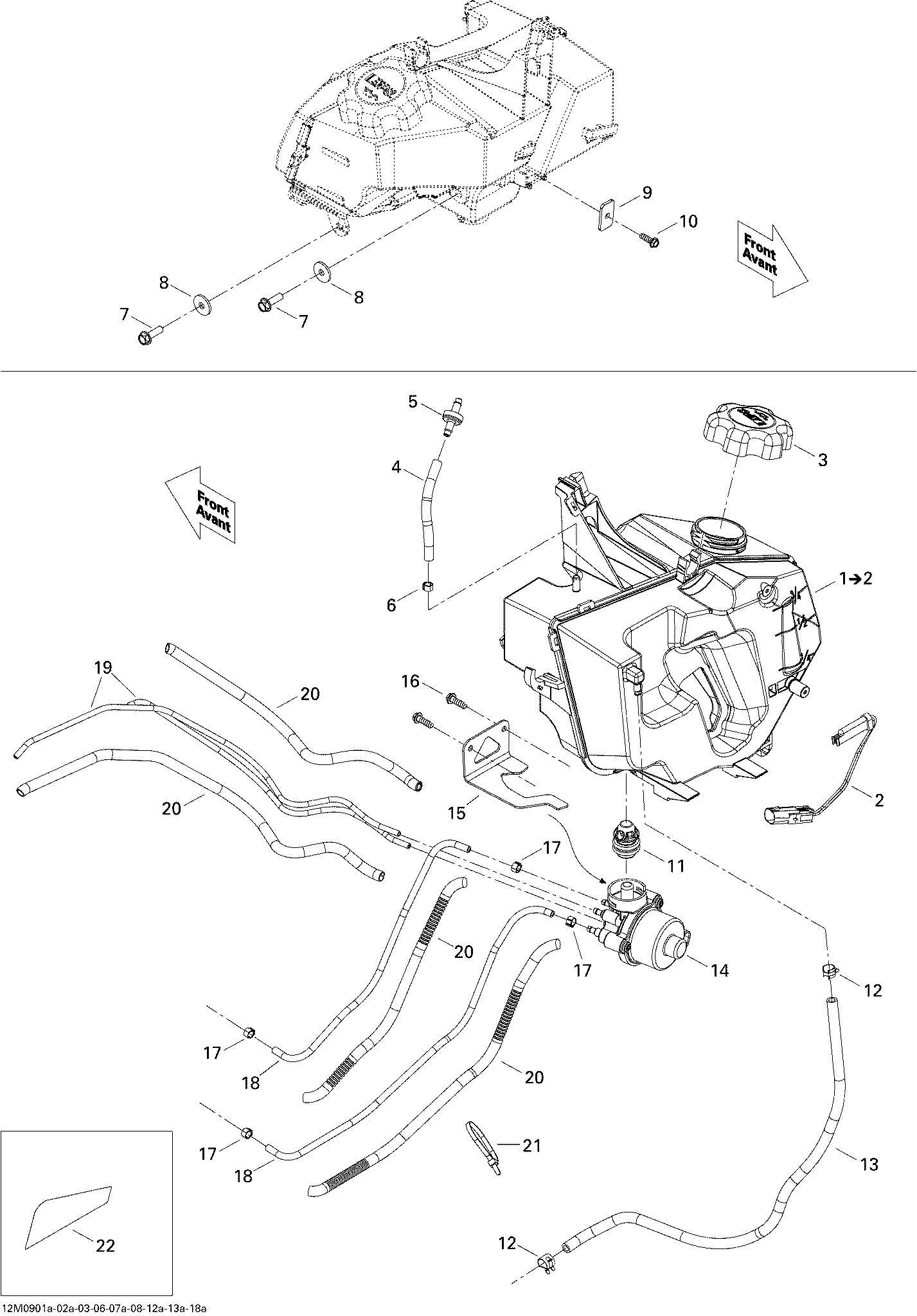

02- Oil System для BRP Ski-Doo MX Z 50TH Anniversary - 2009
-
№АртикулНазвание
-
1519000235 Oil Tank. Includes 1 to 2Oil Tank. Includes 1 to 2
-
2515176508 Oil Level SensorOil Level Sensor
-
3519000194 CapCap
-
4415080200 Polyurethane HosePolyurethane Hose
-
5275500398 Check ValveCheck Valve
-
6414554800 Spring ClampSpring Clamp
-
7250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
8224061201 Flat WasherFlat Washer
-
9519000179 BracketBracket
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
11519000229 GrommetGrommet
-
12414554800 Spring ClampSpring Clamp
-
13415080200 Polyurethane HosePolyurethane Hose
-
14519000225 Oil PumpOil Pump
-
15519000234 Oil BracketOil Bracket
-
16241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
17293650100 Oetiker ClampOetiker Clamp
-
18519000182 Hose 3.5 mmHose 3.5 mm
-
19519000184 Hose 2.5 mmHose 2.5 mm
-
20515175442 Tubing 6 mmTubing 6 mm
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
22516003861 Protect DecalProtect Decal
