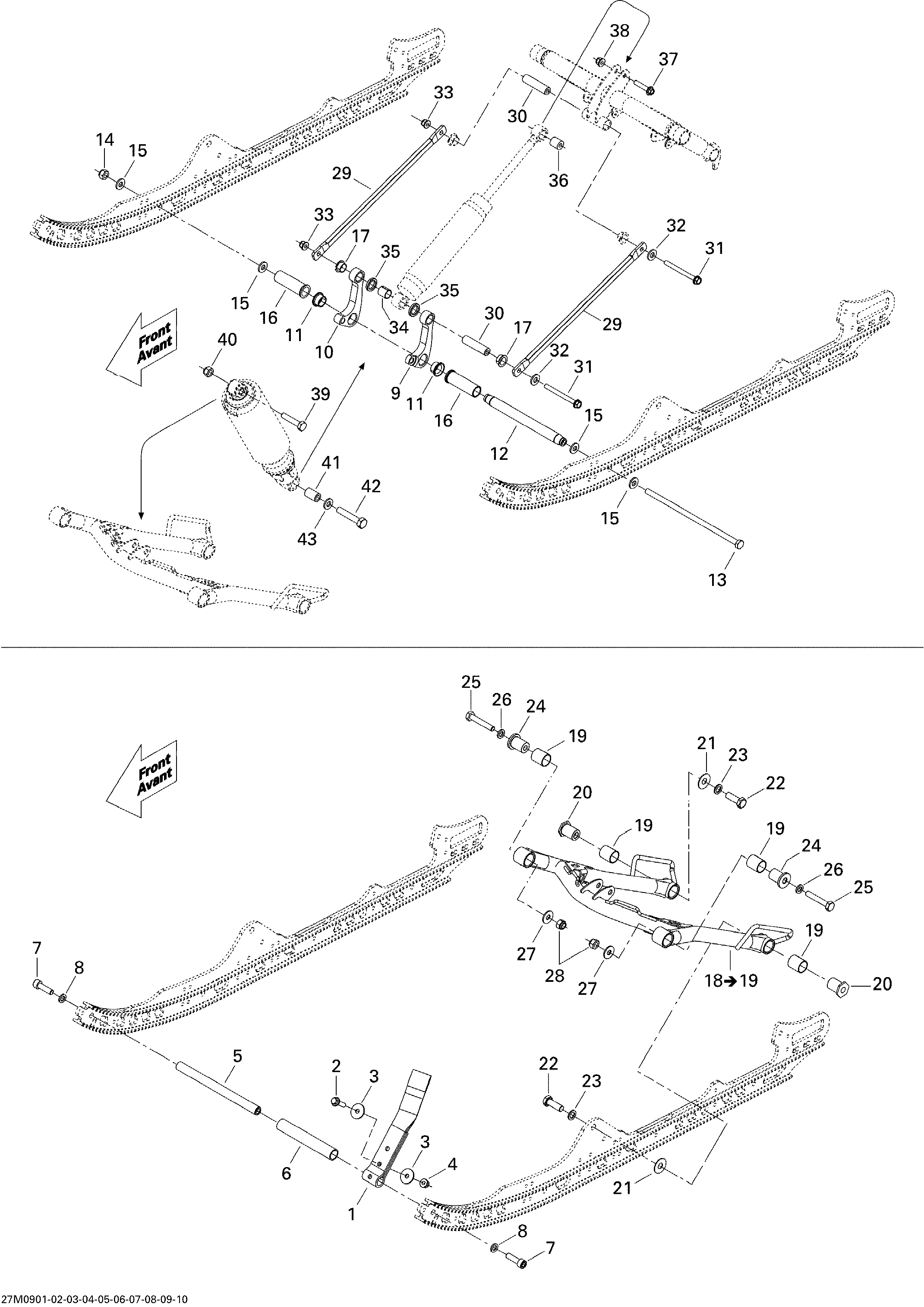

08- Front Arm для BRP Ski-Doo MX Z 50TH Anniversary - 2009
-
№АртикулНазвание
-
1503191365 Stopper StrapStopper Strap
-
2207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3224081301 Flat WasherFlat Washer
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503191260 Axle StrapAxle Strap
-
6503191448 SpacerSpacer
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8503189564 WasherWasher
-
9503191890 LH Rocker ArmLH Rocker Arm
-
10503191894 RH Rocker ArmRH Rocker Arm
-
11503191552 CushionCushion
-
12503191764 Center ShaftCenter Shaft
-
13503191352 Long BoltLong Bolt
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15732900049 WasherWasher
-
16503191351 Center BushingCenter Bushing
-
17503191555 Swivel BushingSwivel Bushing
-
18503191579 Front Arm Ass'y. Includes 18 to 19Front Arm Ass'y. Includes 18 to 19
-
19503191554 BushingBushing
-
20503191966 Lower AxleLower Axle
-
21503190656 WasherWasher
-
22250000225 Hex. Screw M12 X 35, Scotch GripHex. Screw M12 X 35, Scotch Grip
-
23503189276 WasherWasher
-
24503190698 AxleAxle
-
25250000357 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
26503191926 WasherWasher
-
27503191926 WasherWasher
-
28233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
29503191802 Link RodLink Rod
-
30503190643 Bar AxleBar Axle
-
31207688544 Hex. Flanged ScewHex. Flanged Scew
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34503191553 BushingBushing
-
35503190694 Plastic SpacerPlastic Spacer
-
36414936000 CushionCushion
-
37207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
40232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
41503190604 Central Shock AxleCentral Shock Axle
-
42207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
43503189564 WasherWasher
