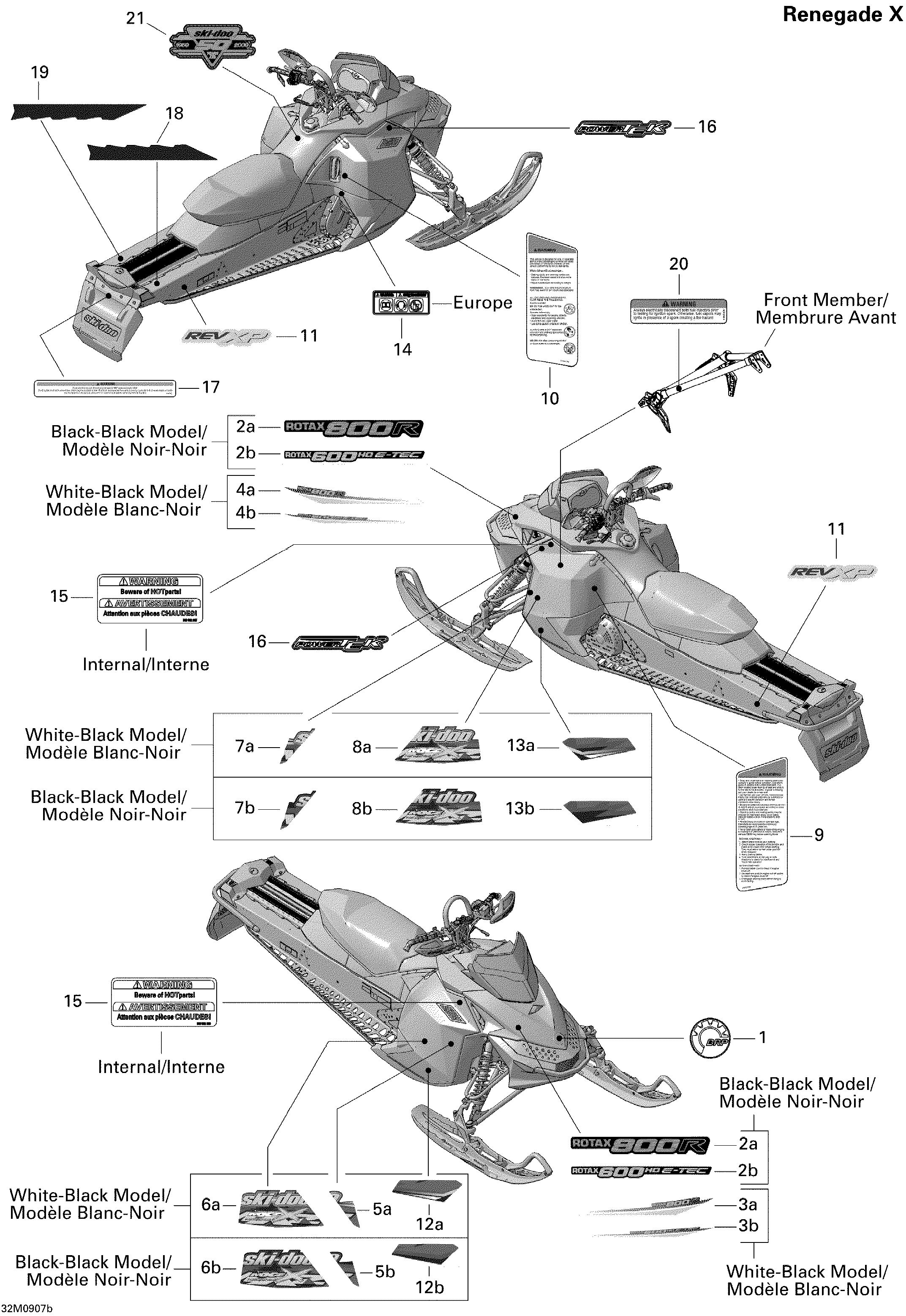

09- Decals Renegade X 600HO для BRP Ski-Doo MX Z Renegade X 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
2b516003767 Hood Decal, Rotax 600 HO E-TEC. 600HO ETEC, Black-BlackHood Decal, Rotax 600 HO E-TEC. 600HO ETEC, Black-Black
-
3b516003820 RH Hood Decal. 600HO ETEC, White-BlackRH Hood Decal. 600HO ETEC, White-Black
-
4b516003819 LH Hood Decal. 600HO ETEC, White-BlackLH Hood Decal. 600HO ETEC, White-Black
-
5a516003628 RH Front Lower Decal. White-BlackRH Front Lower Decal. White-Black
-
5b516003636 RH Front Lower Decal. Black-BlackRH Front Lower Decal. Black-Black
-
6a516003644 RH Lower Decal. White-BlackRH Lower Decal. White-Black
-
6b516003646 RH Lower Decal. Black-BlackRH Lower Decal. Black-Black
-
7A516003627 LH Front Lower Decal. White-BlackLH Front Lower Decal. White-Black
-
7b516003635 LH Front Lower Decal. Black-BlackLH Front Lower Decal. Black-Black
-
8a516003643 LH Lower Decal. White-BlackLH Lower Decal. White-Black
-
8b516003645 LH Lower Decal. Black-BlackLH Lower Decal. Black-Black
-
9516003788 Warning Decal, SecurityWarning Decal, Security
-
10516003790 Warning Decal, SecurityWarning Decal, Security
-
11516003543 Decal, REV XPDecal, REV XP
-
12a516003632 RH Lower Decal. White-BlackRH Lower Decal. White-Black
-
12b516003640 RH Lower Decal. Black-BlackRH Lower Decal. Black-Black
-
13a516003631 LH Lower Decal. White-BlackLH Lower Decal. White-Black
-
13b516003639 LH Lower Decal. Black-BlackLH Lower Decal. Black-Black
-
14516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
15516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
17516003578 Warning Decal, TrackWarning Decal, Track
-
18516003860 RH Frame DecalRH Frame Decal
-
19516003859 LH Frame DecalLH Frame Decal
-
20516003940 Warning Decal, Injectors. 600HO ETECWarning Decal, Injectors. 600HO ETEC
-
21516003871 Console DecalConsole Decal
