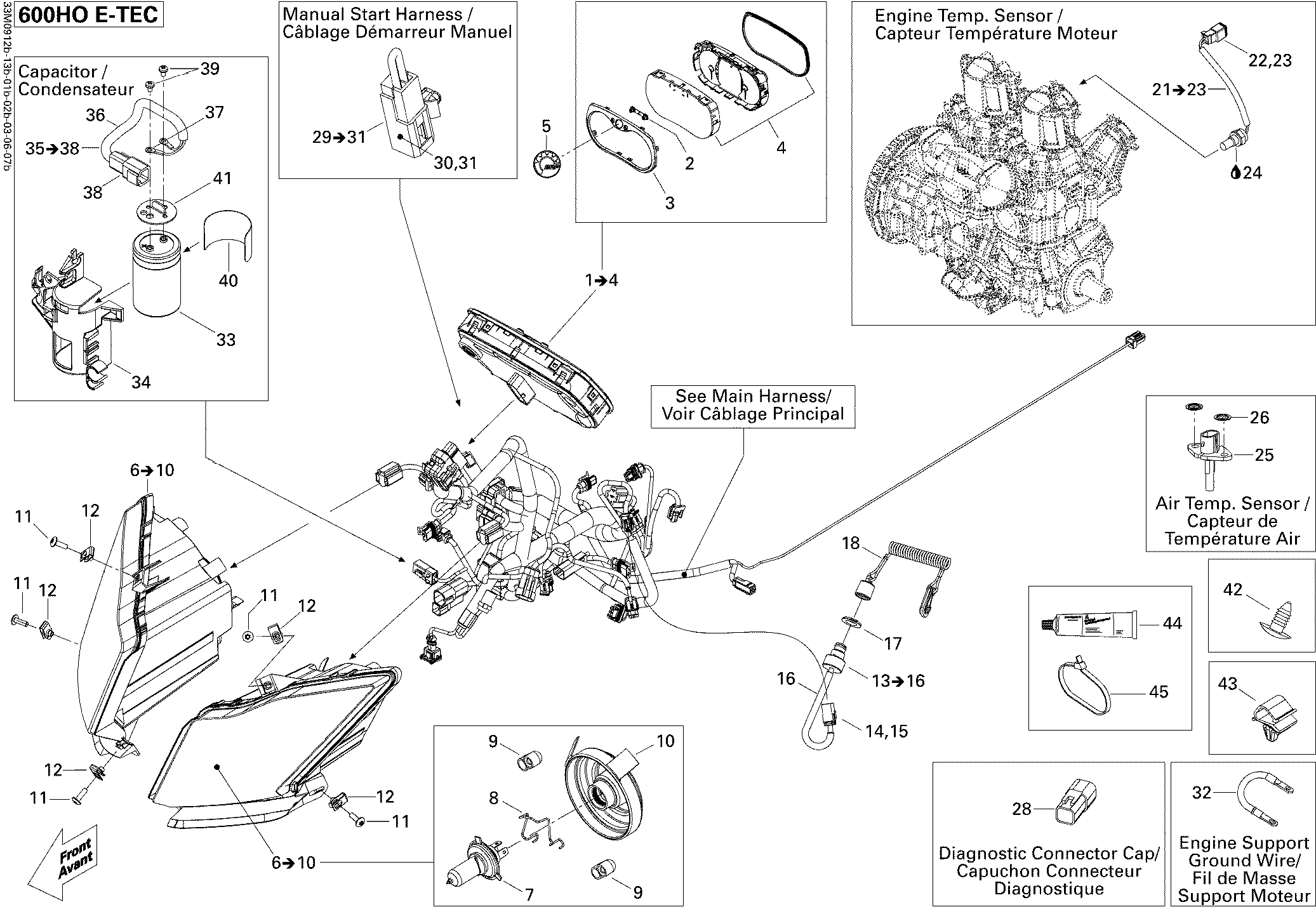

10- Electrical System 600 HO для BRP Ski-Doo MX Z Renegade X 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1515176752 Speedometer. Manual Start, Includes 1 to 4Speedometer. Manual Start, Includes 1 to 4
-
1515176757 Speedometer Ass'y. Electric Start, Includes 1 to 4Speedometer Ass'y. Electric Start, Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
6517304194 RH Headlamp Ass'y. Includes 6 to 10RH Headlamp Ass'y. Includes 6 to 10
-
6517304195 LH Headlamp Ass'y. Includes 6 to 10LH Headlamp Ass'y. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515176815 Dess Switch. Includes 13 to 16Dess Switch. Includes 13 to 16
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176461 DESS CapDESS Cap
-
21515176398 Temperature Sensor. Includes 21 to 23Temperature Sensor. Includes 21 to 23
-
22515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
23278000632 Female TerminalFemale Terminal
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
25515176366 Air Temperature SensorAir Temperature Sensor
-
26389804300 Push NutPush Nut
-
28515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
29515176661 Manual Start Harness. Includes 29 to 31Manual Start Harness. Includes 29 to 31
-
30515175232 Male TerminalMale Terminal
-
31710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
32515176358 Ground WireGround Wire
-
33515176349 CapacitorCapacitor
-
34515176607 Capacitor SupportCapacitor Support
-
35515176605 Capacitor Harness. Includes 35 to 38Capacitor Harness. Includes 35 to 38
-
36515175442 Tubing 6 mmTubing 6 mm
-
37515175504 Ring TerminalRing Terminal
-
38278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
39515176542 Screw 10-32 X 5/16''Screw 10-32 X 5/16''
-
40516002976 Capacitor DecalCapacitor Decal
-
41515176351 CapCap
-
42414644300 DartDart
-
43515176795 clipclip
-
44293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
45293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
45293750001 Tie-Rap 94 mmTie-Rap 94 mm
