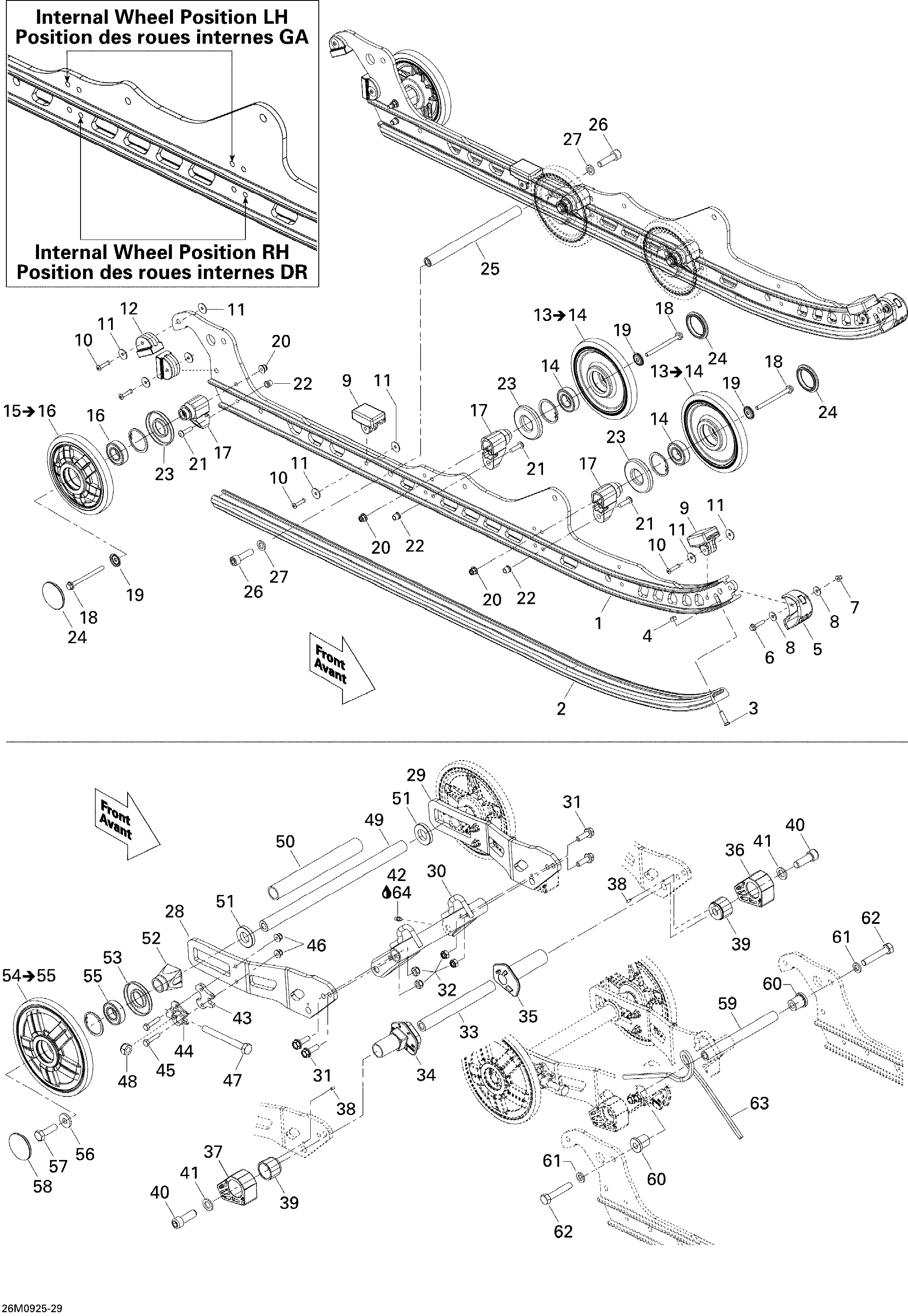

08- Rear Suspension для BRP Ski-Doo Skandic Tundra LT 550F - 2009
-
№АртикулНазвание
-
1503191750 RunnerRunner
-
2503191619 SliderSlider
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503191311 Wheel 147 Ass'y. Includes 13 to 14Wheel 147 Ass'y. Includes 13 to 14
-
14503190396 Ball BearingBall Bearing
-
15503191319 Wheel 147 With Pattern Ass'y, Yellow. Includes 15 to 16Wheel 147 With Pattern Ass'y, Yellow. Includes 15 to 16
-
16503190396 Ball BearingBall Bearing
-
17503191833 SupportSupport
-
18207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
19503191820 Wheel Cup M6Wheel Cup M6
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23503190434 Labyrinth SealLabyrinth Seal
-
24570063600 Wheel CapWheel Cap
-
25503191260 Axle StrapAxle Strap
-
26205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
27503189564 WasherWasher
-
28503191382 RH Rear Pivot Arm RunnerRH Rear Pivot Arm Runner
-
29503191383 LH Rear Pivot Arm RunnerLH Rear Pivot Arm Runner
-
30503191598 Welded PivotWelded Pivot
-
31207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
32232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
33503191608 Cam AxelCam Axel
-
34503191190 RH Spring CamRH Spring Cam
-
35503191668 LH Spring CamLH Spring Cam
-
36503191425 LH BlockLH Block
-
37503191426 RH BlockRH Block
-
38250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
39503189488 Block GuideBlock Guide
-
40205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
41503189148 WasherWasher
-
42408200700 Grease FittingGrease Fitting
-
43503190379 Tensioner SpacerTensioner Spacer
-
44503190380 TensionerTensioner
-
45207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
48233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
49503190429 Rear AxleRear Axle
-
50503191736 Rear Spacer, LongRear Spacer, Long
-
51503190432 WasherWasher
-
52503190428 Rear Wheel SpacerRear Wheel Spacer
-
53503190434 Labyrinth SealLabyrinth Seal
-
54503190342 Wheel 180 With Pattern Ass'y, Yellow. Includes 54 to 55Wheel 180 With Pattern Ass'y, Yellow. Includes 54 to 55
-
55503190396 Ball BearingBall Bearing
-
56503190439 WasherWasher
-
57250000019 Hex. Screw With NylonHex. Screw With Nylon
-
58570063600 Wheel CapWheel Cap
-
59503191279 Lower ShaftLower Shaft
-
60503189324 CushionCushion
-
61503189564 WasherWasher
-
62207205586 Hex. Screw, Scotch GripHex. Screw, Scotch Grip
-
63503191603 SpringSpring
-
64219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
