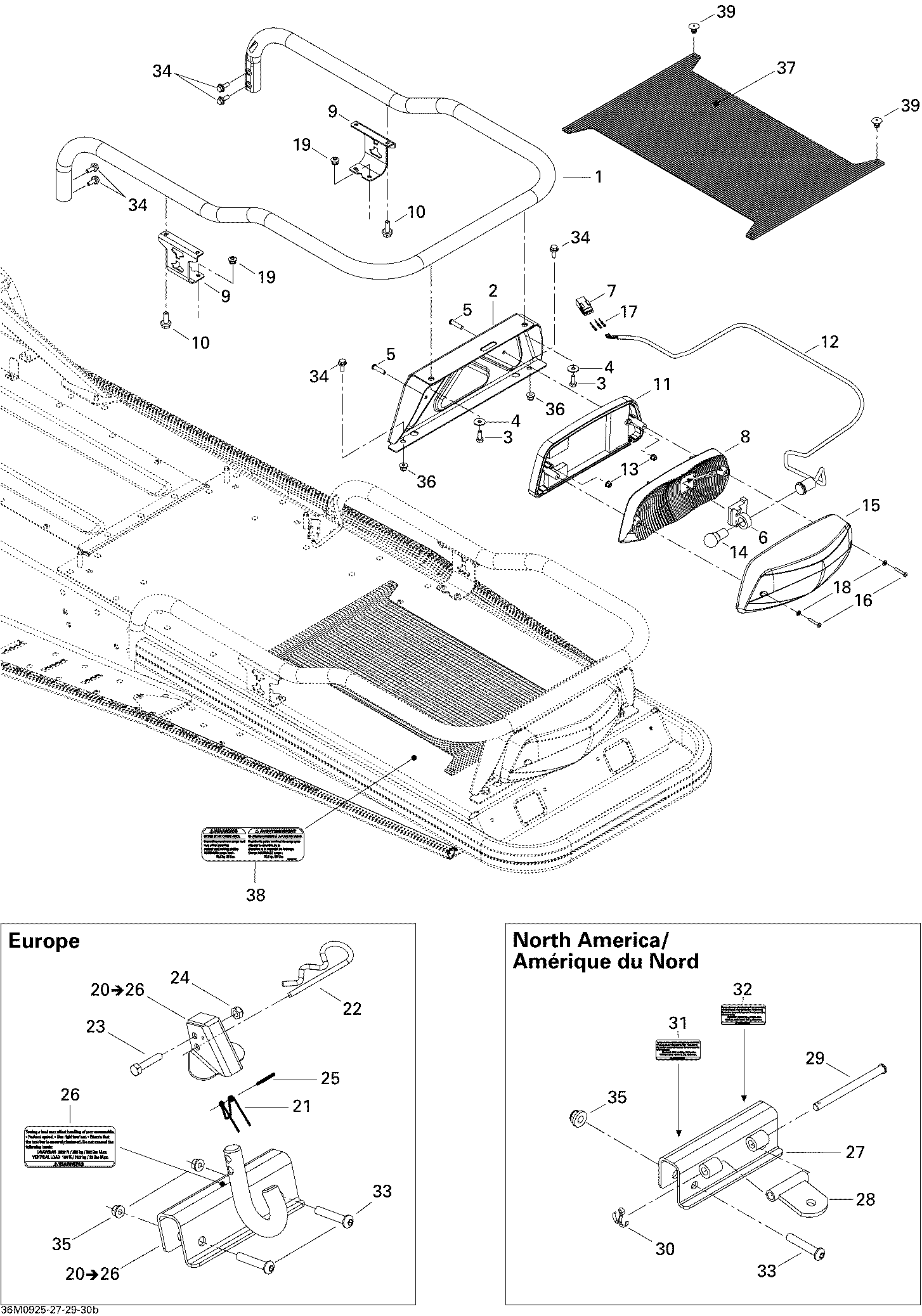

09- Luggage Rack для BRP Ski-Doo Skandic Tundra LT 550F - 2009
-
№АртикулНазвание
-
1511000567 Luggage RackLuggage Rack
-
2511000187 Rear Light SupportRear Light Support
-
3207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
4391302000 Flat WasherFlat Washer
-
5205452560 Socket Screw M5 X 25Socket Screw M5 X 25
-
6511000431 Bulb SupportBulb Support
-
7515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
8510004442 ReflectorReflector
-
9511000517 RenfortRenfort
-
10207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
11515176272 Rear Light HousingRear Light Housing
-
12511000494 Bulb SocketBulb Socket
-
13233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
14520000758 BulbBulb
-
15511000315 LensLens
-
16209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
17515175232 Male TerminalMale Terminal
-
18414516400 WasherWasher
-
19390909200 Avex RivetAvex Rivet
-
27511000524 Hitch, BlackHitch, Black
-
28511000521 Hitch Plate WeldedHitch Plate Welded
-
29511000520 Clevis PinClevis Pin
-
30371800200 Cotter PinCotter Pin
-
31516003037 Warning Decal-Security-EnglishWarning Decal-Security-English
-
32516003038 Warning Decal-Security-FrenchWarning Decal-Security-French
-
33205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
34207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
35233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37511000496 CarpetCarpet
-
38516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
