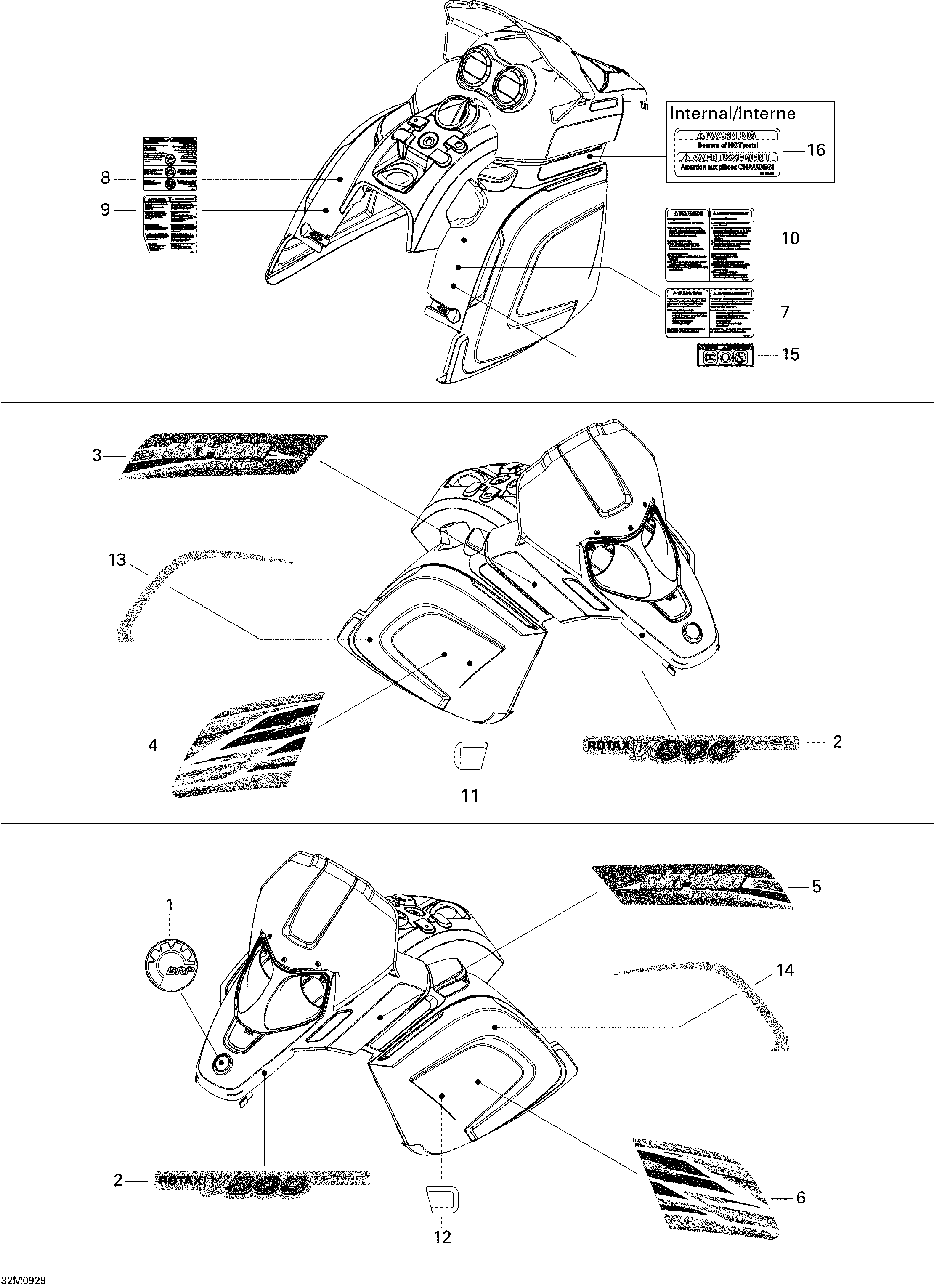

09- Decals для BRP Ski-Doo Skandic Tundra LT V800 4-TEC - 2009
-
№АртикулНазвание
-
1219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
2516003406 Hood Decal, Rotax V800 4-TECHood Decal, Rotax V800 4-TEC
-
3516003397 RH Upper Side DecalRH Upper Side Decal
-
4516003399 RH Side DecalRH Side Decal
-
5516003396 LH Upper Side DecalLH Upper Side Decal
-
6516003398 LH Side DecalLH Side Decal
-
7516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
8516002908 Security Label, GeneralSecurity Label, General
-
9516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
10516003024 Security Label, StartingSecurity Label, Starting
-
11516001910 RH Protector DecalRH Protector Decal
-
12516001911 LH Protector DecalLH Protector Decal
-
13516003403 RH Inner Side DecalRH Inner Side Decal
-
14516003402 LH Inner Side DecalLH Inner Side Decal
-
15516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
16516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
