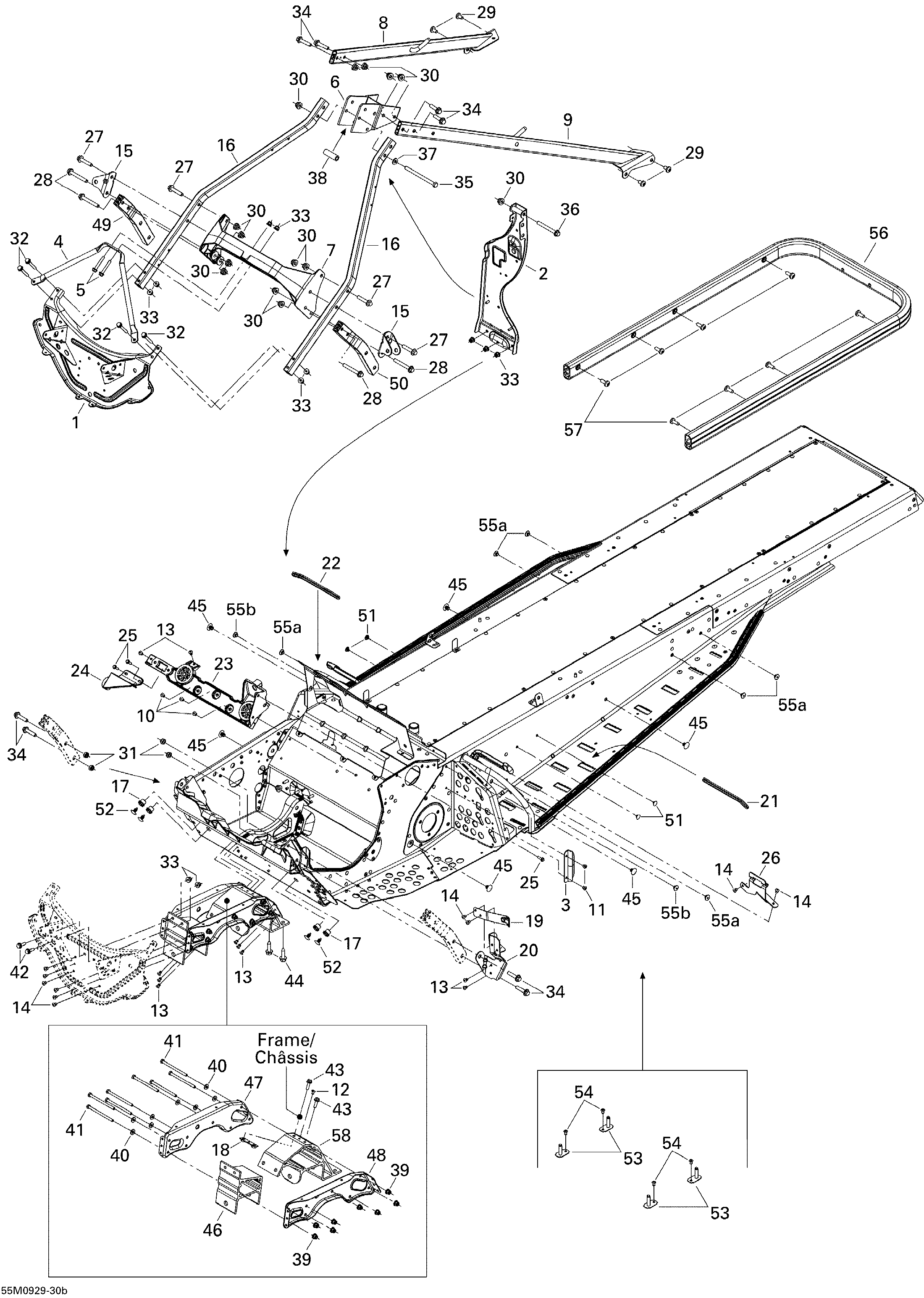

09- Frame and Components для BRP Ski-Doo Skandic Tundra LT V800 4-TEC - 2009
-
№АртикулНазвание
-
1518324216 Front PlateFront Plate
-
2518325212 Upper Column SupportUpper Column Support
-
3518317504 Cable ProtectorCable Protector
-
4518325036 BraceBrace
-
5207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
6518324196 Bracket BlockBracket Block
-
7518324808 Upper Cross MemberUpper Cross Member
-
8518324480 RH MemberRH Member
-
9518325193 LH MemberLH Member
-
10293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
11390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390909100 Avex RivetAvex Rivet
-
14390909200 Avex RivetAvex Rivet
-
15518324202 Shock BracketShock Bracket
-
16518325074 Upper TubeUpper Tube
-
17293450166 InsertInsert
-
18518324204 Holder PlateHolder Plate
-
19518325235 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
20518325075 Guard Belt SupportGuard Belt Support
-
21271000110 Protection TrimProtection Trim
-
22271000110 Protection TrimProtection Trim
-
23518324902 LH Rear Engine SupportLH Rear Engine Support
-
24518324903 RH Rear Engine SupportRH Rear Engine Support
-
25207551644 Hex. Flanged Screw M5 x 16, Scotch GripHex. Flanged Screw M5 x 16, Scotch Grip
-
26518325077 Guard Belt BracketGuard Belt Bracket
-
27207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
28207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
29250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
32207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
35230081044 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
36207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
37503189157 WasherWasher
-
38506150500 Housing BushingHousing Bushing
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40250200039 Flat WasherFlat Washer
-
41207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
43207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
44250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
45518321954 Fastener PanelFastener Panel
-
46518324019 Front Attachment, Front SuspensionFront Attachment, Front Suspension
-
47518324014 RH Lateral ReinforcementRH Lateral Reinforcement
-
48518324017 LH Lateral ReinforcementLH Lateral Reinforcement
-
49518324786 RH TubeRH Tube
-
50518324787 LH TubeLH Tube
-
51293730042 DartDart
-
52414644300 DartDart
-
53518322791 Tank BracketTank Bracket
-
54390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
55a390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
56518325509 Rear BumperRear Bumper
-
57236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
58518324020 Rear Attachment, Front SuspensionRear Attachment, Front Suspension
