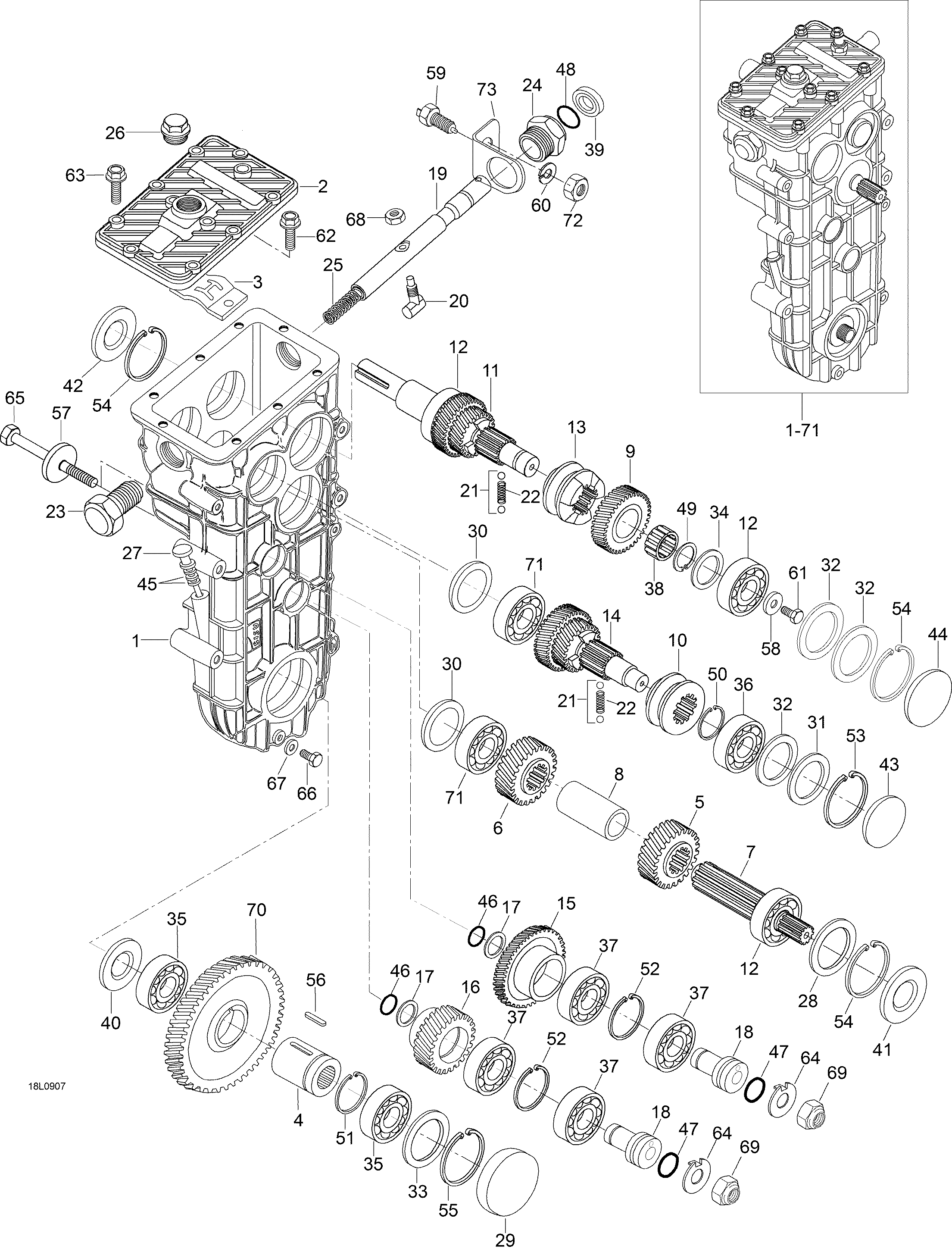

05- Transmission для BRP Ski-Doo Skandic WT 550F - 2009
-
№АртикулНазвание
-
—605612000 Transmission Ass'y. Includes 1 to 71Transmission Ass'y. Includes 1 to 71
-
1M875156138 Chain CaseChain Case
-
2M875156043 CoverCover
-
3M875156111 H SchemeH Scheme
-
4M875156218 ShaftShaft
-
5M875156276 Sprocket 29ThSprocket 29Th
-
6M875156054 Sprocket 34 ThSprocket 34 Th
-
7M875156069 ShaftShaft
-
8M875156087 SleeveSleeve
-
9M875156052 Sprocket 27thSprocket 27th
-
10M875156005 Clutch WheelClutch Wheel
-
11M875156063 Variator Shaft. Includes 11 to 12Variator Shaft. Includes 11 to 12
-
12M610063050 Ball BearingBall Bearing
-
13M875156005 Clutch WheelClutch Wheel
-
14M875156068 Reverse ShaftReverse Shaft
-
15M875156050 Sprocket 28 ThSprocket 28 Th
-
16M875156049 Sprocket 31 ThSprocket 31 Th
-
17M875156328 RingRing
-
18619230005 ShaftShaft
-
19M875156072 ShaftShaft
-
20M875156073 PinPin
-
21M616810064 BallBall
-
22M875156105 SpringSpring
-
23M875156076 Sleeve NutSleeve Nut
-
24M875156077 Sleeve NutSleeve Nut
-
25M875156078 SpringSpring
-
26M875156098 PlugPlug
-
27M875156278 DipstickDipstick
-
28M617395067 ShimShim
-
29M614100068 PlugPlug
-
30M875152953 PlugPlug
-
31M617394352 Shim 0.5 mmShim 0.5 mm
-
31M617394252 ShimShim
-
32M617395065 ShimShim
-
33M617395568 ShimShim
-
34M616092542 Axial WasherAxial Washer
-
35M6008 Ball BearingBall Bearing
-
36M6304 Ball BearingBall Bearing
-
37M612030303 BearingBearing
-
38M611002529 Needle BearingNeedle Bearing
-
39M614102031 Oil SealOil Seal
-
40M614102852 Oil SealOil Seal
-
41M614102562 Oil SealOil Seal
-
42M614103562 Oil SealOil Seal
-
43M614100052 PlugPlug
-
44M614100062 PlugPlug
-
45M614600725 O'RingO'Ring
-
46M614601224 O'RingO'Ring
-
47M614602431 O'RingO'Ring
-
48M614601523 O'RingO'Ring
-
49M617450025 CirclipCirclip
-
50M617450028 CirclipCirclip
-
51M617300040 CirclipCirclip
-
52M617330047 CirclipCirclip
-
53M31002 CirclipCirclip
-
54M617330062 Lock RingLock Ring
-
55M617330068 CirclipCirclip
-
56M603345080 KeyKey
-
57619230004 WasherWasher
-
58M875156112 WasherWasher
-
59M654100225 Backup SenderBackup Sender
-
60M20016 WasherWasher
-
61207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
62M40337 Hex. ScrewHex. Screw
-
63M537001402 ScrewScrew
-
64M875156327 WasherWasher
-
65619230003 ScrewScrew
-
66M528801342 PlugPlug
-
67M615580812 Gasket RingGasket Ring
-
68M510611002 NutNut
-
69M510600802 Nut M10Nut M10
-
70M875156048 Sprocket 55Sprocket 55
-
71M610063044 Ball BearingBall Bearing
-
72M33021 NutNut
-
73M5346698 BracketBracket
