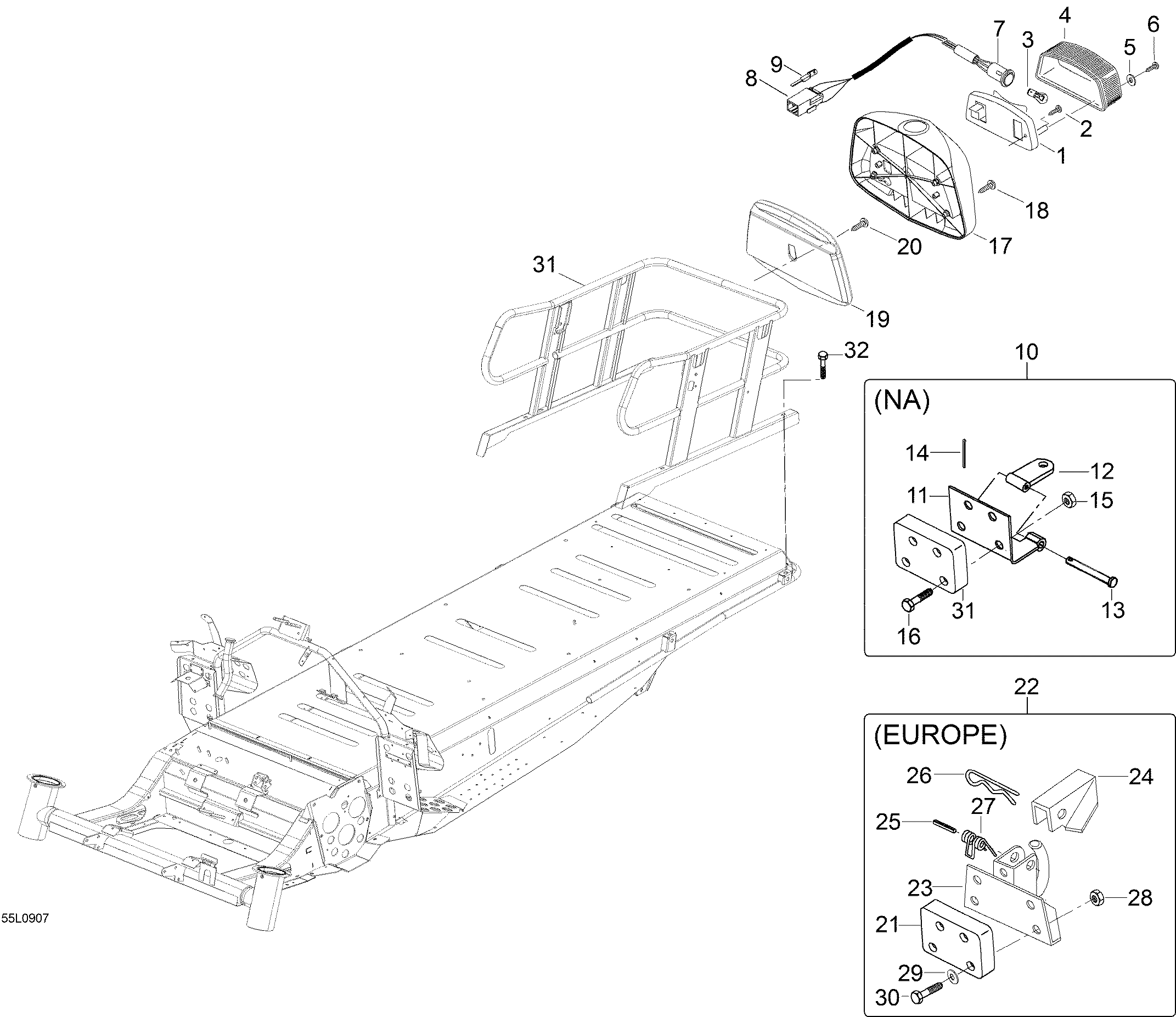

09- Luggage Rack для BRP Ski-Doo Skandic WT 550F - 2009
-
№АртикулНазвание
-
1515175397 Lamp HousingLamp Housing
-
2M40207 Screw 4.8 X 45Screw 4.8 X 45
-
3520000758 BulbBulb
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
7515175852 AdapterAdapter
-
9M42614 Female ConnectorFemale Connector
-
11M5344151 PlatePlate
-
12M548745 Hitch PlateHitch Plate
-
13560309200 Pin-RetainerPin-Retainer
-
14M41031 PinPin
-
15232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
16207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
17605251392 Mold Tail LampMold Tail Lamp
-
18M40206 Screw 4.8 X 25Screw 4.8 X 25
-
19605251963 BaseBase
-
20M40322 ScrewScrew
-
21605351510 SpacerSpacer
-
31605156016 Luggage RackLuggage Rack
-
32M40316 ScrewScrew
