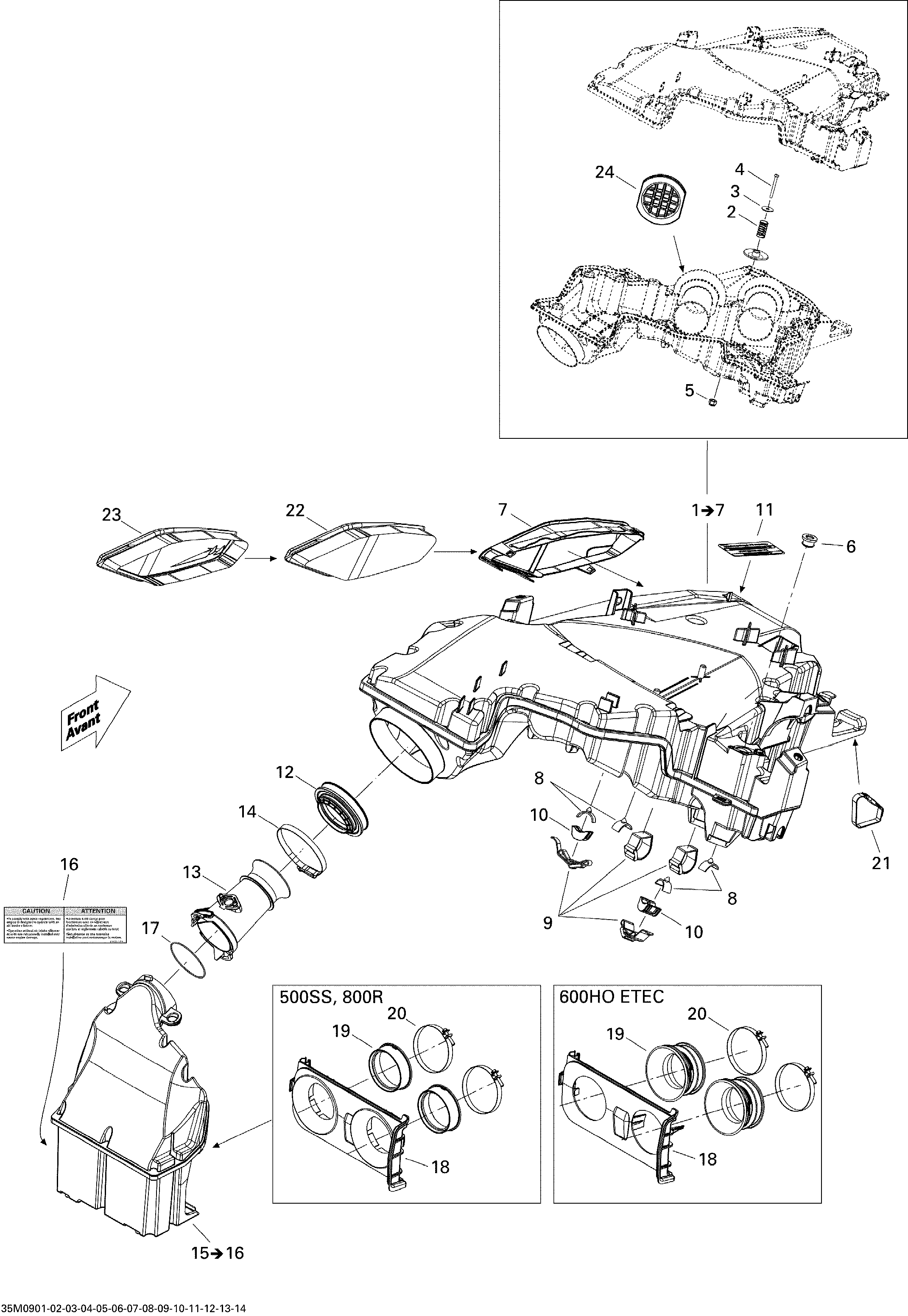

02- Air Intake System 800R для BRP Ski-Doo Summit Everest 800R Power T.E.K. - 2009
-
№АртикулНазвание
-
1508000628 Secondary Chamber Ass'y. Includes 1 to 7Secondary Chamber Ass'y. Includes 1 to 7
-
2508000576 SpringSpring
-
3224060201 Flat WasherFlat Washer
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
5232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
6508000574 GrommetGrommet
-
7508000626 Air FilterAir Filter
-
8508000537 StopperStopper
-
9508000532 Strip VelcroStrip Velcro
-
10508000572 BumperBumper
-
11516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
12508000567 BootBoot
-
13508000542 Intake AdapterIntake Adapter
-
14514052924 Norma ClampNorma Clamp
-
15508000610 Primary Chamber Ass'y. Includes 15 to 16Primary Chamber Ass'y. Includes 15 to 16
-
16516003371 Caution Label, Air IntakeCaution Label, Air Intake
-
17293300140 O'RingO'Ring
-
18508000500 Plate AdapterPlate Adapter
-
19508000501 Air Intake AdapterAir Intake Adapter
-
20508000346 Gemi ClampGemi Clamp
-
21508000599 Velcro StripVelcro Strip
-
22415129377 Foam FilterFoam Filter
-
23415129376 Filter CoverFilter Cover
