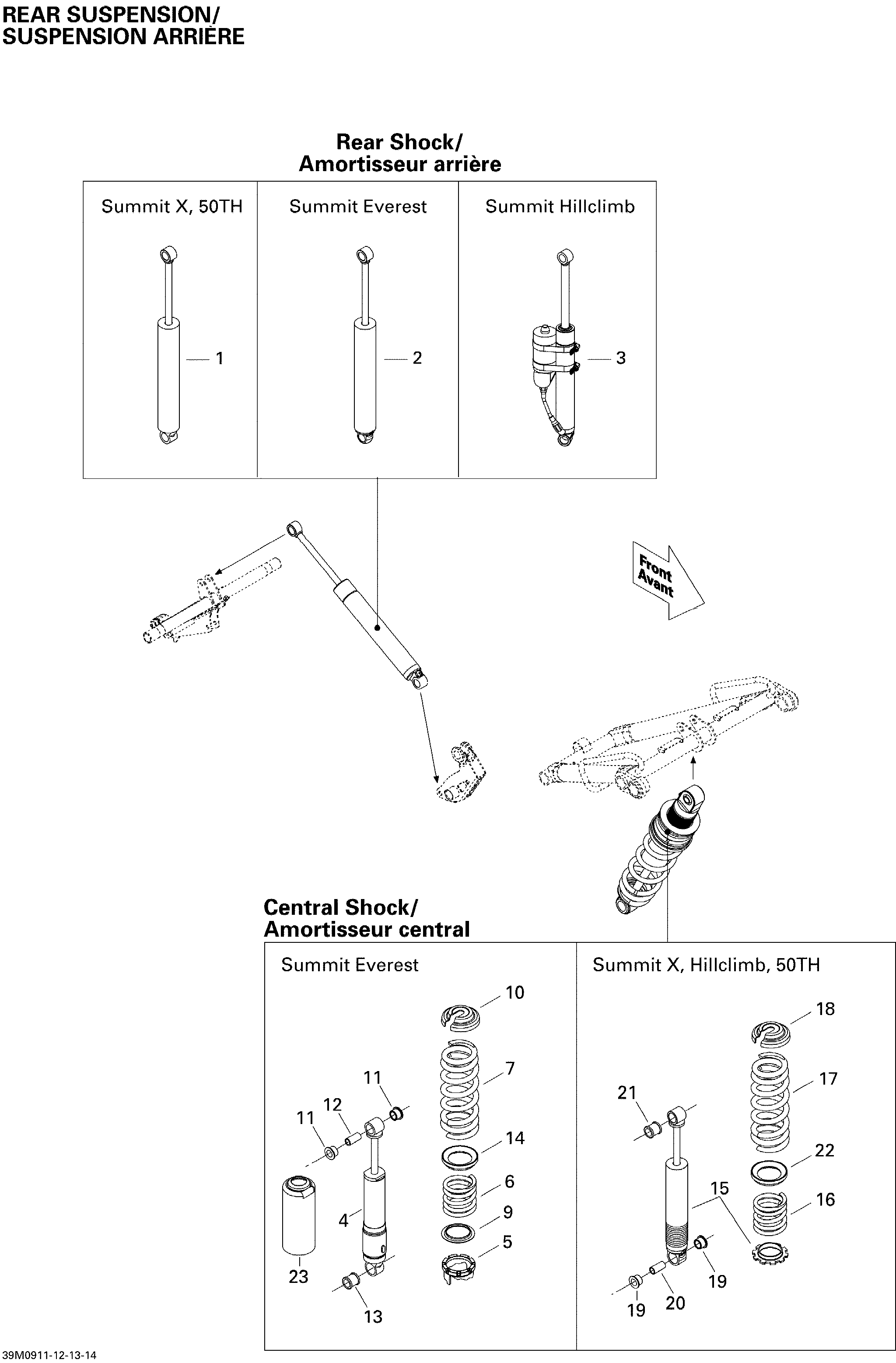

08- Rear Suspension Shocks 800R для BRP Ski-Doo Summit Everest 800R Power T.E.K. - 2009
-
№АртикулНазвание
-
2503191587 Rear ShockRear Shock
-
4503191593 Center Shock. 800RCenter Shock. 800R
-
5505070150 Adjustment CamAdjustment Cam
-
6503191343 SpringSpring
-
7503191327 SpringSpring
-
9503191872 Spring GuideSpring Guide
-
10503189912 Spring StopperSpring Stopper
-
11503189117 CushionCushion
-
12503189282 BushingBushing
-
13503189271 CushionCushion
-
14503191281 Spring SpacerSpring Spacer
