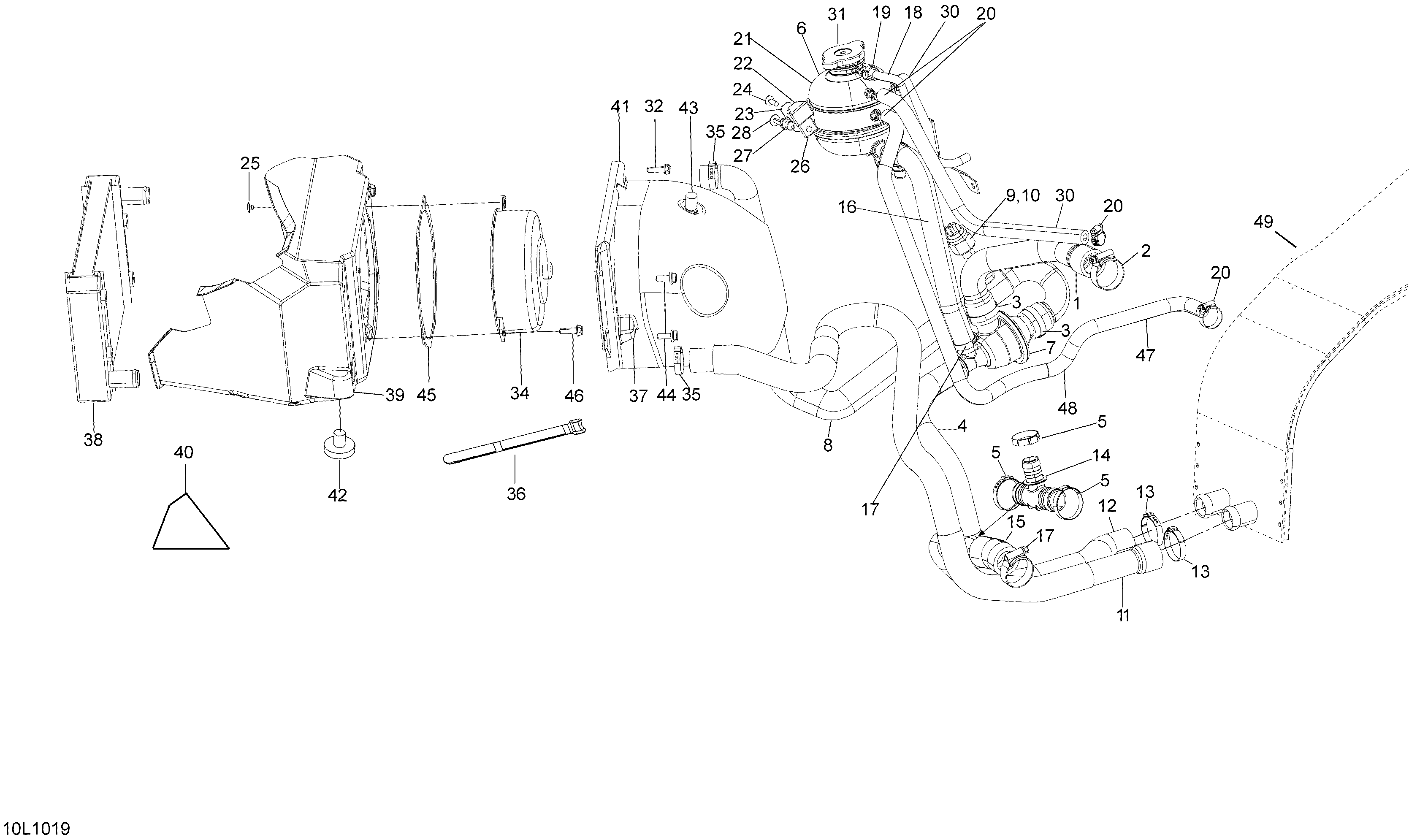

01- Cooling System для BRP Ski-Doo Expedition TUV SE 600HO SDI XU - 2010
-
№АртикулНазвание
-
1509000522 Hose OutletHose Outlet
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000181 Oetiker Gear ClampOetiker Gear Clamp
-
4509000523 Bypass HoseBypass Hose
-
5293650099 Oetiker Gear ClampOetiker Gear Clamp
-
7509000499 Thermostat HousingThermostat Housing
-
8509000653 Radiator HoseRadiator Hose
-
9509000480 SwitchSwitch
-
10293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
11509000588 Air Radiator HoseAir Radiator Hose
-
12509000589 Return Radiator HoseReturn Radiator Hose
-
13509000045 Oetiker Gear ClampOetiker Gear Clamp
-
14509000372 T-FittingT-Fitting
-
15509000675 Radiator HoseRadiator Hose
-
16509000655 Hose FillingHose Filling
-
17509000442 Oetiker Gear ClampOetiker Gear Clamp
-
18509000598 Breather HoseBreather Hose
-
19293650170 Tridon Gear ClampTridon Gear Clamp
-
20293650053 Crimp ClampCrimp Clamp
-
21509000368 Coolant TankCoolant Tank
-
22509000654 Cooling Tank BracketCooling Tank Bracket
-
23509000608 SupportSupport
-
24732600030 ScrewScrew
-
25M36005 RivetRivet
-
26509000609 SupportSupport
-
27517303439 KnobKnob
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
30276000048 Hose 6 mmHose 6 mm
-
31509000187 Pressure CapPressure Cap
-
32205061244 Socket ScrewSocket Screw
-
34509000456 FanFan
-
35M27011 ClipClip
-
36508000532 Strip VelcroStrip Velcro
-
37508000572 BumperBumper
-
38509000488 RadiatorRadiator
-
39509000489 Cooling fan shroudCooling fan shroud
-
40509000615 FoamFoam
-
41509000558 DeflectorDeflector
-
42570044700 Rubber BumperRubber Bumper
-
43710000992 ClipClip
-
44207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
45509000614 Screw plateScrew plate
-
46210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47509000601 Formed HoseFormed Hose
-
48415080000 Tubing 16 mmTubing 16 mm
-
49509000586 RadiatorRadiator
