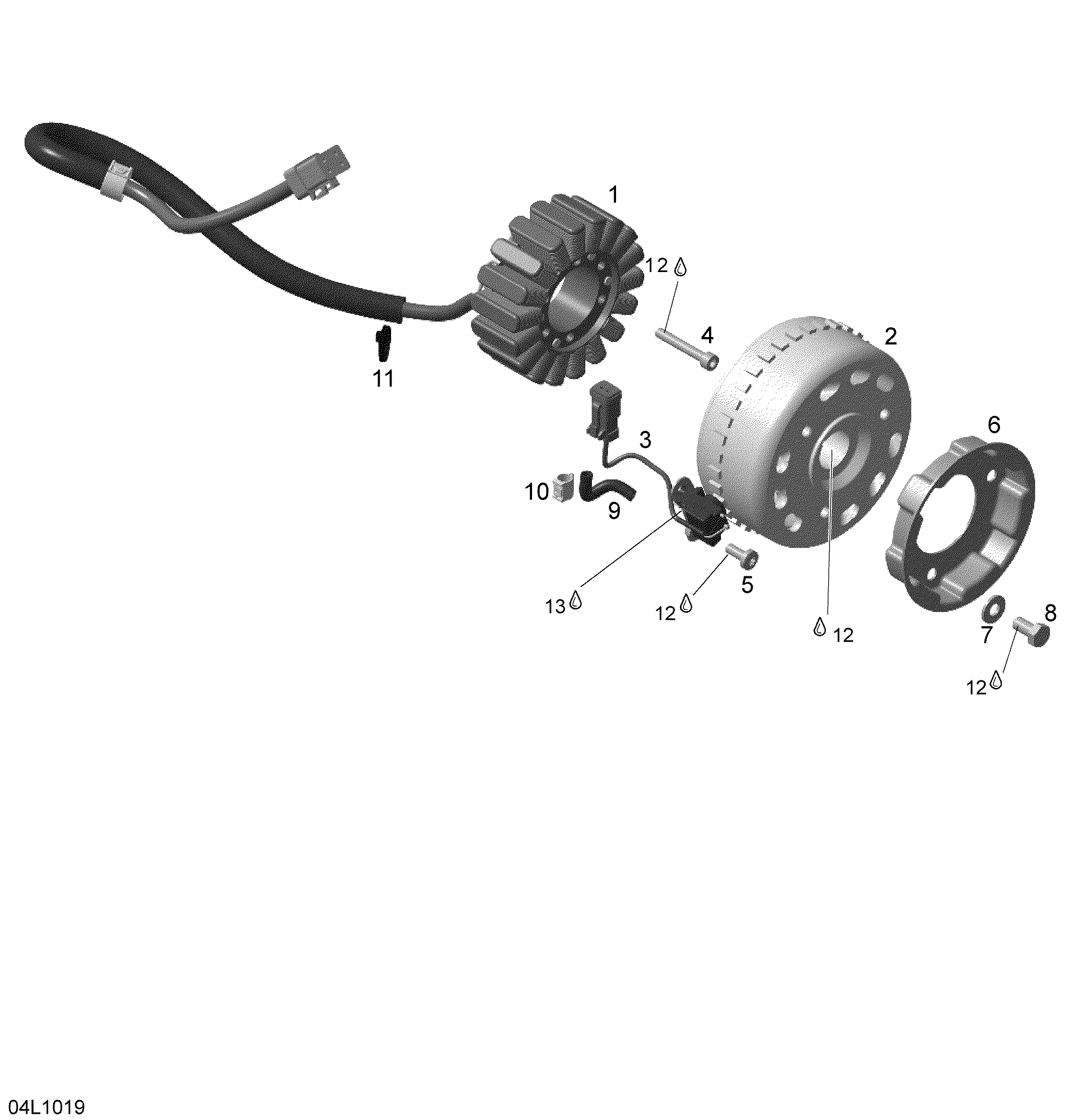

03- Magneto для BRP Ski-Doo Expedition TUV SE 600HO SDI XU - 2010
-
№АртикулНазвание
-
1420866068 Stator Ass'yStator Ass'y
-
2420866041 FlywheelFlywheel
-
3410922963 Pick-up Ass'yPick-up Ass'y
-
4420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
5420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
6420852532 Starting PulleyStarting Pulley
-
7420827405 Flat WasherFlat Washer
-
8207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
9420460012 TubeTube
-
10420960890 ClipClip
-
11420866714 Tie RapTie Rap
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
