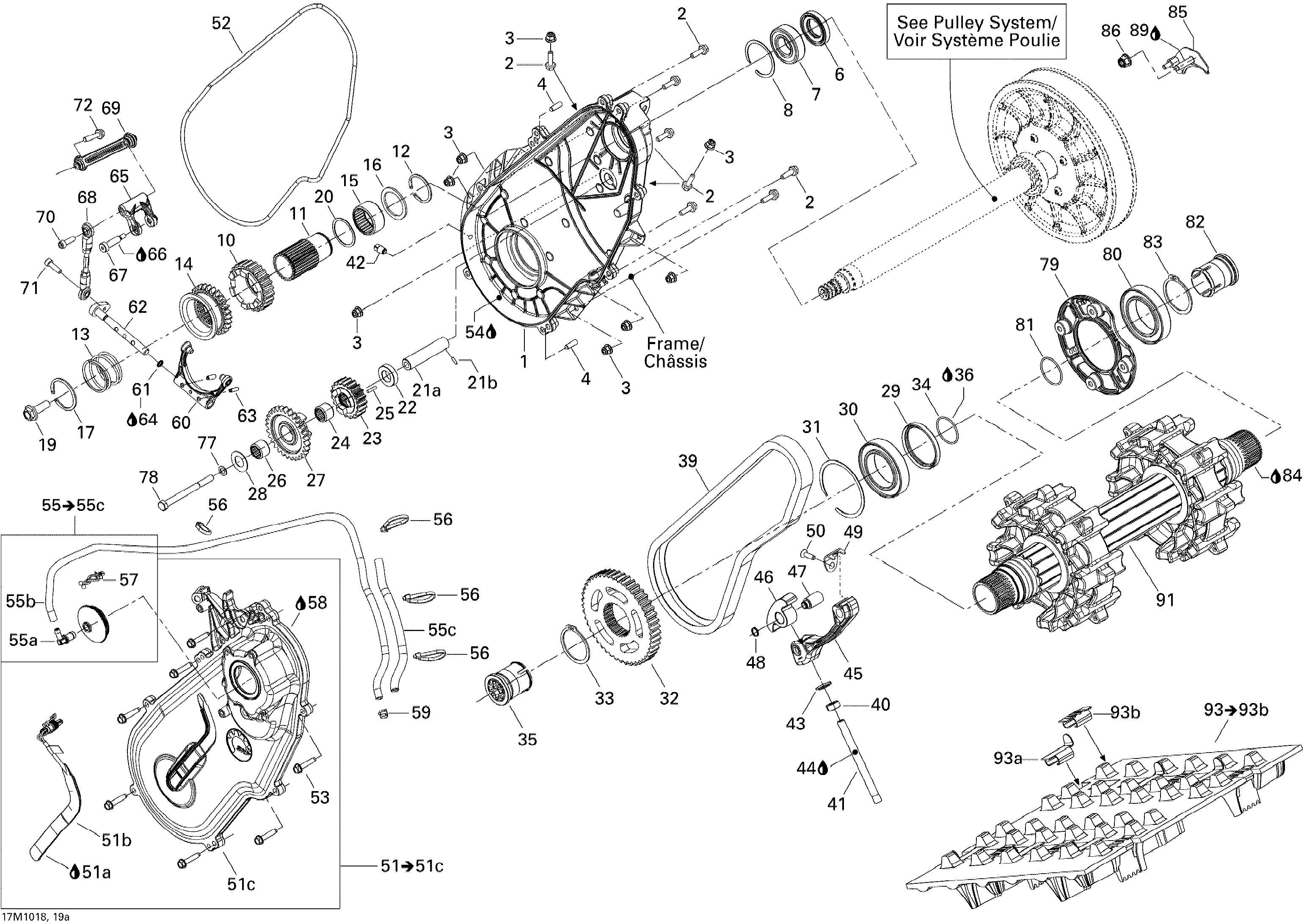

05- Drive System LE 1200 для BRP Ski-Doo Grand-Touring LE 1200 - 2010
-
№АртикулНазвание
-
1504152866 Chaincase. LEChaincase. LE
-
2207662034 Hex. Flanged ScrewHex. Flanged Screw
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4250400048 Dowel PinDowel Pin
-
6415049300 Oil SealOil Seal
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
10504152961 Sprocket, 24 Teeth. 24DSprocket, 24 Teeth. 24D
-
11504152979 CouplingCoupling
-
12293370054 CirclipCirclip
-
13504152899 Spring ReleaseSpring Release
-
14504152960 Slinding Gear, 27 TeethSlinding Gear, 27 Teeth
-
15293350063 Needle BearingNeedle Bearing
-
16504152689 WasherWasher
-
17293370055 CirclipCirclip
-
19207503044 Hex. Screw M10 X 1.5 X 30Hex. Screw M10 X 1.5 X 30
-
20504152862 WasherWasher
-
21a504083100 Reverse ShaftReverse Shaft
-
21b250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
22504078700 RingRing
-
23581096900 Sprock Ass'y, 19 TeethSprock Ass'y, 19 Teeth
-
24293350064 Needle BearingNeedle Bearing
-
25570048600 Alignement RodAlignement Rod
-
26293350064 Needle BearingNeedle Bearing
-
27504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
28504077300 SpacerSpacer
-
29504152571 SealSeal
-
30504152573 Ball BearingBall Bearing
-
31504152582 CirclipCirclip
-
32504152593 Sprocket, 45 Teeth. 45DSprocket, 45 Teeth. 45D
-
33504152572 CirclipCirclip
-
34293300122 O-RingO-Ring
-
35504152619 Magnetic CapMagnetic Cap
-
36293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
39504152629 Drive Chain, 104 Links. 104MDrive Chain, 104 Links. 104M
-
40232006414 Hex. Nut M10Hex. Nut M10
-
41504152602 Adjustment ScrewAdjustment Screw
-
42504152636 Magnetic Plug. LEMagnetic Plug. LE
-
43250200100 Bonded WasherBonded Washer
-
44413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
45504152748 Chain TensionerChain Tensioner
-
46504152739 Slider ChainSlider Chain
-
47504152841 Tensionner AxleTensionner Axle
-
48504152282 CirclipCirclip
-
49504152722 Chain SliderChain Slider
-
50205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
51504152897 Chaincase Cover Ass'y. LEChaincase Cover Ass'y. LE
-
51a293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
51b504152896 SensorSensor
-
52293300130 O-RingO-Ring
-
53250000360 Flanged Hex. Screw M6 X 30. LEFlanged Hex. Screw M6 X 30. LE
-
54413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
55504152860 CapCap
-
55a414580700 Male ConnectorMale Connector
-
55b415080200 Hose, PolyurethaneHose, Polyurethane
-
55c504152900 Protector Tube, 9.53mm - 200mmProtector Tube, 9.53mm - 200mm
-
56293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
57291000714 BracketBracket
-
58413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
59414554800 Spring ClampSpring Clamp
-
60504152954 Fork Ass'yFork Ass'y
-
61414484400 O-RingO-Ring
-
62504152956 Welded Axel ForkWelded Axel Fork
-
63250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
64293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
65504152788 LeverLever
-
66293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
67250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
68504152951 Ball JointBall Joint
-
69504152766 Double Ball JointDouble Ball Joint
-
70207564044 Socket Head Screw M6 X 40, Scotch GripSocket Head Screw M6 X 40, Scotch Grip
-
71205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
72233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
77504082900 WasherWasher
-
78207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
79504152949 Housing BearingHousing Bearing
-
80293350059 Ball BearingBall Bearing
-
81293300122 O-RingO-Ring
-
82504152619 Magnetic CapMagnetic Cap
-
83504152572 CirclipCirclip
-
84293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
85504152974 Bearing HousingBearing Housing
-
86233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
89293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
91415129446 Drive Axle Ass'yDrive Axle Ass'y
-
93504152734 Track Ass'y, 16X137X1.2. TR16X137X1.2 (Europe)Track Ass'y, 16X137X1.2. TR16X137X1.2 (Europe)
-
93504152755 Track Ass'y 15X137X1.0. TR15X137X1.0BTrack Ass'y 15X137X1.0. TR15X137X1.0B
-
93a504152410 GuideGuide
-
93b504152651 CleatCleat
