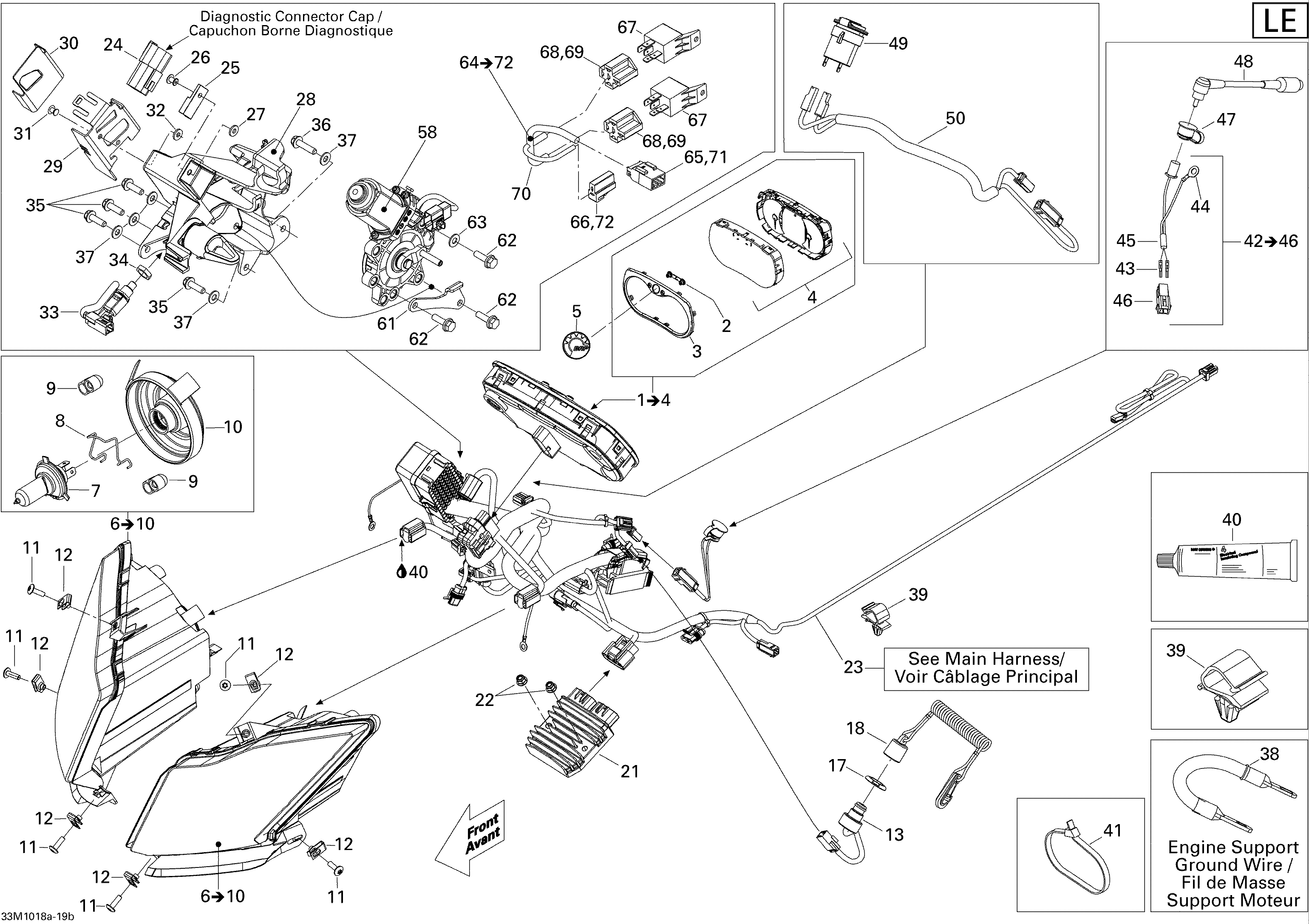

10- Electrical System 1200 LE для BRP Ski-Doo Grand-Touring LE 1200 - 2010
-
№АртикулНазвание
-
1515176954 SpeedometerSpeedometer
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH Headlamp Ass'y. Includes 6 to 10RH Headlamp Ass'y. Includes 6 to 10
-
6517304195 LH Headlamp Ass'y. Includes 6 to 10LH Headlamp Ass'y. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515176815 Dess SwitchDess Switch
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176461 DESS CapDESS Cap
-
21278002021 RegulatorRegulator
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23515176837 Main HarnessMain Harness
-
24515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
25270000141 ClipClip
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27234051410 Flat Washer M5Flat Washer M5
-
28515176544 PlatePlate
-
29515176514 Fuse HolderFuse Holder
-
30515176637 ProtectorProtector
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32234051410 Flat Washer M5Flat Washer M5
-
33515176472 Switch Ass'ySwitch Ass'y
-
34250000373 Brass NutBrass Nut
-
35210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
36210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
37224061121 Flat WasherFlat Washer
-
38515176358 Ground WireGround Wire
-
39515176795 ClipClip
-
40293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
41293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
42515175799 Visor Plug Harness. Includes 42 to 46Visor Plug Harness. Includes 42 to 46
-
43515175232 Male TerminalMale Terminal
-
44515175172 Open BarrelOpen Barrel
-
45515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
46515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
47572103300 CapCap
-
48515175851 ExtensionExtension
-
49710001248 Outlet DCOutlet DC
-
50515176879 Outel DC HarnessOutel DC Harness
-
58515176480 Motor Ass'yMotor Ass'y
-
61515176821 PlatePlate
-
62207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
63224061121 Flat WasherFlat Washer
-
64515176760 Reverse Cable. Includes 64 to 72Reverse Cable. Includes 64 to 72
-
65515175232 Male TerminalMale Terminal
-
66515175282 Female TerminalFemale Terminal
-
67410113200 RelayRelay
-
68409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
69561503100 Female TerminalFemale Terminal
-
70415079900 Tubing 10 mmTubing 10 mm
-
71515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
72515176550 Female Terminal HousingFemale Terminal Housing
