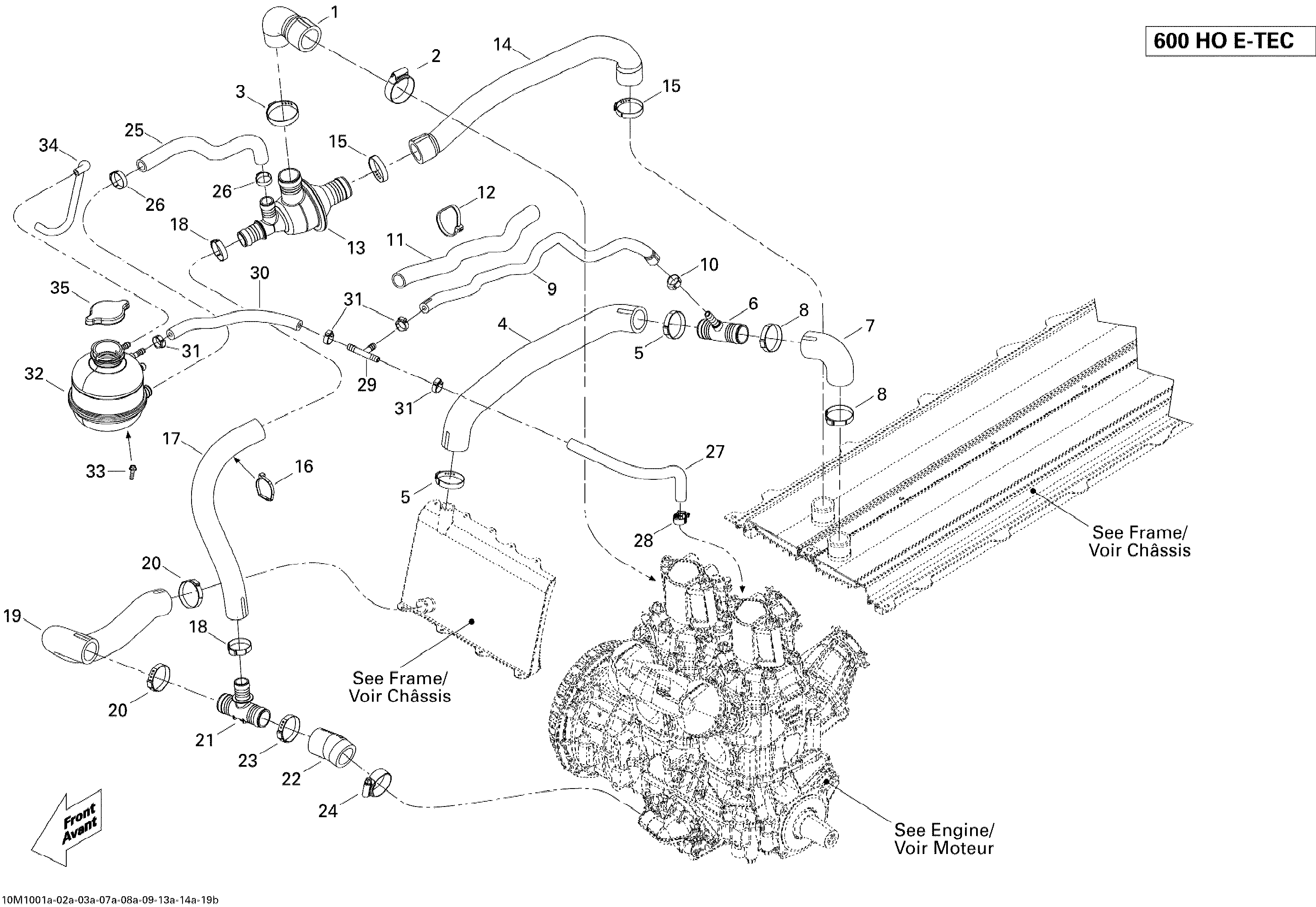

01- Cooling System для BRP Ski-Doo GSX LE 600HO ETEC - 2010
-
№АртикулНазвание
-
1509000678 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000529 Oetiker Gear ClampOetiker Gear Clamp
-
4509000670 Radiator HoseRadiator Hose
-
5509000529 Oetiker Gear ClampOetiker Gear Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 Radiator HoseRadiator Hose
-
8509000529 Oetiker Gear ClampOetiker Gear Clamp
-
9509000503 Breather HoseBreather Hose
-
10293650047 Oetiker ClampOetiker Clamp
-
11415080000 Tubing 16 mmTubing 16 mm
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13509000499 Thermostat HousingThermostat Housing
-
14509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
15509000529 Oetiker Gear ClampOetiker Gear Clamp
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17509000672 Bypass HoseBypass Hose
-
18293650099 Oetiker Gear ClampOetiker Gear Clamp
-
19509000673 Radiator HoseRadiator Hose
-
20509000529 Oetiker Gear ClampOetiker Gear Clamp
-
21509000372 T-FittingT-Fitting
-
22509000675 Radiator HoseRadiator Hose
-
23509000181 Oetiker Gear ClampOetiker Gear Clamp
-
24509000443 Aba Gear ClampAba Gear Clamp
-
25509000676 Filling HoseFilling Hose
-
26509000442 Oetiker Gear ClampOetiker Gear Clamp
-
27509000518 Bleeder HoseBleeder Hose
-
28293650170 Tridon Gear ClampTridon Gear Clamp
-
29293710024 T-FittingT-Fitting
-
30509000519 Bleeder HoseBleeder Hose
-
31293650046 Oetiker ClampOetiker Clamp
-
32509000368 Coolant TankCoolant Tank
-
33241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
34415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
35509000187 Pressure CapPressure Cap
