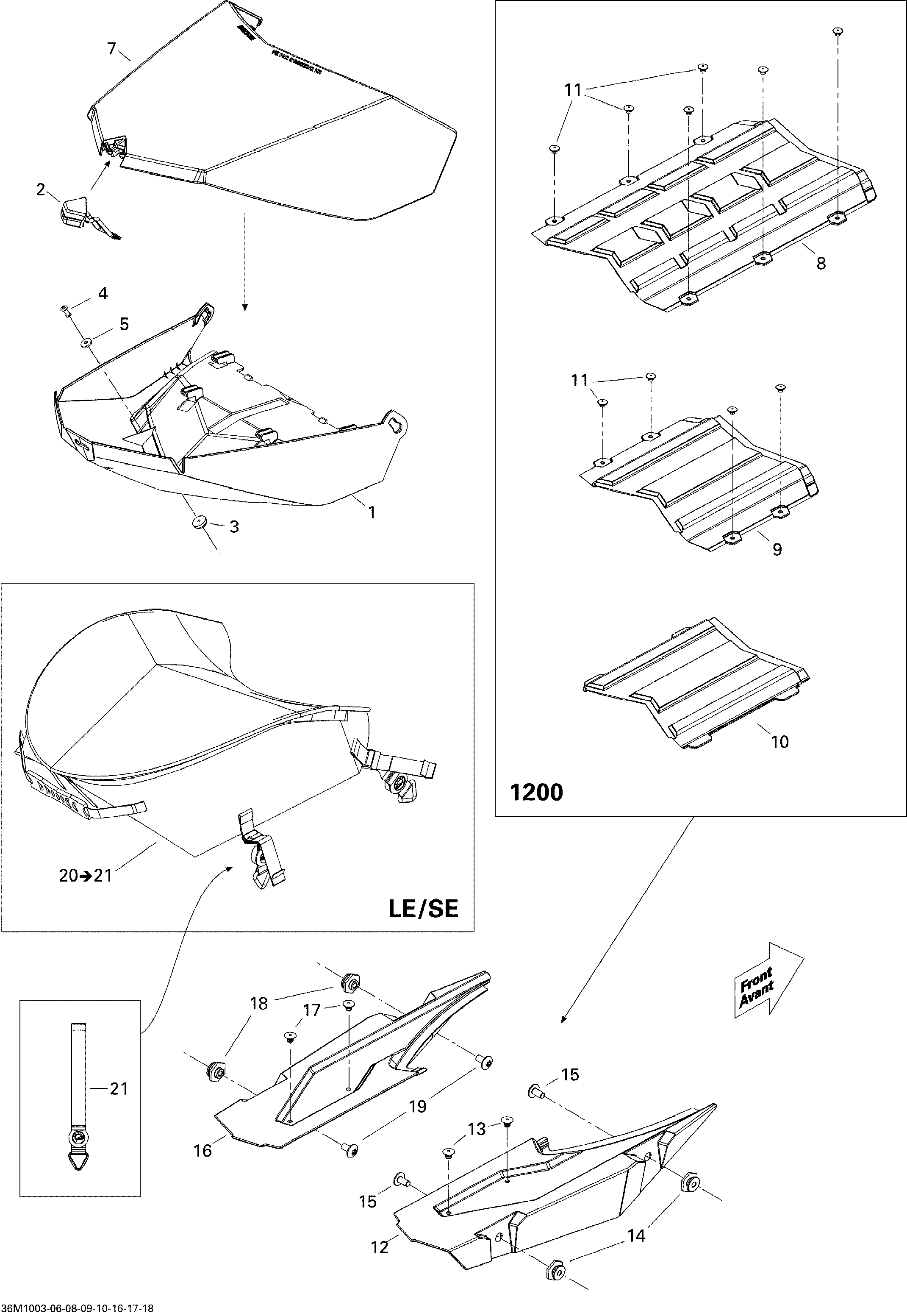

09- Luggage Rack для BRP Ski-Doo GSX LE 600HO ETEC - 2010
-
№АртикулНазвание
-
1511000487 TrunkTrunk
-
2511000528 BracketBracket
-
3415018100 Rubber StopperRubber Stopper
-
4390401600 Pop Rivet 1/8''Pop Rivet 1/8''
-
5293150007 WasherWasher
-
7511000687 Trunk CoverTrunk Cover
-
12511000483 RH Tunnel RailRH Tunnel Rail
-
13293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
14520000646 Anchor LinkAnchor Link
-
15250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
16511000484 LH Tunnel RailLH Tunnel Rail
-
17293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
18520000646 Anchor LinkAnchor Link
-
19250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
20511000539 Rear Bag. Includes 20 to 21Rear Bag. Includes 20 to 21
-
21860200138 Fastener Button With StrapFastener Button With Strap
