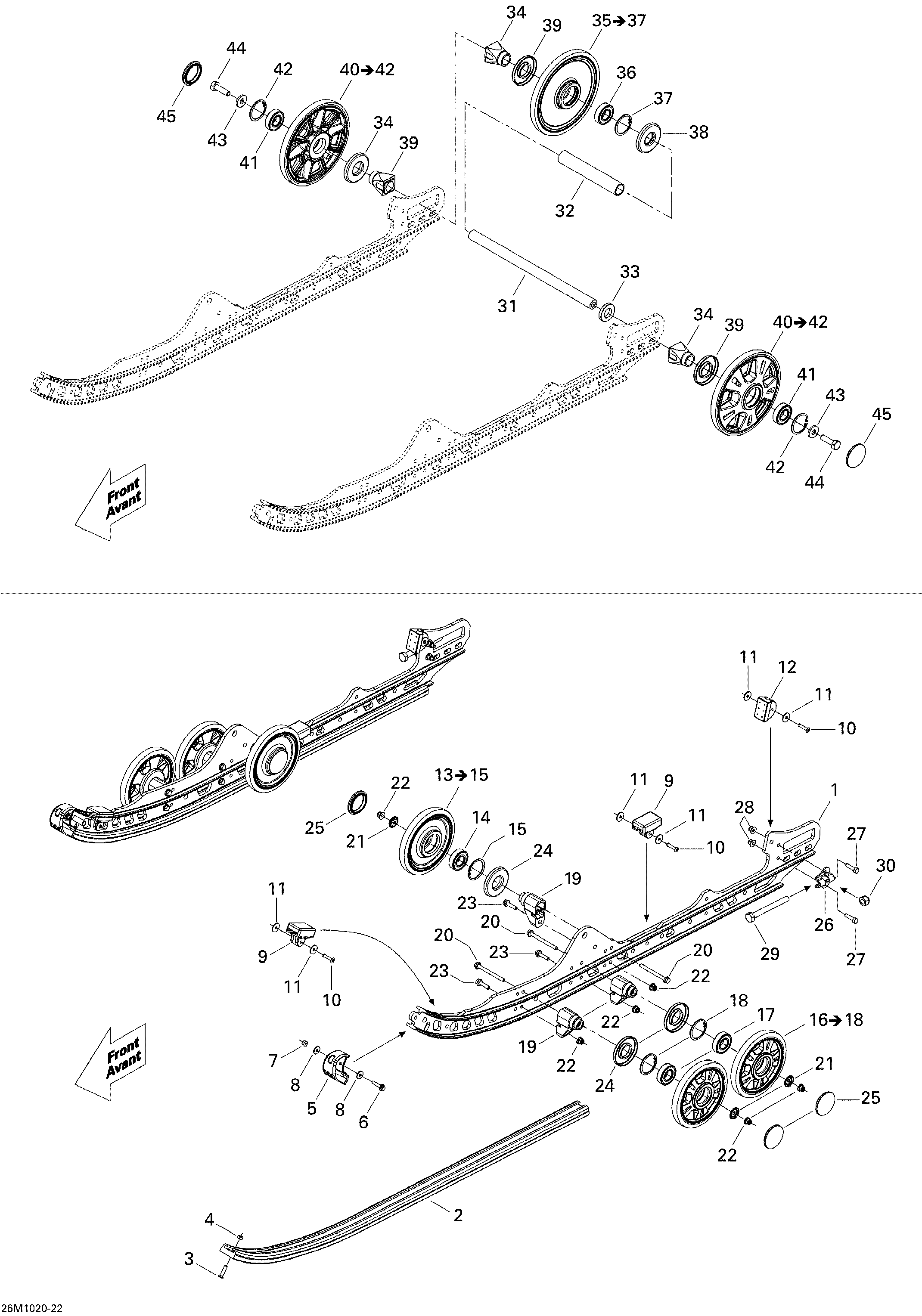

08- Rear Suspension для BRP Ski-Doo GSX Sport 550F - 2010
-
№АртикулНазвание
-
1503192152 Runner 120''Runner 120''
-
2503191301 Slider Shoe 120'', BlackSlider Shoe 120'', Black
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503191316 Wheel 141 Ass'y. Includes 13 to 15Wheel 141 Ass'y. Includes 13 to 15
-
14503190396 Ball BearingBall Bearing
-
15415129371 Retaining RingRetaining Ring
-
16503191622 Wheel 141 mm Ass'y, Full Moon. Includes 16 to 18Wheel 141 mm Ass'y, Full Moon. Includes 16 to 18
-
17503190396 Ball BearingBall Bearing
-
18415129371 Retaining RingRetaining Ring
-
19503191833 SupportSupport
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21503191820 Wheel Cup M6Wheel Cup M6
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
24503190434 Labyrinth SealLabyrinth Seal
-
25570063600 Wheel CapWheel Cap
-
26503190380 TensionerTensioner
-
27207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
28233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
30233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
31503190429 Rear AxleRear Axle
-
32503190430 SpacerSpacer
-
33503190432 WasherWasher
-
34503190428 Rear Wheel SpacerRear Wheel Spacer
-
35503191559 Wheel, 180 mm, Black. Includes 35 to 37Wheel, 180 mm, Black. Includes 35 to 37
-
36503190396 Ball BearingBall Bearing
-
37415129371 Retaining RingRetaining Ring
-
38503190682 Labyrinth SealLabyrinth Seal
-
39503190434 Labyrinth SealLabyrinth Seal
-
40503191627 Wheel, 180 mm, Full MoonWheel, 180 mm, Full Moon
-
41503190396 Ball BearingBall Bearing
-
42415129371 Retaining RingRetaining Ring
-
43503190439 WasherWasher
-
44250000019 Hex. Screw With NylonHex. Screw With Nylon
-
45570063600 Wheel CapWheel Cap
