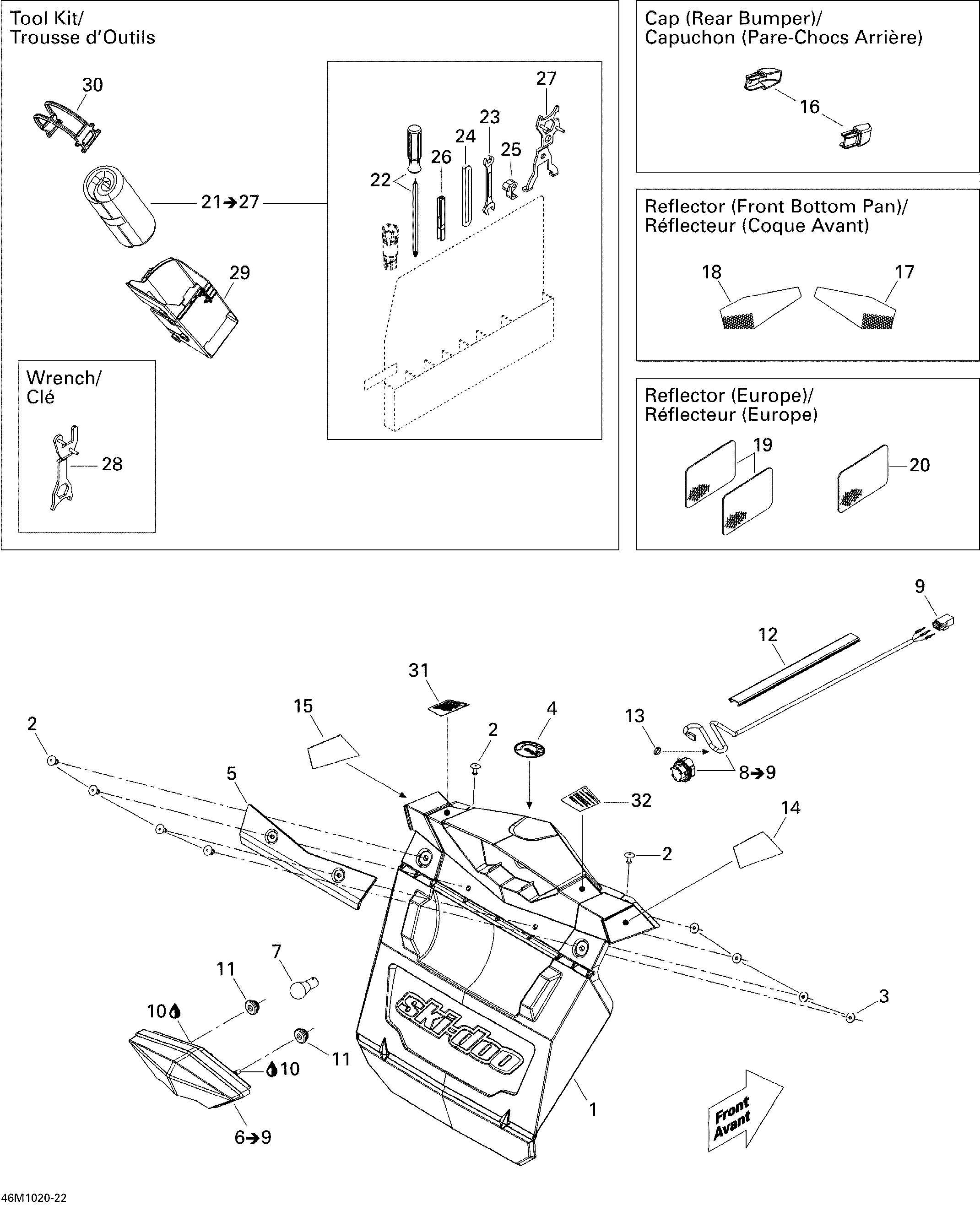

09- Utilities для BRP Ski-Doo GSX Sport 550F - 2010
-
№АртикулНазвание
-
1520000704 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219902544 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000587 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000758 BulbBulb
-
8520000677 Wiring Harness. Includes 8 to 9Wiring Harness. Includes 8 to 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11705003666 Rubber GrommetRubber Grommet
-
12520000829 Radiator TrimRadiator Trim
-
13293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
14520000716 RH Rear ReflectorRH Rear Reflector
-
15520000717 LH Rear ReflectorLH Rear Reflector
-
16520000567 CapCap
-
17520000718 RH Front ReflectorRH Front Reflector
-
18520000719 LH Front ReflectorLH Front Reflector
-
21529000045 Tool Kit. Includes 21 to 27Tool Kit. Includes 21 to 27
-
22529000004 Screw DriverScrew Driver
-
23529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
24412500200 Starter Rope, MeterStarter Rope, Meter
-
25529019400 Starter GripStarter Grip
-
26529035501 Spacing ToolSpacing Tool
-
27520000956 Wrench SuspensionWrench Suspension
-
28520000721 WrenchWrench
-
29520000894 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
31520000695 Warning Decal, SecurityWarning Decal, Security
-
32520000697 Warning Decal, LoadWarning Decal, Load
