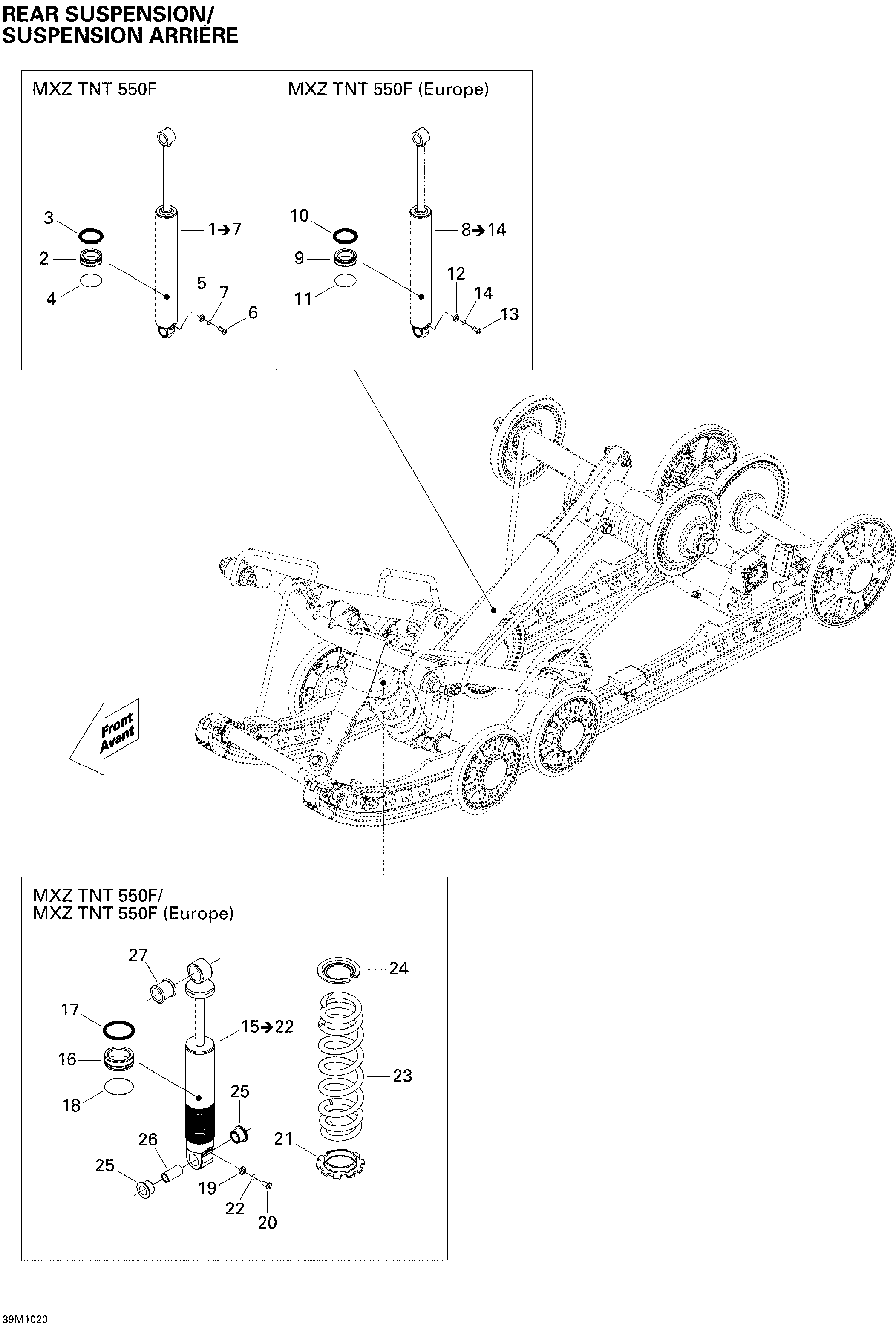

08- Rear Suspension Shocks для BRP Ski-Doo MX Z TNT 550F - 2010
-
№АртикулНазвание
-
1503192120 Rear Shock. Includes 1 to 7Rear Shock. Includes 1 to 7
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8503192023 Rear Shock. Includes 8 to 14, EuropeRear Shock. Includes 8 to 14, Europe
-
9503189309 Free Piston. EuropeFree Piston. Europe
-
10414888312 O-Ring. EuropeO-Ring. Europe
-
11503189308 Piston Ring. EuropePiston Ring. Europe
-
12505070398 Air Valve Ring. EuropeAir Valve Ring. Europe
-
13505070399 Screw. EuropeScrew. Europe
-
14505070400 O-Ring. EuropeO-Ring. Europe
-
15503191791 Center Shock. Includes 15 to 22Center Shock. Includes 15 to 22
-
16503189309 Free PistonFree Piston
-
17414888312 O-RingO-Ring
-
18503189308 Piston RingPiston Ring
-
19505070398 Air Valve RingAir Valve Ring
-
20505070399 ScrewScrew
-
21414888316 Spring CollarSpring Collar
-
22505070400 O-RingO-Ring
-
23503191329 SpringSpring
-
24503192029 Spring StopperSpring Stopper
-
25503189117 CushionCushion
-
26503189282 BushingBushing
-
27503189271 CushionCushion
