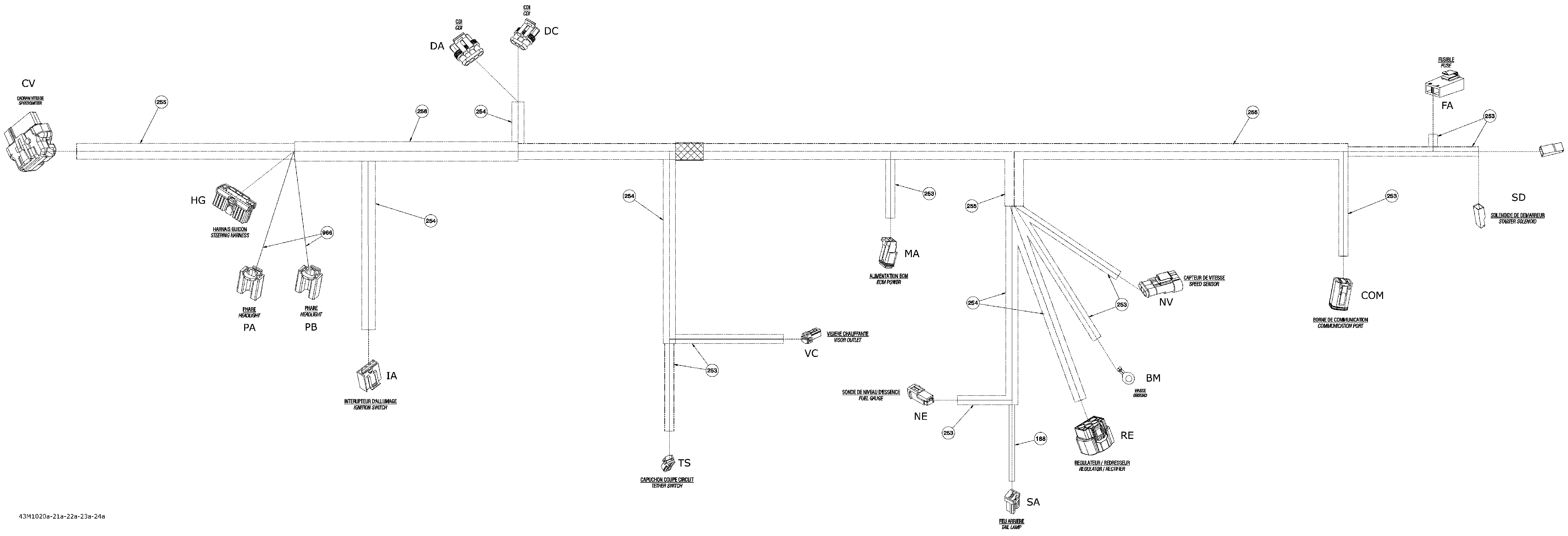

10- Electrical Harness 1 для BRP Ski-Doo MX Z TNT 550F - 2010
-
№АртикулНазвание
-
1515176882 Frame HarnessFrame Harness
-
3515175312 Blue Coding Vinyl TapeBlue Coding Vinyl Tape
-
188409902000 Tubing 12 mmTubing 12 mm
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
BM278000992 Open BarrelOpen Barrel
-
COM515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM278000632 Female TerminalFemale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
DA409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
DA515176621 Wire SealWire Seal
-
DA710001340 Female TerminalFemale Terminal
-
DC409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DC278001013 Wire SealWire Seal
-
DC278001014 Female TerminalFemale Terminal
-
FA710000992 ClipClip
-
FA293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FA409004000 Fuse HolderFuse Holder
-
FA409004200 Female TerminalFemale Terminal
-
HG515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
HG515175282 Female TerminalFemale Terminal
-
HG515175231 Female TerminalFemale Terminal
-
IA710000272 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
IA710000273 Lock, 4 CircuitsLock, 4 Circuits
-
IA710000274 Female TerminalFemale Terminal
-
MA515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
MA515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
MA278000632 Female TerminalFemale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV710000568 HousingHousing
-
NV515176621 Wire SealWire Seal
-
NV515176164 Male TerminalMale Terminal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
RE515176530 ConnectorConnector
-
RE515176594 SealSeal
-
RE515176531 TerminalTerminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SD409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
SD409010100 Female TerminalFemale Terminal
-
TS515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
TS515175231 Female TerminalFemale Terminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
