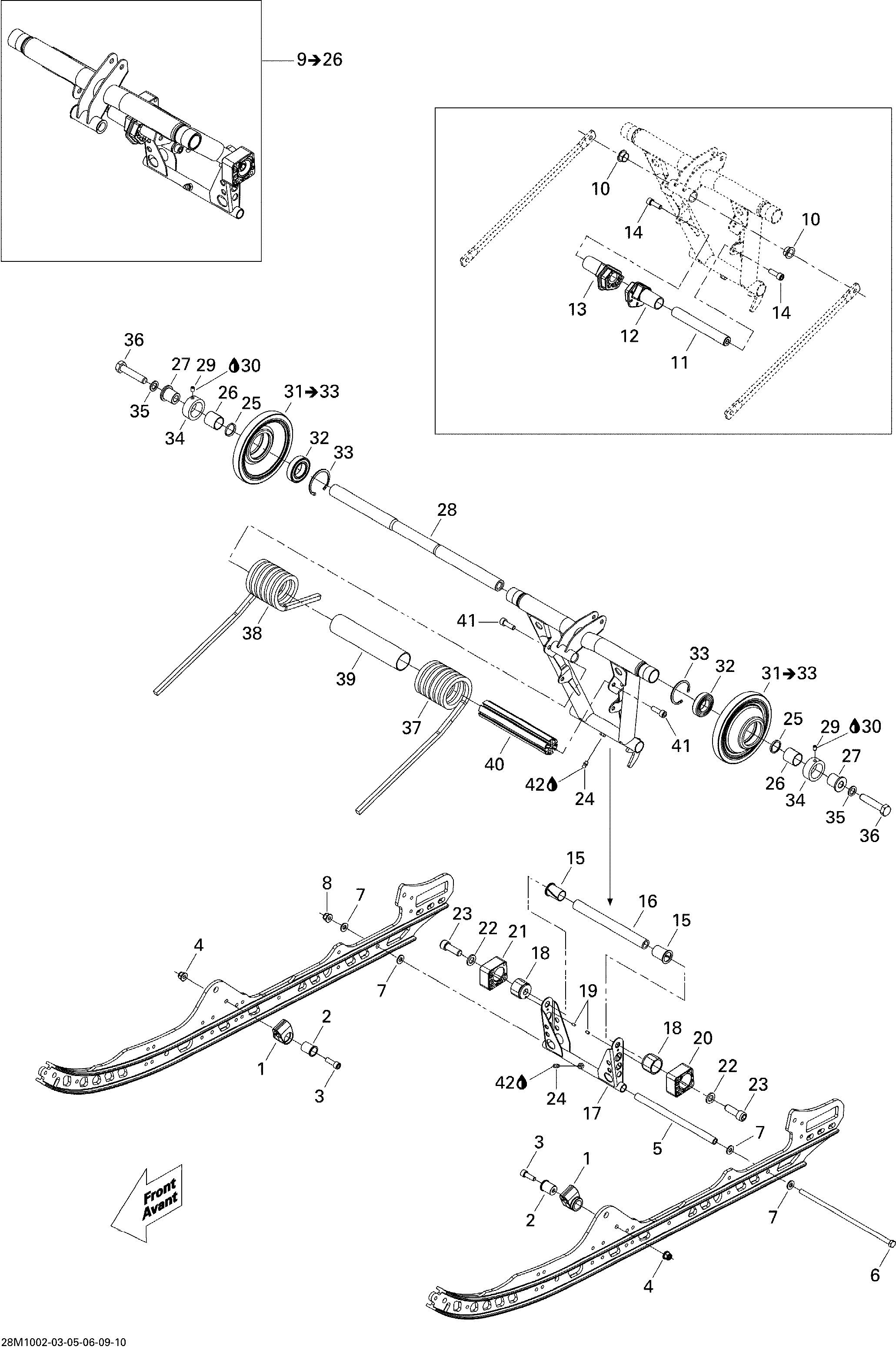

08- Rear Arm для BRP Ski-Doo MX Z X 600HO ETEC - 2010
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503189156 Pivot Arm AxlePivot Arm Axle
-
6732601198 Long Bolt M8Long Bolt M8
-
7503189157 WasherWasher
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9503191785 Rear Arm Ass'y. Includes 9 to 26Rear Arm Ass'y. Includes 9 to 26
-
10503191555 Swivel BushingSwivel Bushing
-
11503191178 Spring Cam AxeSpring Cam Axe
-
12503191191 LH Spring CamLH Spring Cam
-
13503191190 RH Spring CamRH Spring Cam
-
14205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
15503191640 CushionCushion
-
16503190687 Lower ShaftLower Shaft
-
17503191302 Pivot ArmPivot Arm
-
18503189488 Block GuideBlock Guide
-
19250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
20503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
21503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
22503189148 WasherWasher
-
23205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
24408200700 Grease FittingGrease Fitting
-
25503191774 WasherWasher
-
26503191773 BushingBushing
-
27503191775 BushingBushing
-
28503191776 Upper ShaftUpper Shaft
-
29206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31503191777 Wheel 144. Includes 31 to 33Wheel 144. Includes 31 to 33
-
32503191778 Ball BearingBall Bearing
-
33415129371 Retaining RingRetaining Ring
-
34503191782 Retaining RingRetaining Ring
-
35503189276 WasherWasher
-
36207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
37503191613 LH Spring, SquareLH Spring, Square
-
38503191612 RH Spring, SquareRH Spring, Square
-
39503191345 Plastic BushingPlastic Bushing
-
40503191344 Spring AxleSpring Axle
-
41205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
42293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
