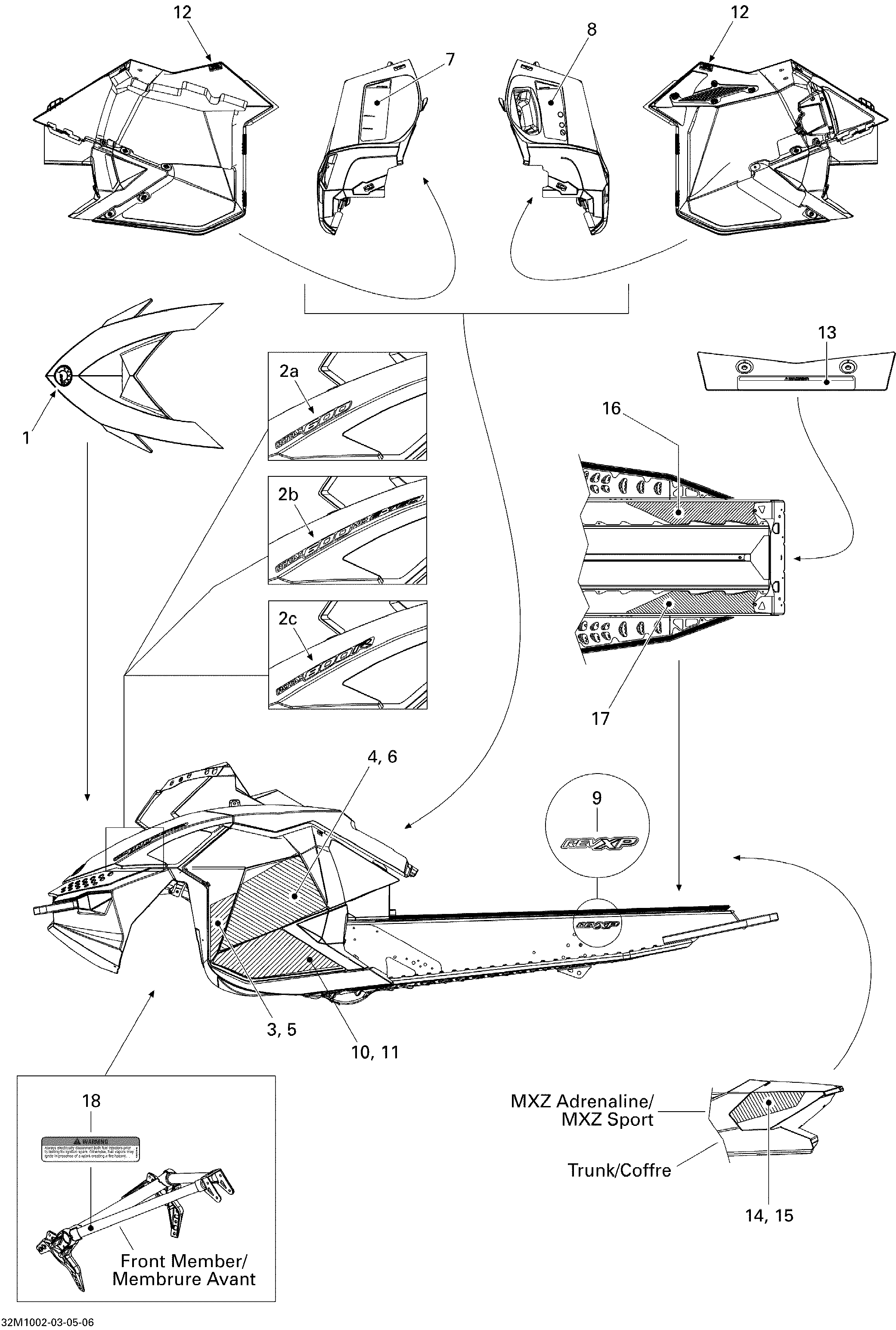

09- Decals 600HO ETEC для BRP Ski-Doo MX Z X 600HO ETEC - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2b516003532 Hood Decal, Rotax 600 HO E-TEC. White-White ModelHood Decal, Rotax 600 HO E-TEC. White-White Model
-
2b516003767 Hood Decal, Rotax 600 HO E-TEC. Black-Black ModelHood Decal, Rotax 600 HO E-TEC. Black-Black Model
-
3516004040 RH Front Side Decal. White-White ModelRH Front Side Decal. White-White Model
-
3516004042 RH Front Side Decal. Black-Black ModelRH Front Side Decal. Black-Black Model
-
4516004048 RH Side Decal. White-White ModelRH Side Decal. White-White Model
-
4516004014 RH Side Decal. Black-Black ModelRH Side Decal. Black-Black Model
-
5516004039 LH Front Side Decal. White-White ModelLH Front Side Decal. White-White Model
-
5516004041 LH Front Side Decal. Black-Black ModelLH Front Side Decal. Black-Black Model
-
6516004047 LH Side Decal. White-White ModelLH Side Decal. White-White Model
-
6516004013 LH Side Decal. Black-Black ModelLH Side Decal. Black-Black Model
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003990 Frame Decal, REV XP. White-White ModelFrame Decal, REV XP. White-White Model
-
9516003989 Frame Decal, REV XP. Black-Black ModelFrame Decal, REV XP. Black-Black Model
-
10516004008 RH Lower Decal. White-White ModelRH Lower Decal. White-White Model
-
10516004016 RH Lower Decal. Black-Black ModelRH Lower Decal. Black-Black Model
-
11516004007 LH Lower Decal. White-White ModelLH Lower Decal. White-White Model
-
11516004015 LH Lower Decal. Black-Black ModelLH Lower Decal. Black-Black Model
-
12516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
13516003578 Warning Decal, TrackWarning Decal, Track
-
16516003858 RH Frame DecalRH Frame Decal
-
17516003857 LH Frame DecalLH Frame Decal
-
18516003940 Warning Decal, InjectorsWarning Decal, Injectors
