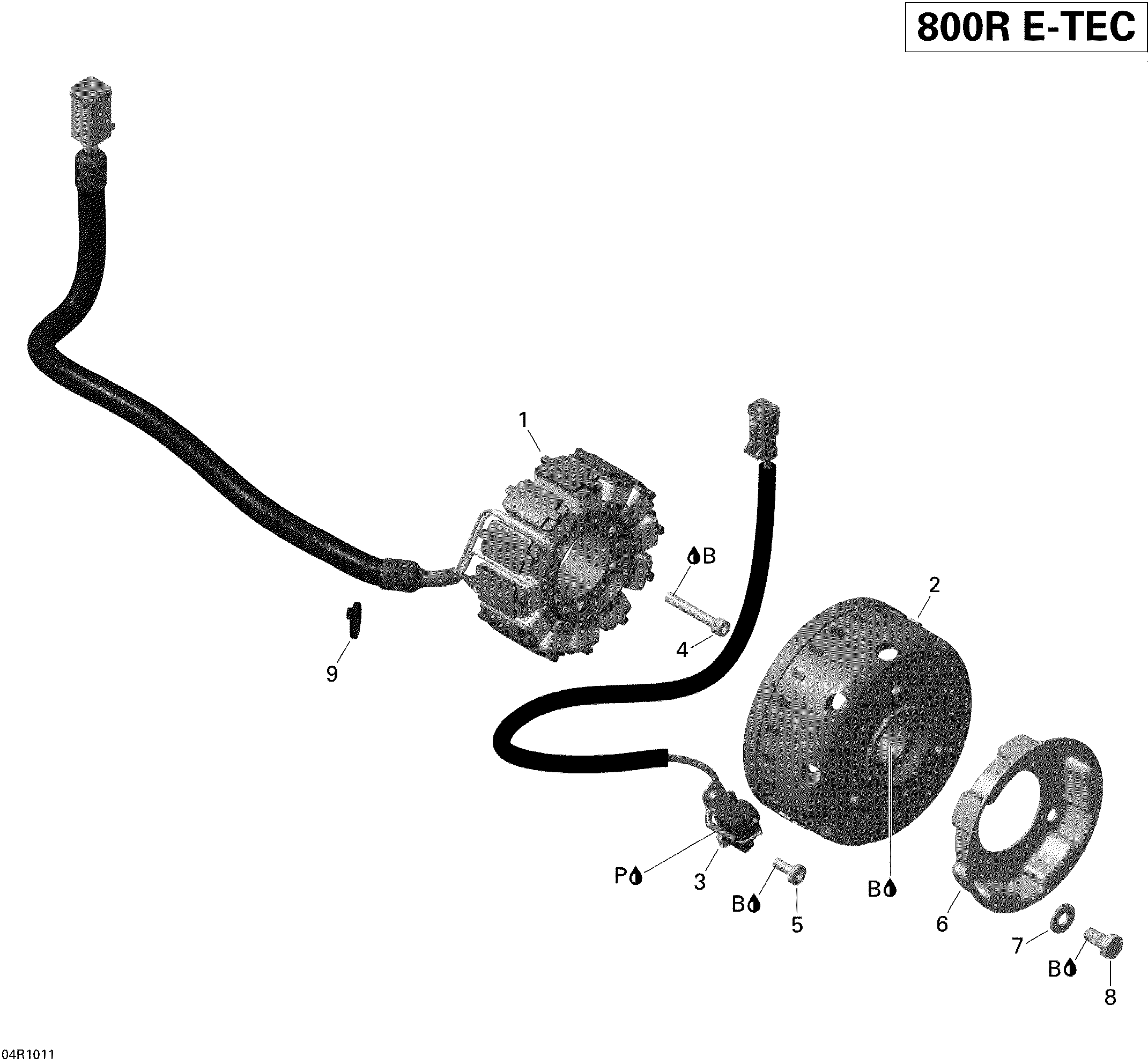

03- Magneto V2 для BRP Ski-Doo MX Z X 800R ETEC - 2010
-
№АртикулНазвание
-
1420665433 Stator PlateStator Plate
-
2420665449 FlywheelFlywheel
-
3410922969 Pick-Up Ass'yPick-Up Ass'y
-
4420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
5420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
9420866714 Tie RapTie Rap
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
