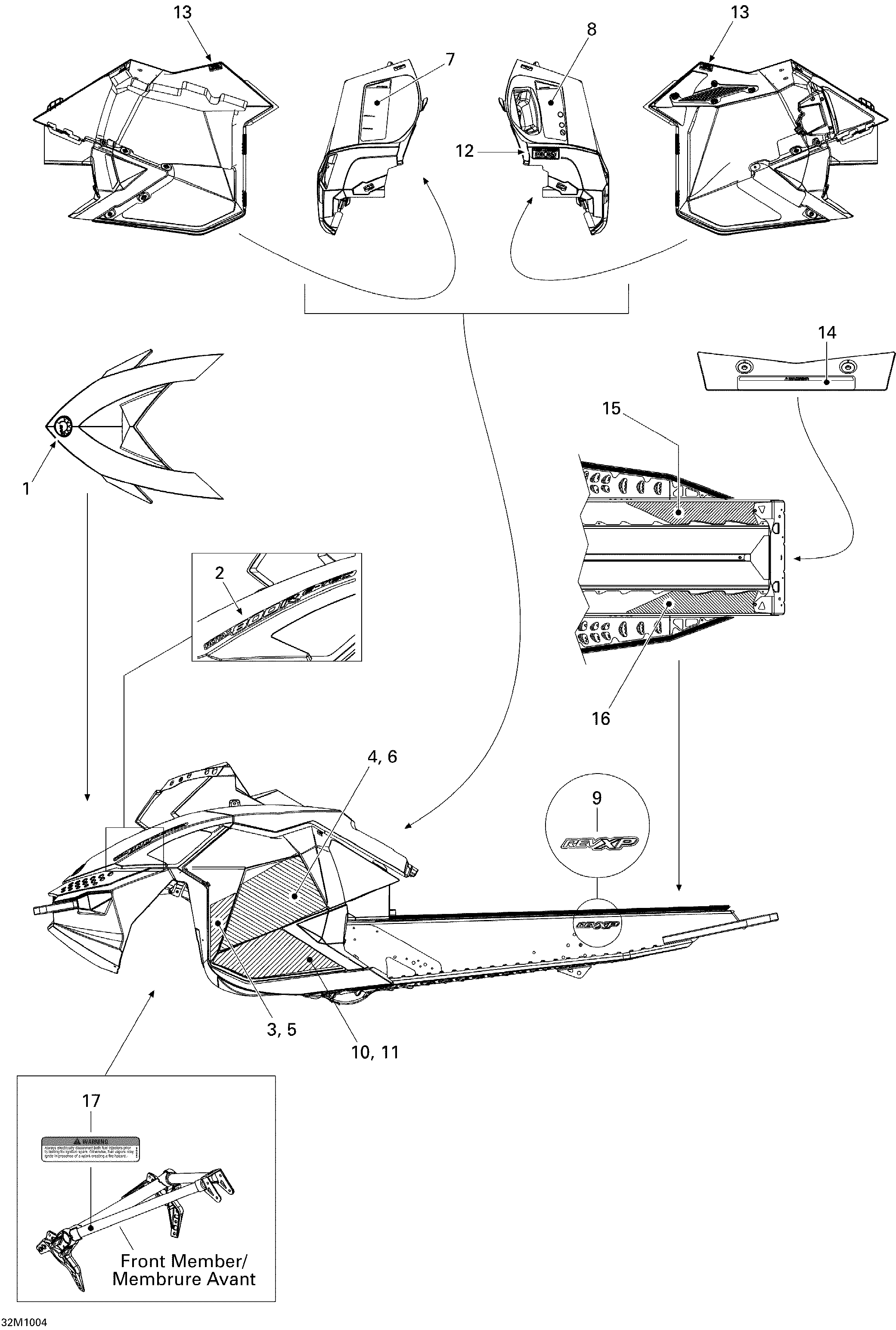

09- Decals для BRP Ski-Doo MX Z X 800R ETEC - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2516004253 Hood Decal, Rotax 800R E-TECHood Decal, Rotax 800R E-TEC
-
3516004042 RH Front Side DecalRH Front Side Decal
-
4516004014 RH Side DecalRH Side Decal
-
5516004041 LH Front Side DecalLH Front Side Decal
-
6516004013 LH Side DecalLH Side Decal
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003989 Frame Decal, REV XPFrame Decal, REV XP
-
10516004016 RH Lower DecalRH Lower Decal
-
11516004015 LH Lower DecalLH Lower Decal
-
12516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
13516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
14516003578 Warning Decal, TrackWarning Decal, Track
-
15516003858 RH Frame DecalRH Frame Decal
-
16516003857 LH Frame DecalLH Frame Decal
-
17516003940 Warning Decal, InjectorsWarning Decal, Injectors
