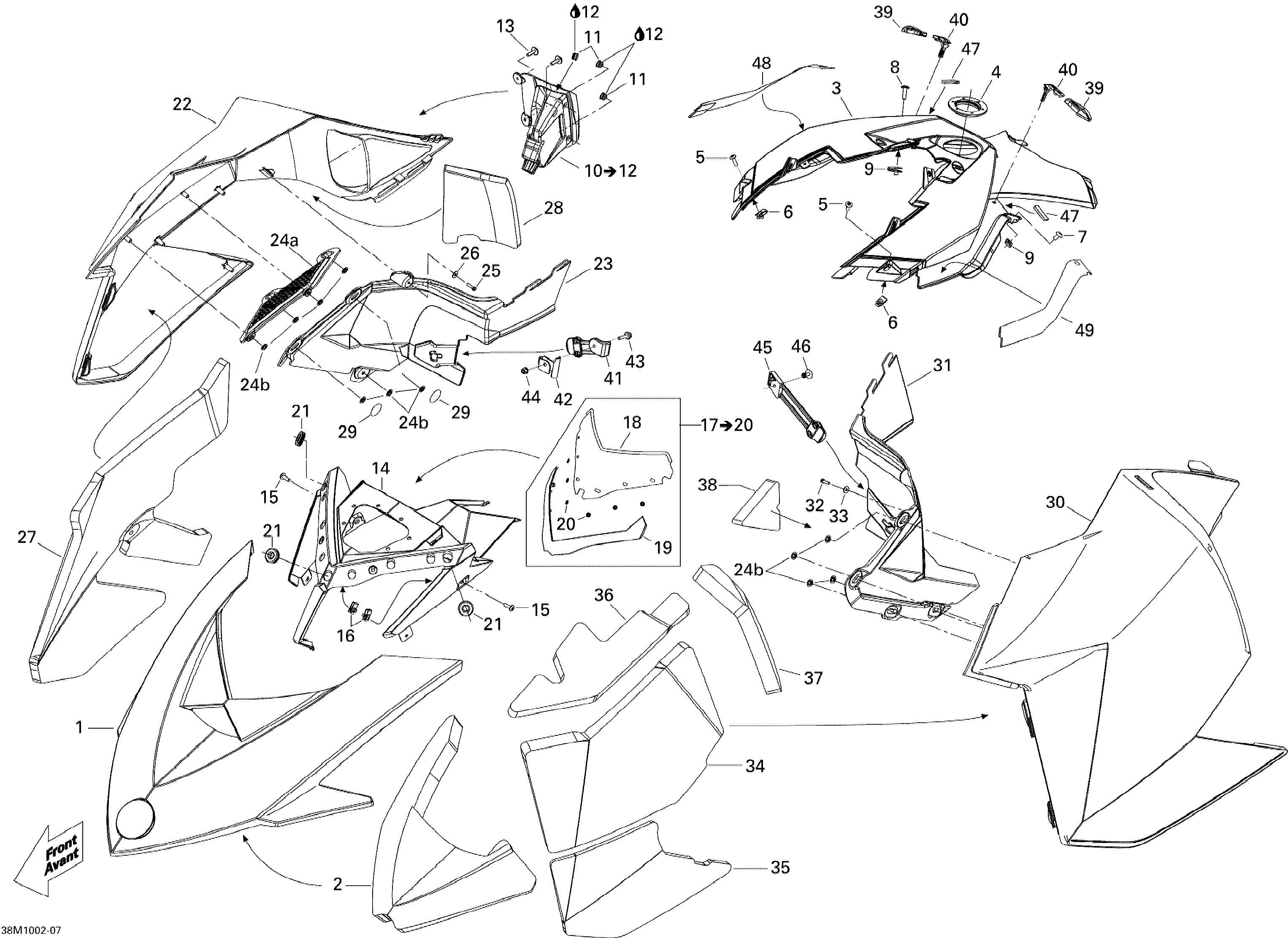

09- Hood 800R PTEK для BRP Ski-Doo MX Z X 800R PTEK - 2010
-
№АртикулНазвание
-
1517304530 Hood. Black-Black ModelHood. Black-Black Model
-
1517304531 Hood. White-White ModelHood. White-White Model
-
2517303990 Hood FoamHood Foam
-
3517303921 Console. 800R PTEK, Black-Black ModelConsole. 800R PTEK, Black-Black Model
-
3517304109 Console. 800R PTEK, White-White ModelConsole. 800R PTEK, White-White Model
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517304322 RH Console. Includes 10 to 12, Manual StarterRH Console. Includes 10 to 12, Manual Starter
-
11275500241 Cap, BlackCap, Black
-
12413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
13250000113 Screw M4 X 16, Type K-40. Manual StarterScrew M4 X 16, Type K-40. Manual Starter
-
14517303603 Indicator Support. Black-Black ModelIndicator Support. Black-Black Model
-
14517304415 Indicator Support. White-White ModelIndicator Support. White-White Model
-
15250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17517304227 Low Windshield Ass'y. Includes 17 to 20, Black-Black ModelLow Windshield Ass'y. Includes 17 to 20, Black-Black Model
-
17517304226 Low Windshield Ass'y. Includes 17 to 20, White-White ModelLow Windshield Ass'y. Includes 17 to 20, White-White Model
-
19517303757 Windshield SupportWindshield Support
-
20732610072 Push NutPush Nut
-
21517303756 GrommetGrommet
-
22517304029 RH Panel. Black-Black ModelRH Panel. Black-Black Model
-
22517304422 RH Panel. White-White ModelRH Panel. White-White Model
-
23517303671 RH Moulding Panel. Black-Black ModelRH Moulding Panel. Black-Black Model
-
23517304420 RH Moulding Panel, Viper Red. White-White ModelRH Moulding Panel, Viper Red. White-White Model
-
24a517303622 GrillGrill
-
24b732610072 Push NutPush Nut
-
25241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
26234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
27517304280 RH Center FoamRH Center Foam
-
28517303982 RH Panel Rear FoamRH Panel Rear Foam
-
29518325560 Adhesive PatchAdhesive Patch
-
30517304030 LH Panel. Black-Black ModelLH Panel. Black-Black Model
-
30517304426 LH Panel. White-White ModelLH Panel. White-White Model
-
31517303673 LH Moulding Panel. Black-Black ModelLH Moulding Panel. Black-Black Model
-
31517304427 LH Moulding Panel. White-White ModelLH Moulding Panel. White-White Model
-
32241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
33234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
34517303983 LH Panel Center FoamLH Panel Center Foam
-
35517303984 LH Panel Lower FoamLH Panel Lower Foam
-
36517303985 LH Panel Upper FoamLH Panel Upper Foam
-
37517303986 LH Panel Rear FoamLH Panel Rear Foam
-
38517303987 FoamFoam
-
39517304075 End Piece Latch. Black-Black ModelEnd Piece Latch. Black-Black Model
-
39517304435 End Piece Latch. White-White ModelEnd Piece Latch. White-White Model
-
40517303981 Panel LatchPanel Latch
-
41517303612 Panel LatchPanel Latch
-
42517304221 Latch SupportLatch Support
-
43207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
44233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
45517303808 Panel LatchPanel Latch
-
46293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
47517304105 Console Decal. White-White ModelConsole Decal. White-White Model
-
48517304103 RH Decal. White-White ModelRH Decal. White-White Model
-
49517304104 LH Decal. White-White ModelLH Decal. White-White Model
