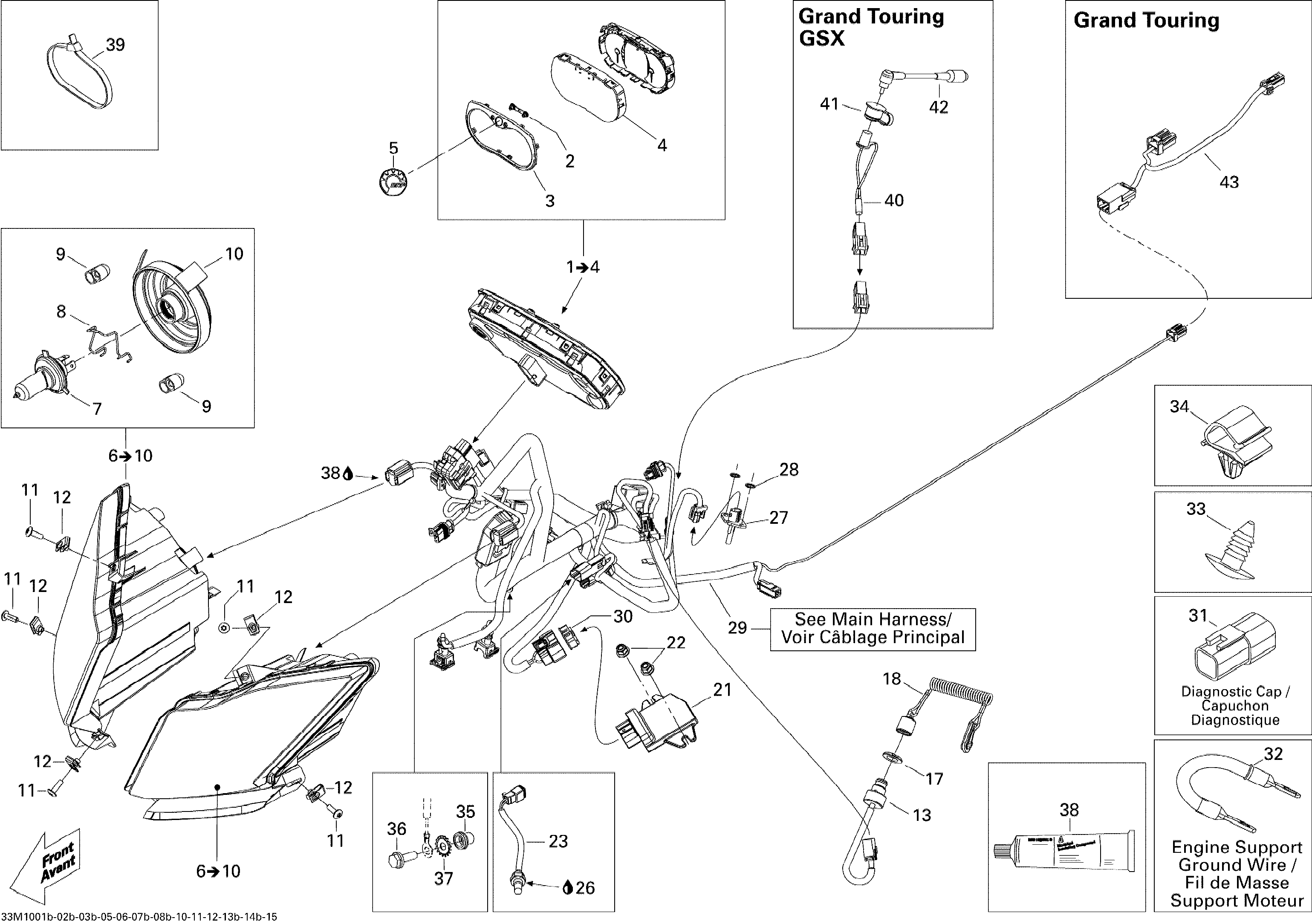

10- Electrical System 800R PTEK для BRP Ski-Doo MX Z X 800R PTEK - 2010
-
№АртикулНазвание
-
1515176954 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH Headlamp Ass'y. Includes 6 to 10RH Headlamp Ass'y. Includes 6 to 10
-
6517304195 LH Headlamp Ass'y. Includes 6 to 10LH Headlamp Ass'y. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13515176815 Dess SwitchDess Switch
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176936 DESS CapDESS Cap
-
21515176364 Voltage RegulatorVoltage Regulator
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23515176398 Temperature SensorTemperature Sensor
-
26293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
27515176366 Air Temperature SensorAir Temperature Sensor
-
28389804300 Push NutPush Nut
-
29515176833 Main Harness Ass'yMain Harness Ass'y
-
30515176681 LockLock
-
31515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
32515176358 Ground WireGround Wire
-
33414644300 DartDart
-
34515176795 ClipClip
-
35415107300 InsertInsert
-
36207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
37250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
39293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
39293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
39293750009 Tie-Rap 173 mmTie-Rap 173 mm
