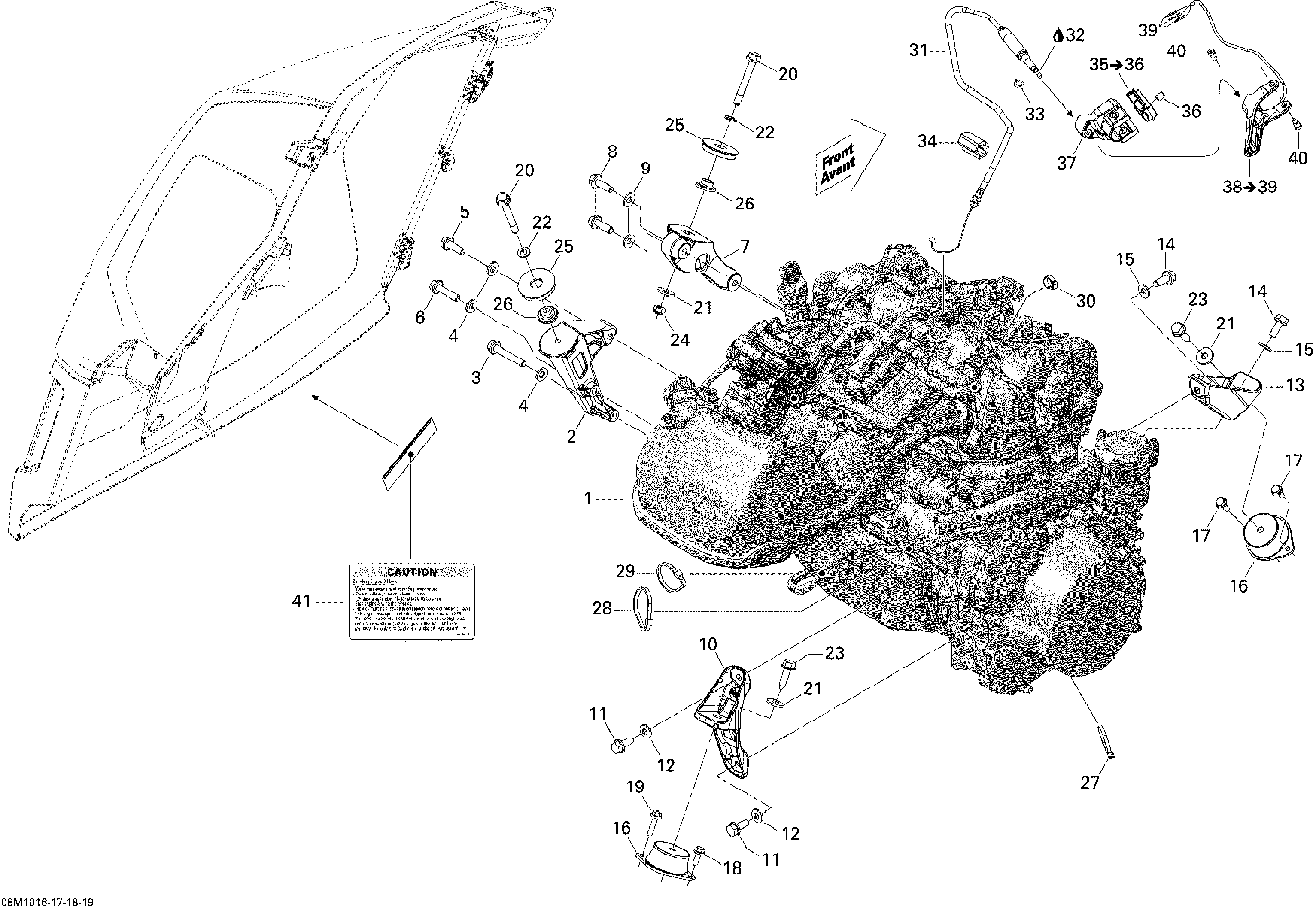

01- Engine ADRENALINE для BRP Ski-Doo Renegade Adrenaline 1200 - 2010
-
№АртикулНазвание
-
1420120302 Long Block 1203Long Block 1203
-
2512060231 Rear Support, PTORear Support, PTO
-
3207585086 Hex. Flanged Screw M8 X 50, Scotch GripHex. Flanged Screw M8 X 50, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7512060232 Front Support, PTOFront Support, PTO
-
8207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9234281474 Conical Spring Washer M8Conical Spring Washer M8
-
10512060233 Rear Support, MAGRear Support, MAG
-
11207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13512060234 Front Support, MAGFront Support, MAG
-
14207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16512060457 Rubber MountRubber Mount
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
20207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
21503183200 Washer, YellowWasher, Yellow
-
22250200008 Flat Washer 8 mmFlat Washer 8 mm
-
23250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
24232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
25512060244 StopperStopper
-
26512060285 SpacerSpacer
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30293650025 Oetiker Gear ClampOetiker Gear Clamp
-
31512060551 Throttle CableThrottle Cable
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33414274500 CirclipCirclip
-
34512060313 ProtectorProtector
-
35512060198 Upper Housing. Includes 35 to 36Upper Housing. Includes 35 to 36
-
36414440800 Set Screw M8 X 10Set Screw M8 X 10
-
37512060430 Lower HousingLower Housing
-
38512060466 Throttle Handle Ass'y. Includes 38 to 39Throttle Handle Ass'y. Includes 38 to 39
-
39515175232 Male TerminalMale Terminal
-
38512060468 Throttle Handle Ass'y. Includes 38 to 39Throttle Handle Ass'y. Includes 38 to 39
-
39515175232 Male TerminalMale Terminal
-
40732601143 Flanged ScrewFlanged Screw
-
41516003856 Caution Decal, Checking Engine Oil LevelCaution Decal, Checking Engine Oil Level
