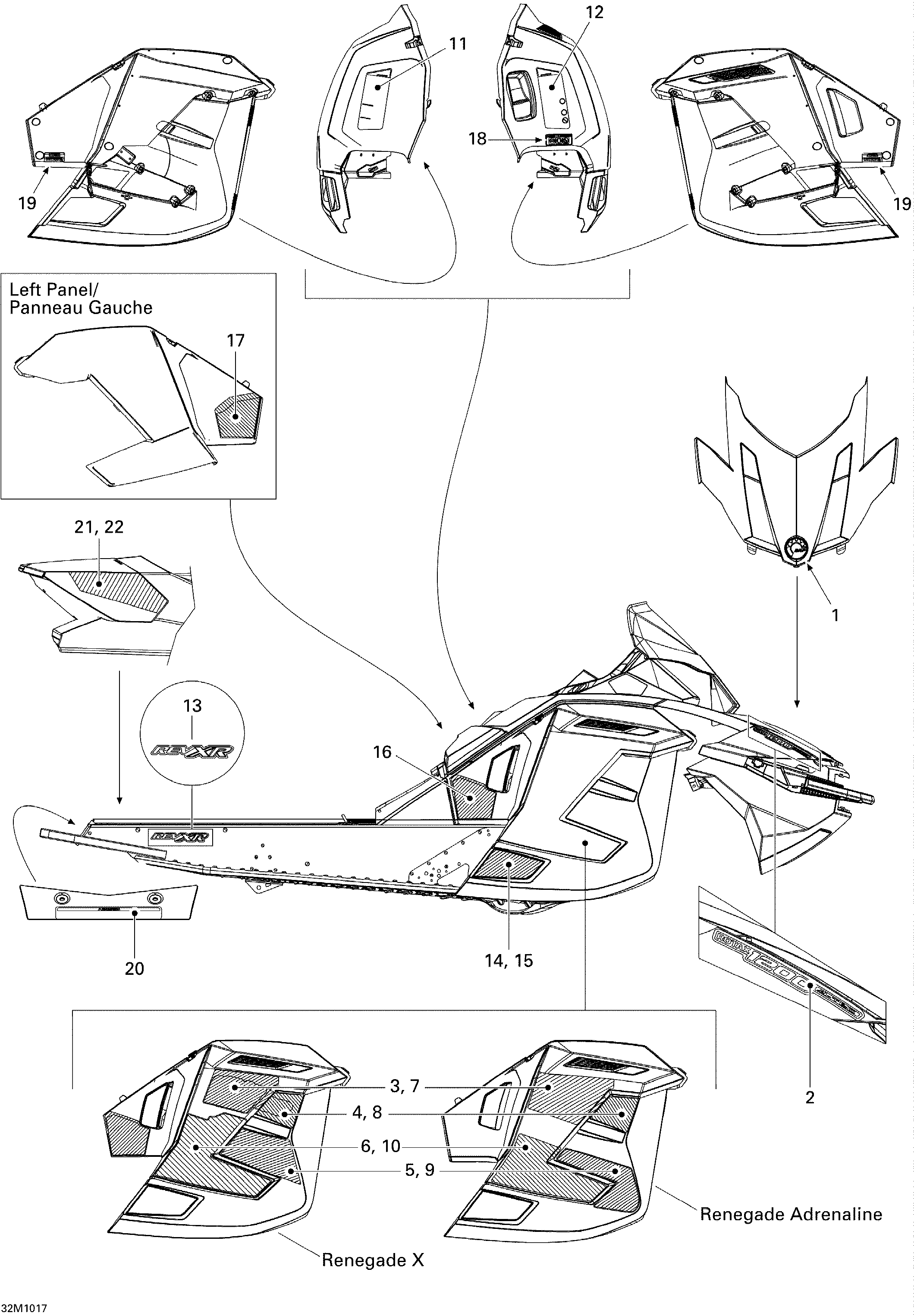

09- Decals Adrenaline для BRP Ski-Doo Renegade Adrenaline 1200 - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2516003648 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004067 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
4516004069 RH Front Upper Side DecalRH Front Upper Side Decal
-
5516004073 RH Front Side DecalRH Front Side Decal
-
6516004071 RH Side DecalRH Side Decal
-
7516004066 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
8516004068 LH Front Upper Side DecalLH Front Upper Side Decal
-
9516004072 LH Front Side DecalLH Front Side Decal
-
10516004070 LH Side DecalLH Side Decal
-
11516003788 Warning Decal, SecurityWarning Decal, Security
-
12516003790 Warning Decal, SecurityWarning Decal, Security
-
13516003783 Decal REV XRDecal REV XR
-
16516004065 RH Knee DecalRH Knee Decal
-
17516004064 LH Knee DecalLH Knee Decal
-
19516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
20516003578 Warning Decal, TrackWarning Decal, Track
-
21516004051 RH Cover DecalRH Cover Decal
-
22516004050 LH Cover DecalLH Cover Decal
