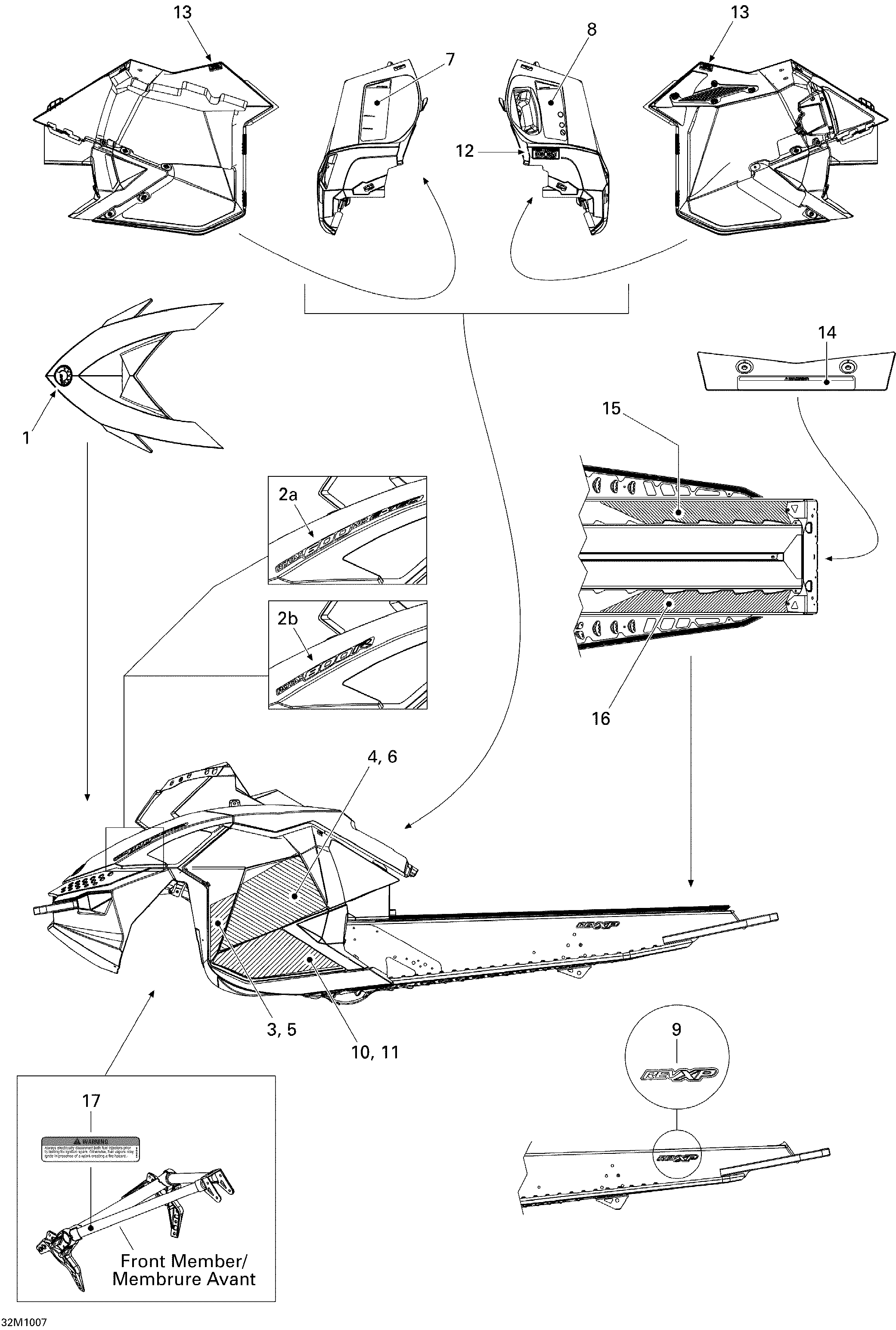

09- Decals 800R PTEK BC для BRP Ski-Doo Renegade BackCountry X 800R PTEK - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2b516003440 Hood Decal, Rotax 800RHood Decal, Rotax 800R
-
3516004042 RH Front Side DecalRH Front Side Decal
-
4516004018 RH Side DecalRH Side Decal
-
5516004041 LH Front Side DecalLH Front Side Decal
-
6516004017 LH Side DecalLH Side Decal
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003989 Frame Decal, REV XPFrame Decal, REV XP
-
10516004258 RH Lower DecalRH Lower Decal
-
11516004257 LH Lower DecalLH Lower Decal
-
12516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
13516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
14516003578 Warning Decal, TrackWarning Decal, Track
-
15516003860 RH Frame DecalRH Frame Decal
-
16516003859 LH Frame DecalLH Frame Decal
