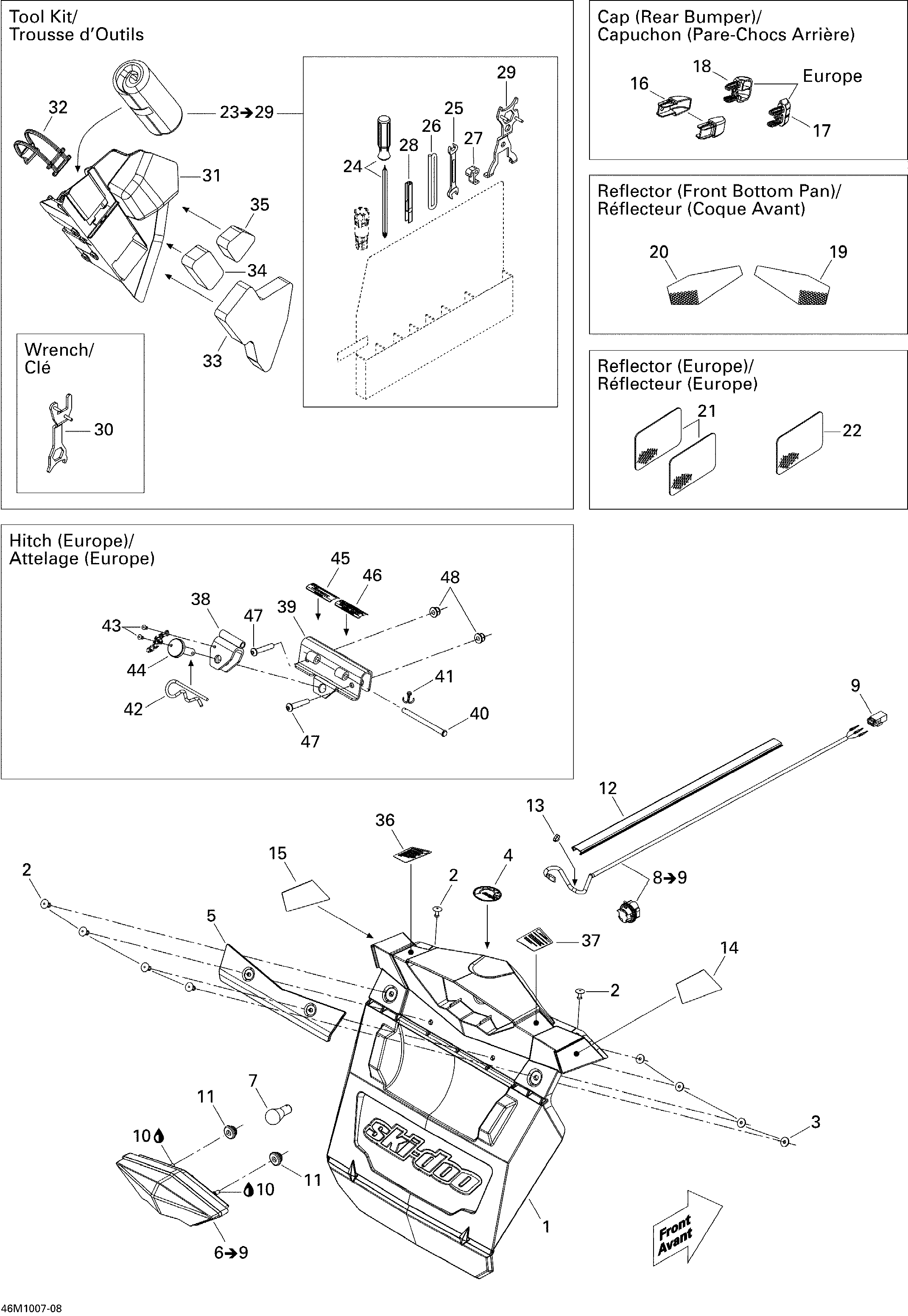

09- Utilities 800R PTEK BC для BRP Ski-Doo Renegade BackCountry X 800R PTEK - 2010
-
№АртикулНазвание
-
1520000702 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219902544 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000679 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000758 BulbBulb
-
8520000680 Wiring Harness. Inclus 8 to 9Wiring Harness. Inclus 8 to 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11705003666 Rubber GrommetRubber Grommet
-
12520000829 Radiator TrimRadiator Trim
-
13293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
14520000706 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
14520000716 RH Rear ReflectorRH Rear Reflector
-
15520000707 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
15520000717 LH Rear ReflectorLH Rear Reflector
-
16520000840 CapCap
-
17520000965 RH Cap. EuropeRH Cap. Europe
-
18520000964 LH Cap. EuropeLH Cap. Europe
-
19520000718 RH Front ReflectorRH Front Reflector
-
20520000719 LH Front ReflectorLH Front Reflector
-
21520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
22415037900 Reflector, White. EuropeReflector, White. Europe
-
23529000045 Tool Kit. Inclus 23 to 29Tool Kit. Inclus 23 to 29
-
24529000004 Screw DriverScrew Driver
-
25529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
26412500200 Starter Rope, MeterStarter Rope, Meter
-
27529019400 Starter GripStarter Grip
-
28529035501 Spacing ToolSpacing Tool
-
29520000956 Wrench SuspensionWrench Suspension
-
30520000721 WrenchWrench
-
31520000842 Tool Kit RackTool Kit Rack
-
32520000528 LatchLatch
-
33520000743 FoamFoam
-
34520000753 FoamFoam
-
35520000754 FoamFoam
-
36520000695 Warning Decal, SecurityWarning Decal, Security
-
37520000697 Warning Decal, LoadWarning Decal, Load
